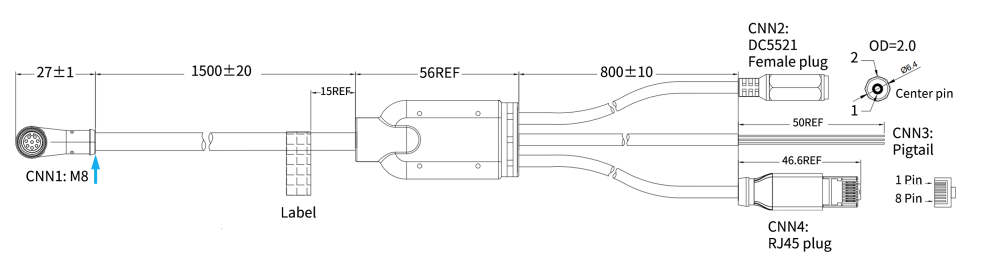

1-to-3 splitter cable
The JT128 comes with a 1-to-3 splitter cable (indoor rating) and a power supply

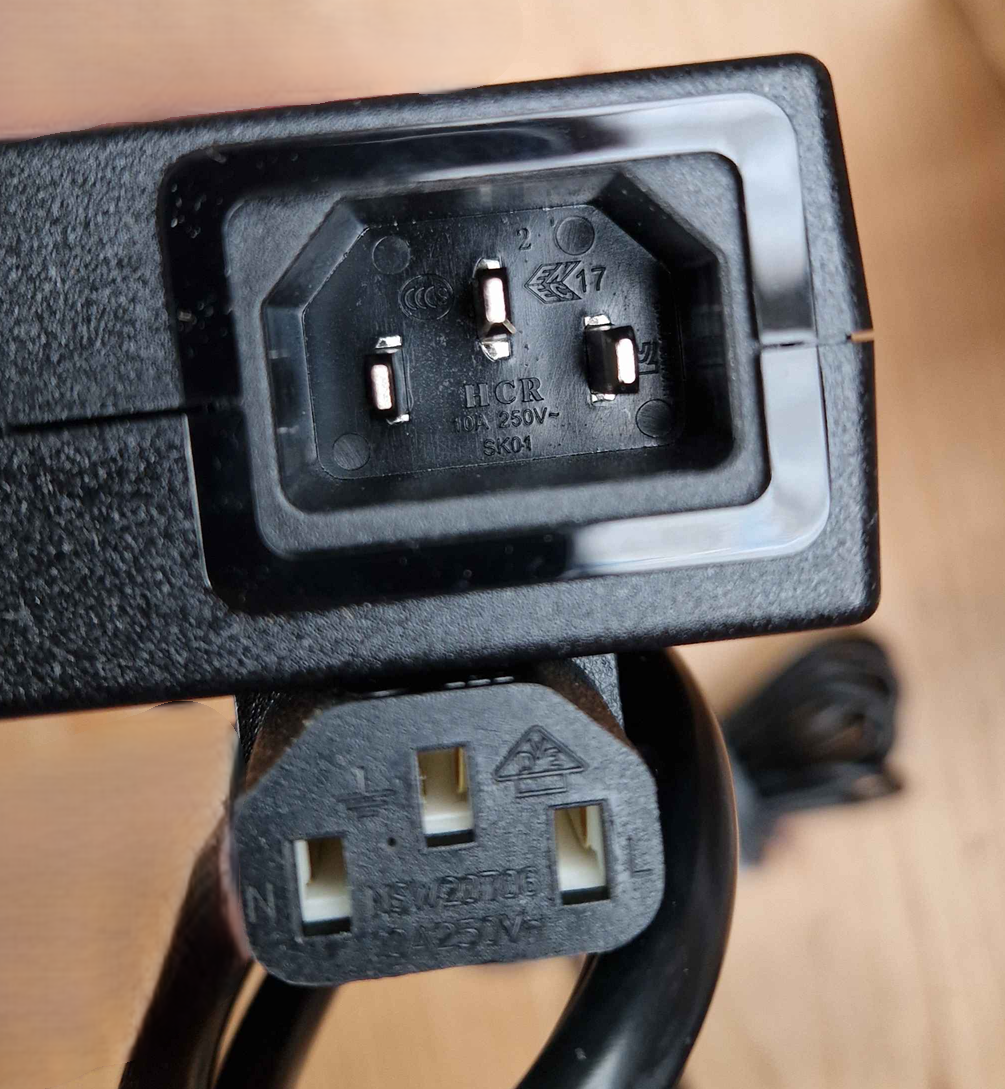

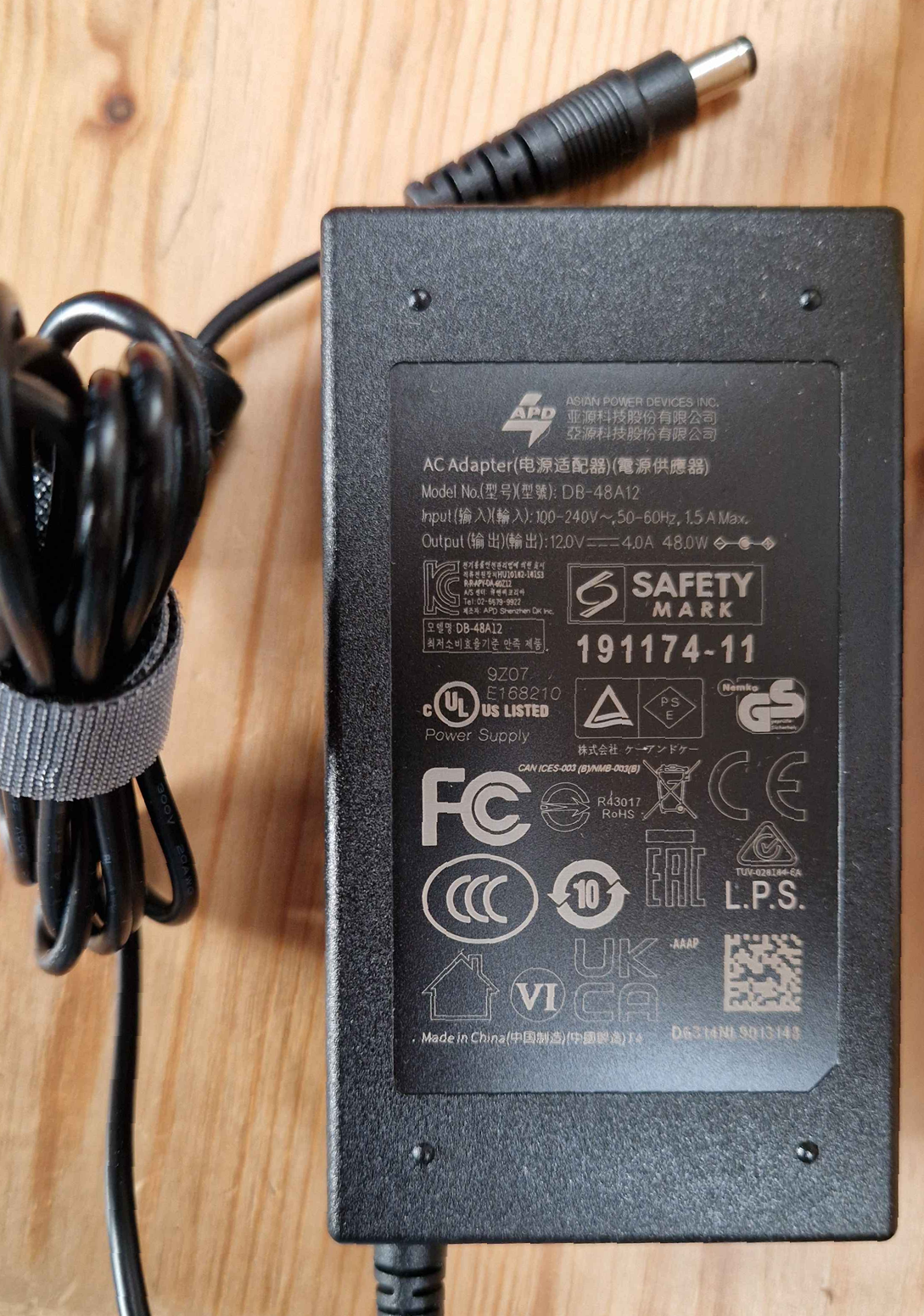

Power supply
Characteristic | Value |
Power port | CNN2 “jack”, (female plug is DC5521) |
Specification | 12V - 4A / 48W |
Polarity | Center pin positive (+), outer barrel negative/ground |
Mount
This mount is compatible with the Robosense Airy and Hesai JT128 sensors
Two modes are available
Permanent : Use the three holes and the screws provided to screw it to any flat surface
Temporary : Use our mini magic arm and a safety sling to hang it to any fixture
Compatible magic arms

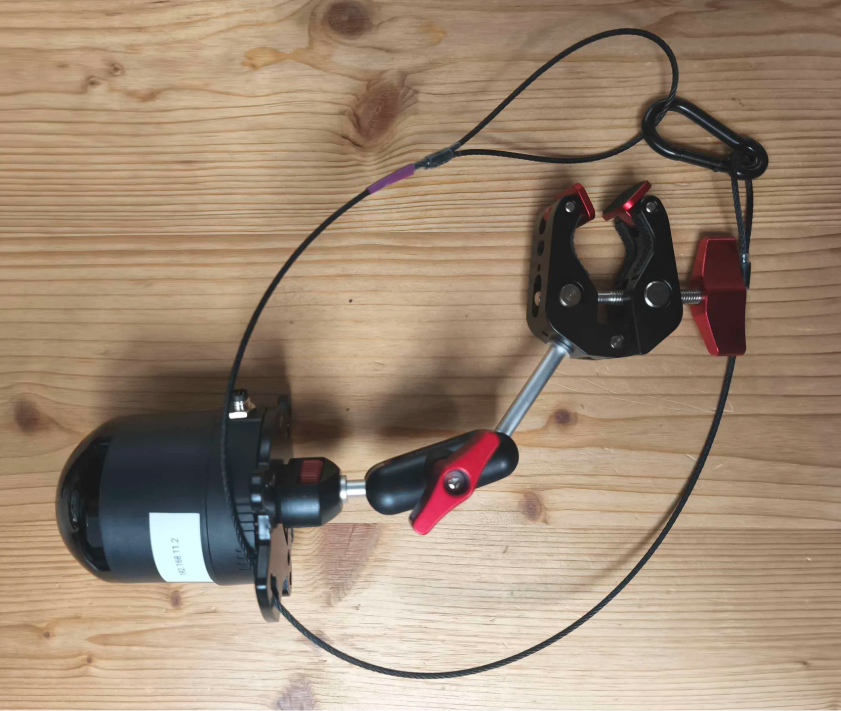

Temporary/event mode
with
Augmenta mini magic arm
Note: Safety sling not provided !
Augmenta mini magic arm
Note: Safety sling not provided !

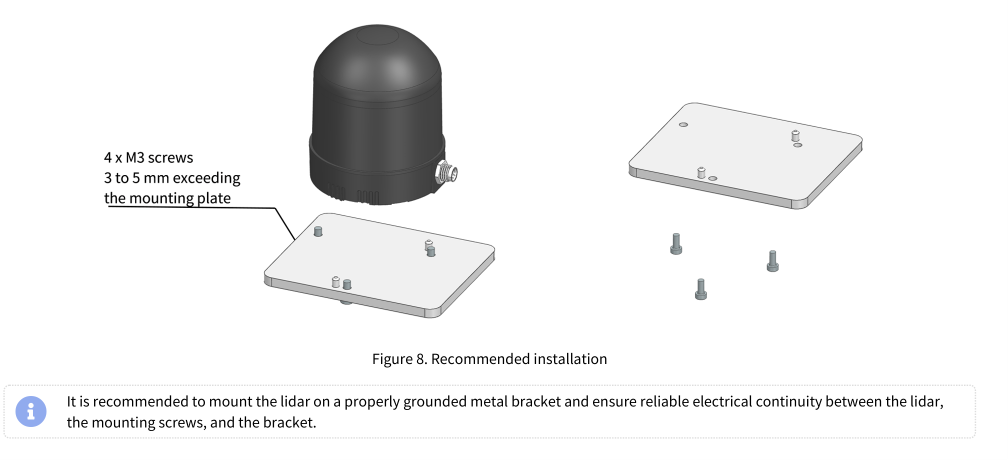

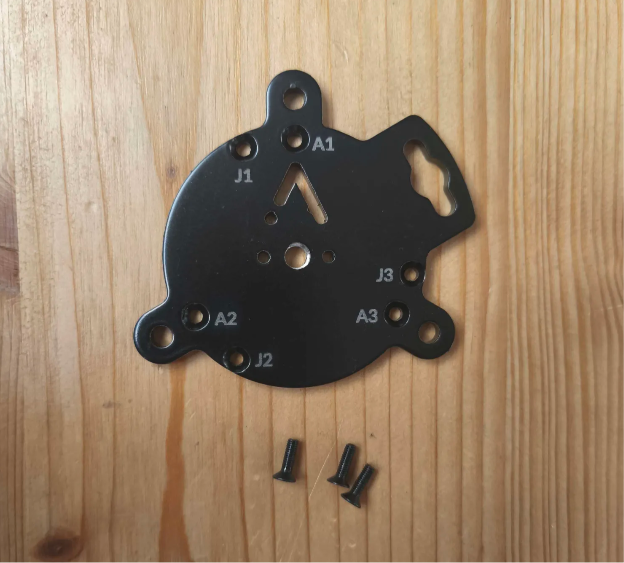

Mounting instructions
J1 J2 J3 : Screw for Hesai JT128
A1 A2 A3 : Screws hole for Robosense Airy
Please refer to the photos for correct mounting.

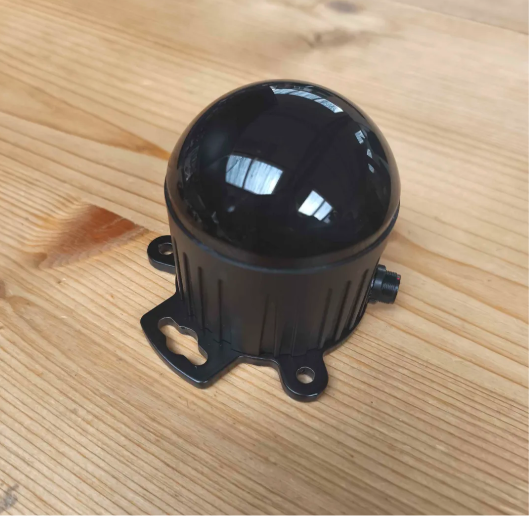

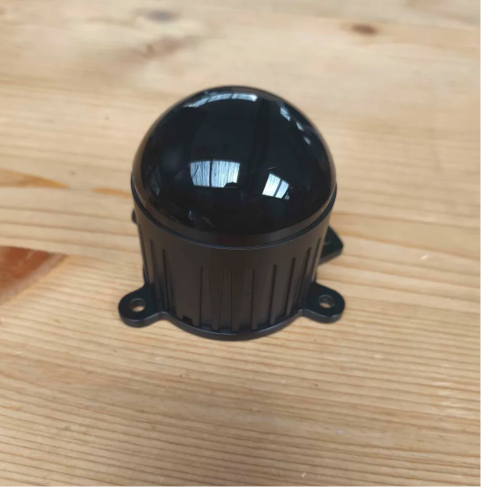

Robosense Airy

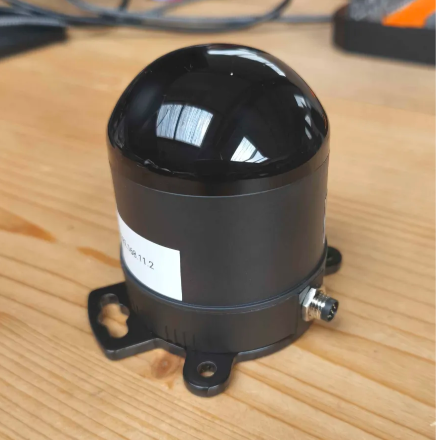

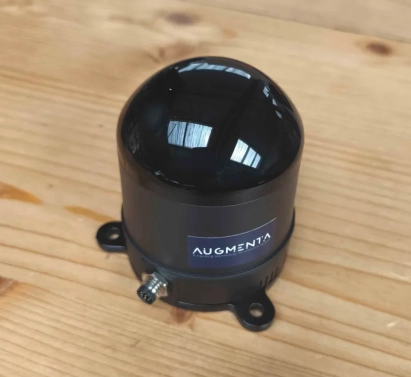

Hesai JT128
