Server network configuration

For advanced user : In the case that you may have changed the wrong network parameters and want to reset it back to factory reset, or just want to check that your server has the correct network configuration. Here is a step by step tutorial to configure your server network configuration.

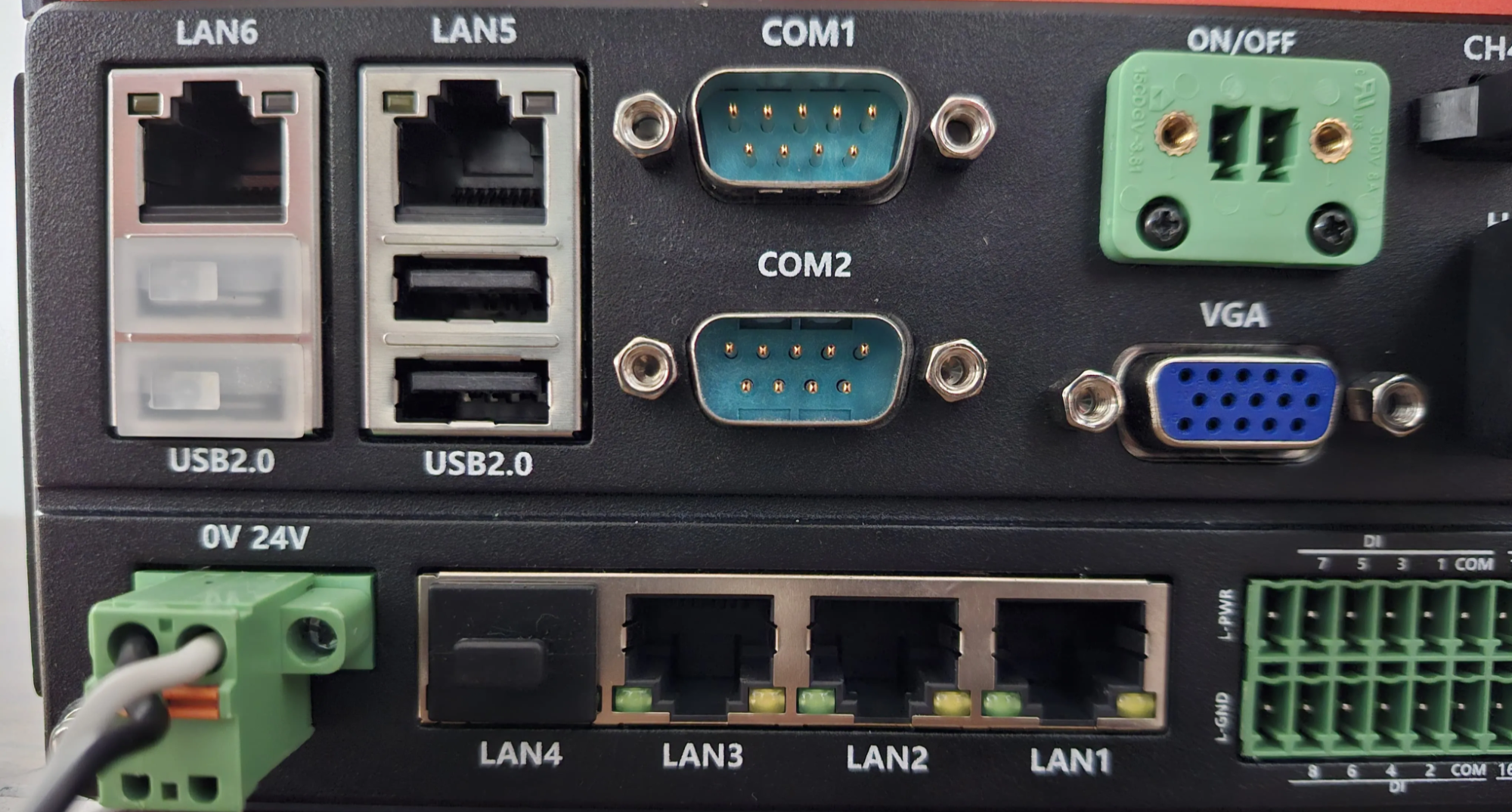

Port (portable)	Network card	IP address	Mask	Gateway
LAN1	enp4s0f0	192.168.11.1	255.255.255.252
LAN2	enp4s1f0	192.168.11.5	255.255.255.252
LAN3	enp4s2f0	192.168.11.9	255.255.255.252
LAN4	enp4s3f0	192.168.11.13	255.255.255.252
LAN5

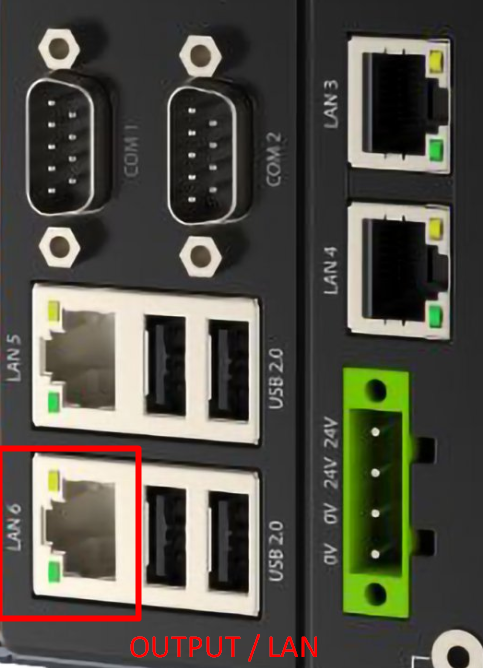

LAN6 (output)		dhcp	dhcp	dhcp

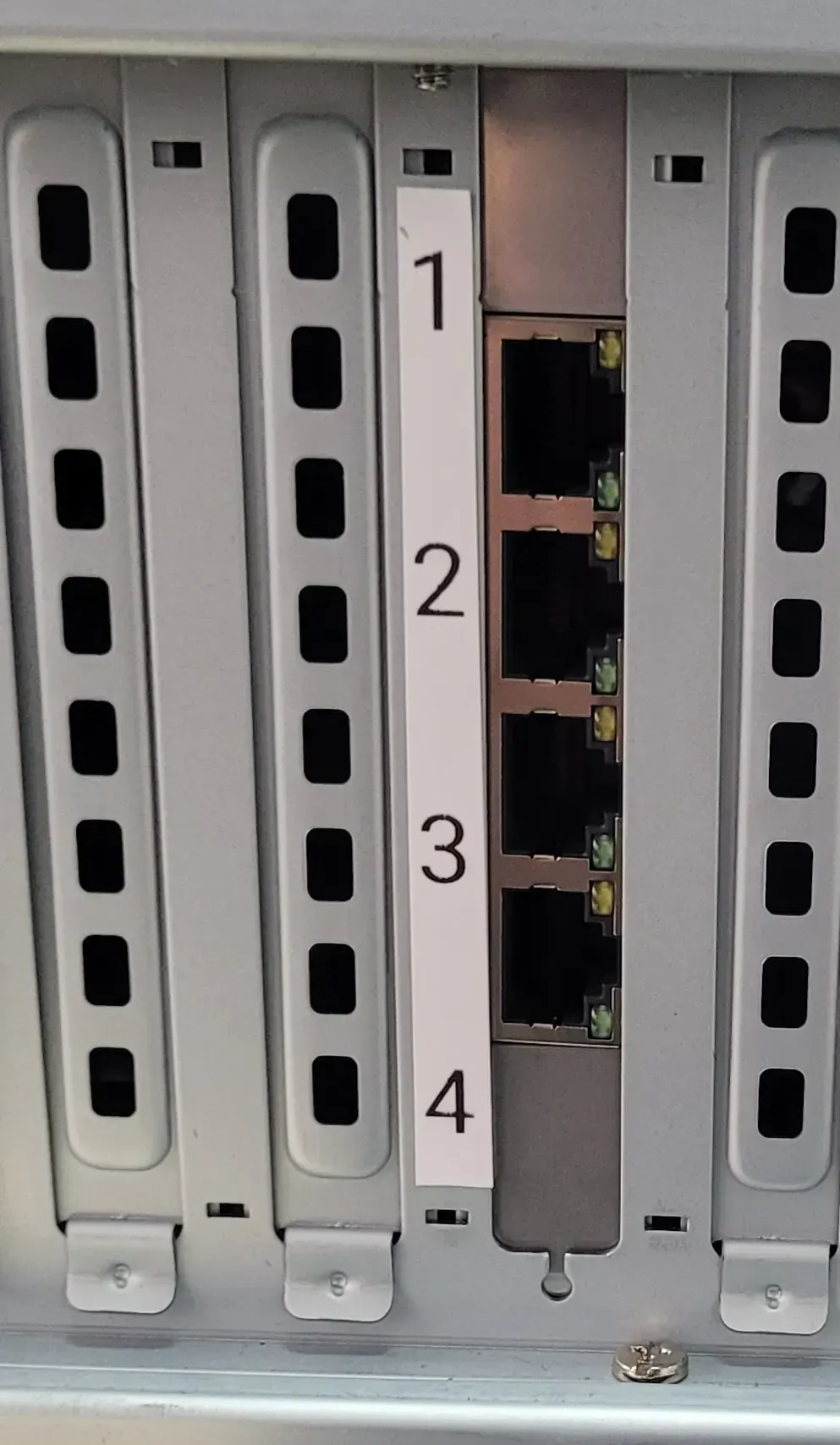

port (pro4)	Network card	IP address	Mask	Gateway
1	enp4s0f0	192.168.11.1	255.255.255.252
2	enp4s1f0	192.168.11.5	255.255.255.252
3	enp4s2f0	192.168.11.9	255.255.255.252
4	enp4s3f0	192.168.11.13	255.255.255.252
Motherboard port		dhcp	dhcp	dhcp

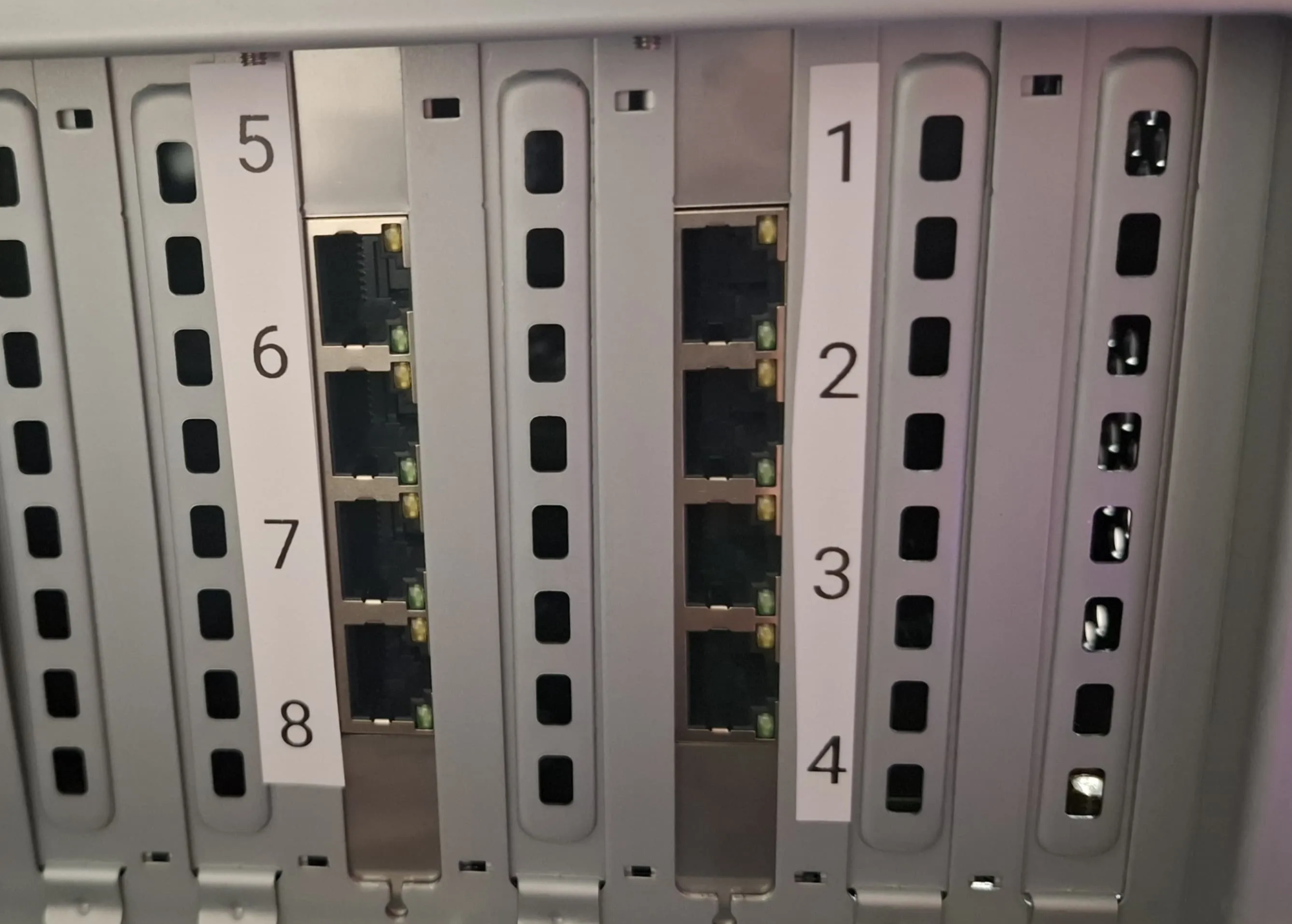

port (pro8)	Network card	IP address	Mask	Gateway
1	enp4s0f0	192.168.11.1	255.255.255.252
2	enp4s1f0	192.168.11.5	255.255.255.252
3	enp4s2f0	192.168.11.9	255.255.255.252
4	enp4s3f0	192.168.11.13	255.255.255.252
5	enp7s0f0	192.168.11.17	255.255.255.252
6	enp7s1f0	192.168.11.21	255.255.255.252
7	enp7s2f0	192.168.11.25	255.255.255.252
8	enp7s3f0	192.168.11.29	255.255.255.252
Motherboard port		dhcp	dhcp	dhcp

Server network configuration

Server network configuration

How to apply the configuration
