POE Splitter
Mount

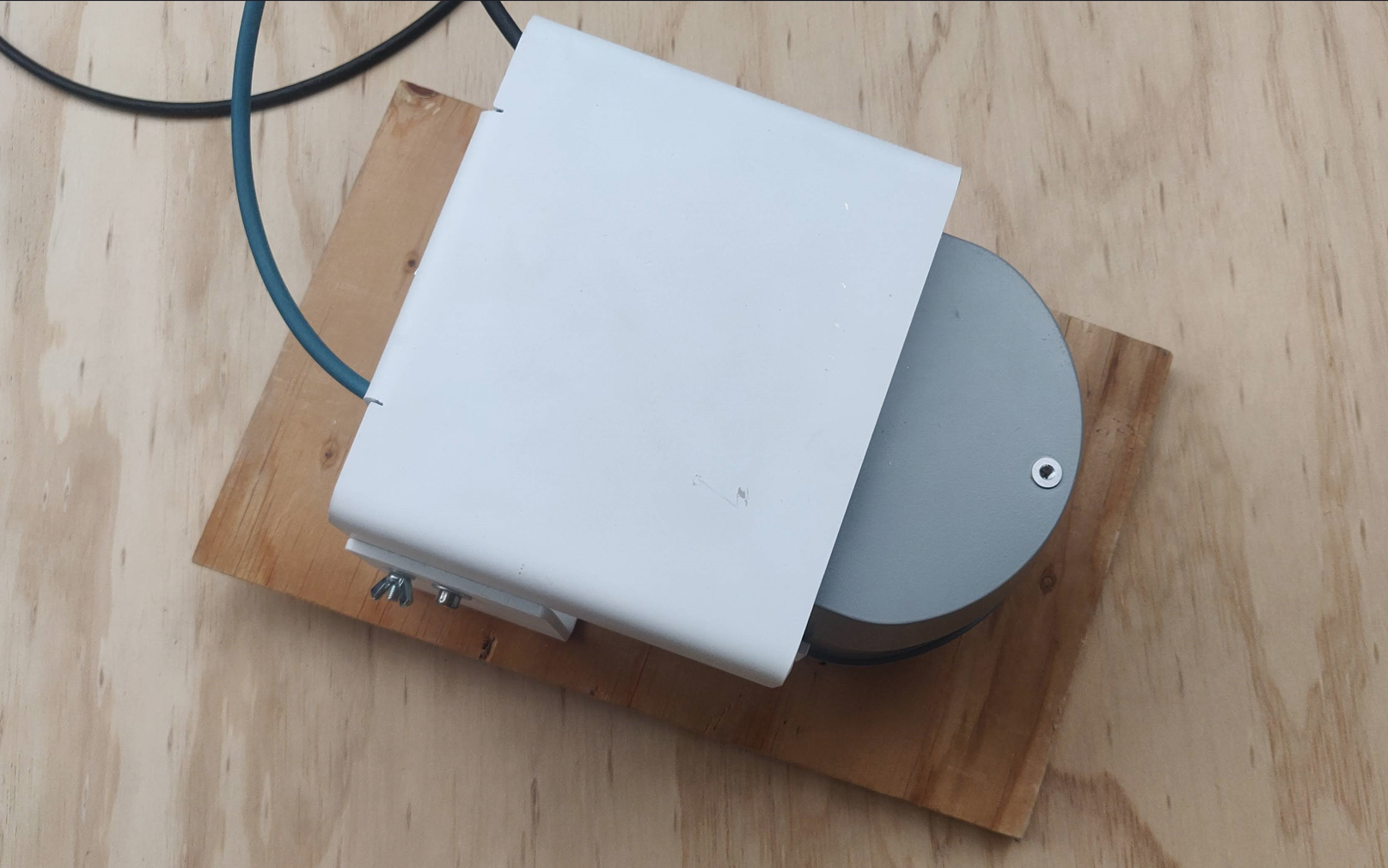

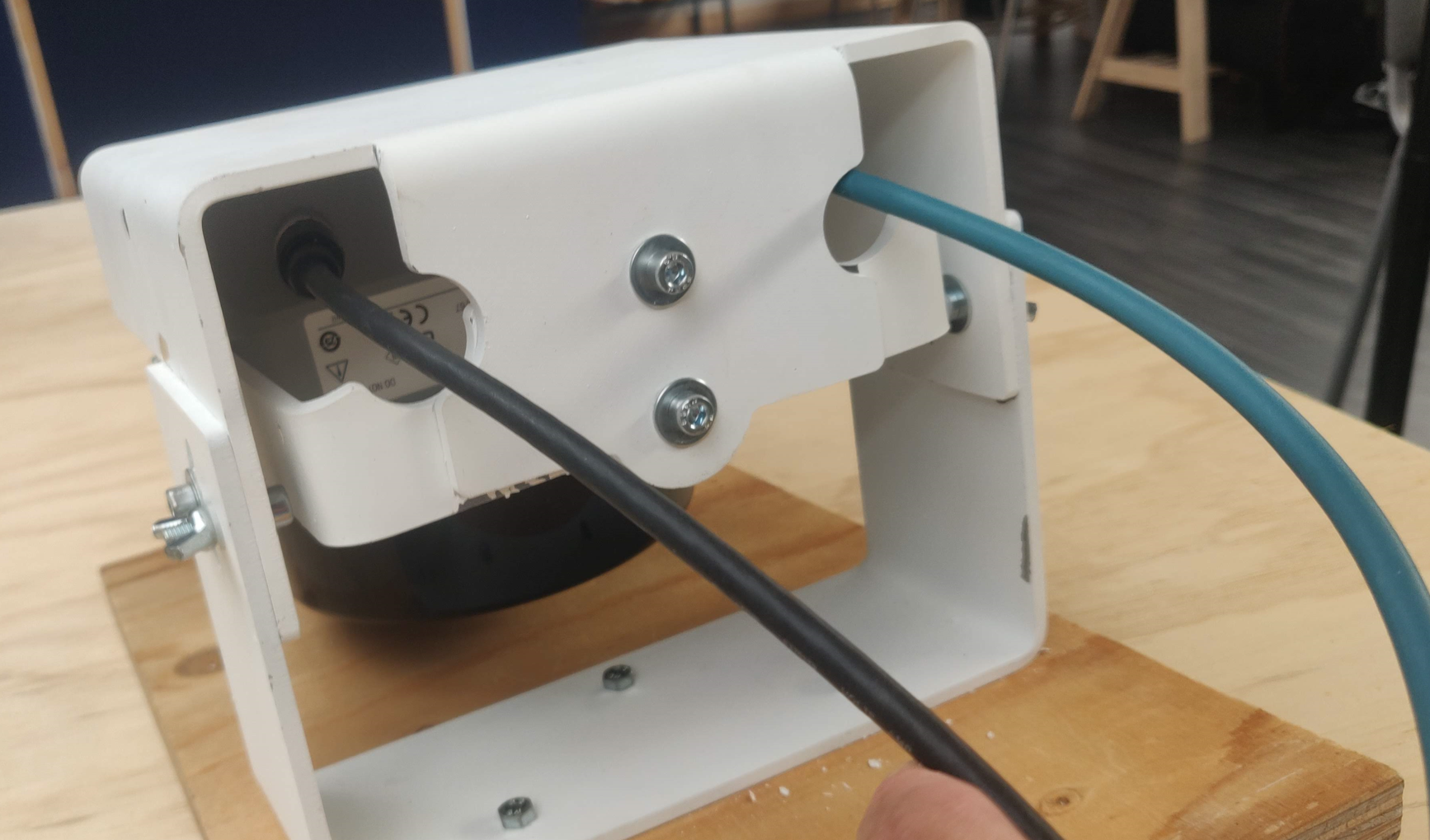

Augmenta custom mount for precision tuning

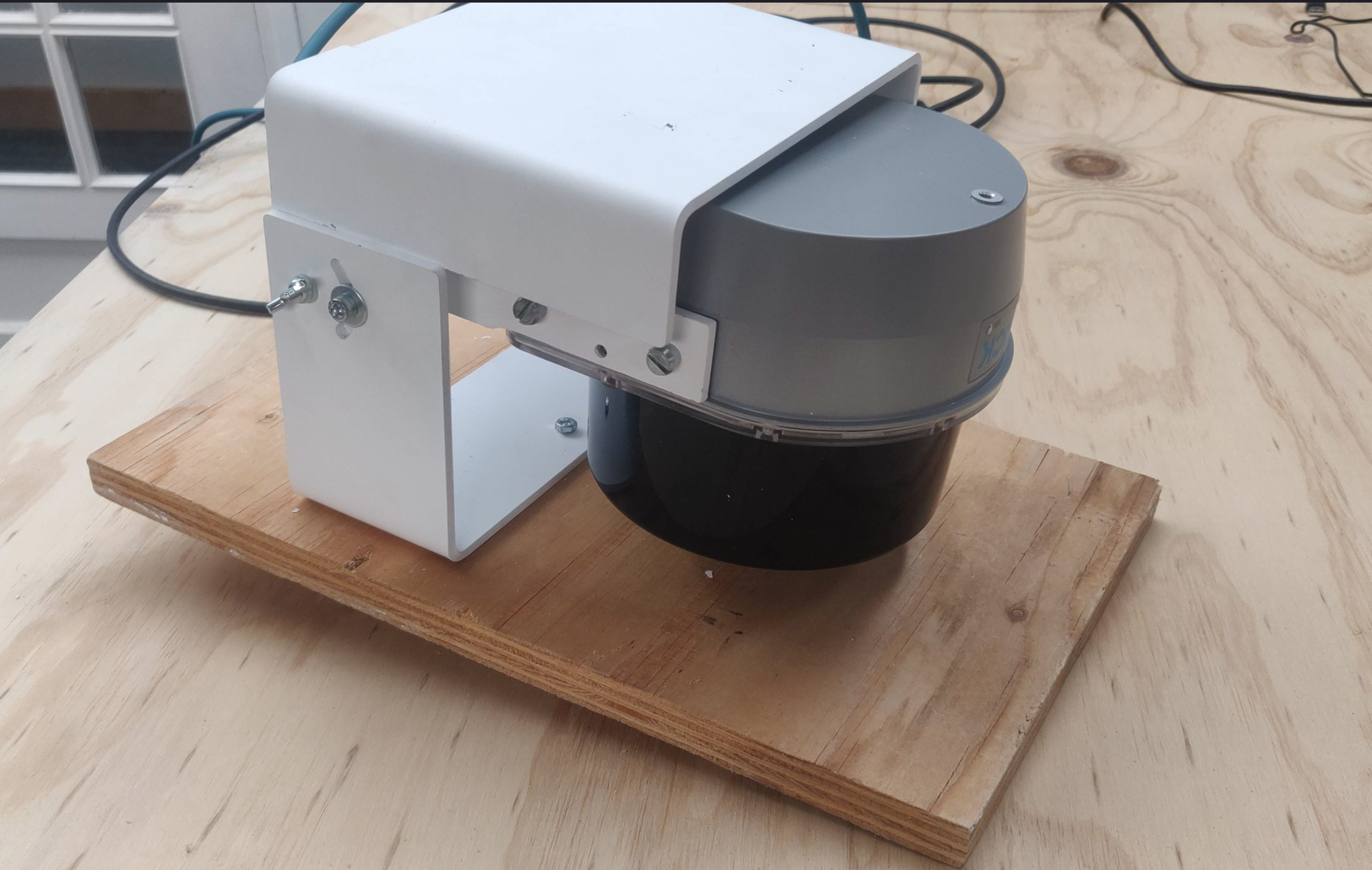

This is a 2 axis tuning mount designed to align correctly the LiDAR parallel to the wall

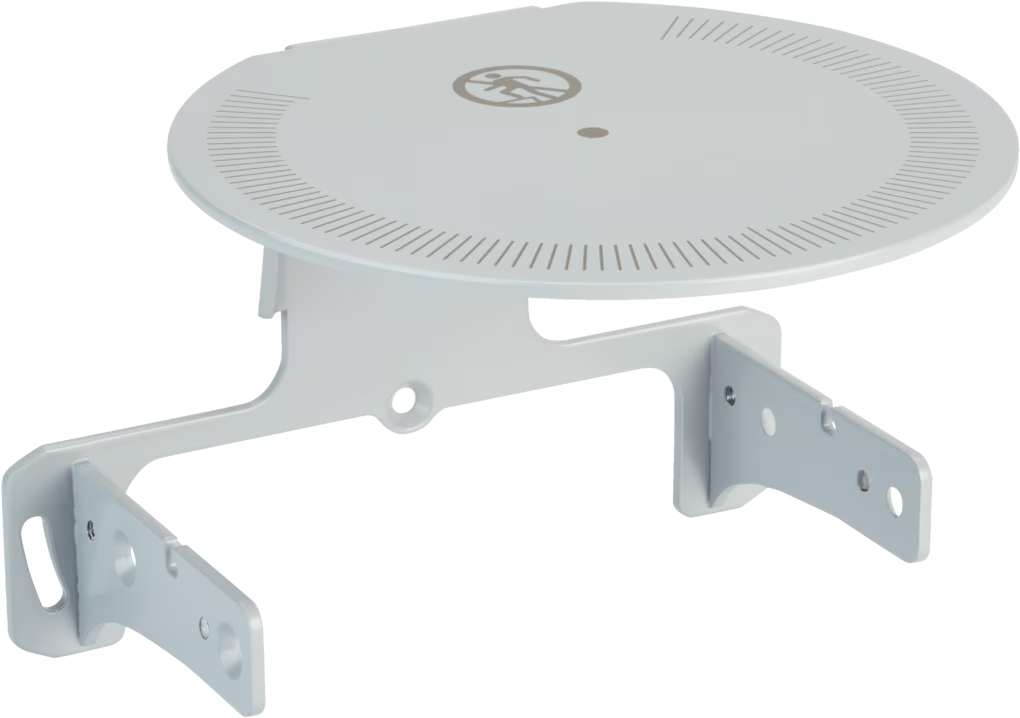

SICK mounting kit 1A

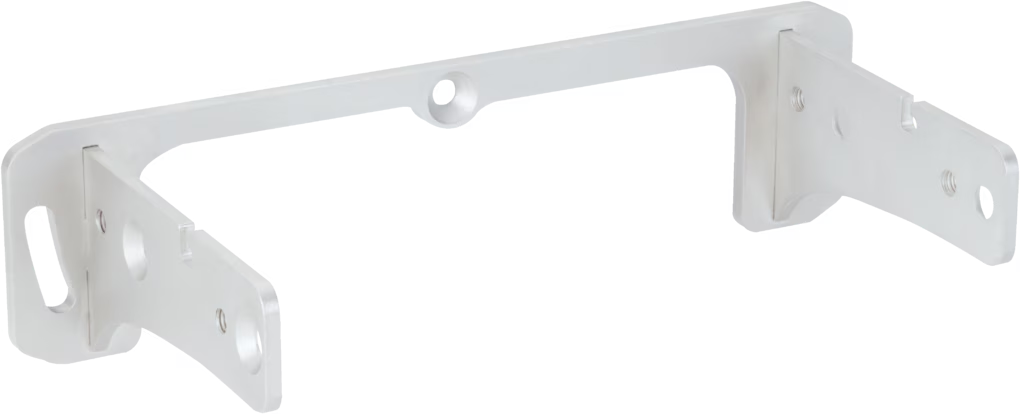

SICK mounting kit 1B
Static kit with protection

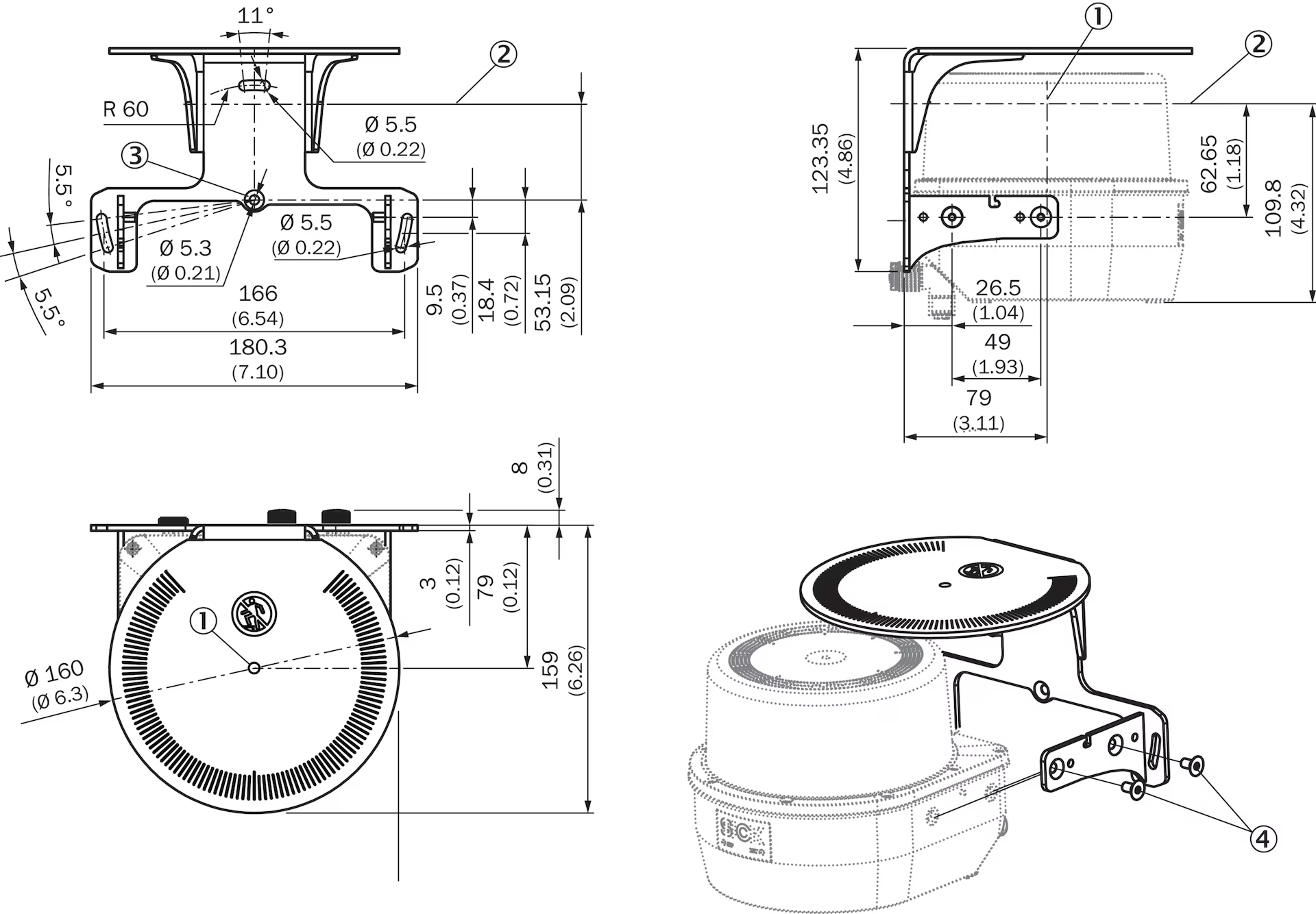

Dimensional drawing
Dimensions in mm (inch)
① Scanning axis 0°
② Scanning plane 0°
③ Axis of rotation
④ 4 countersunk head screws M5 (included in delivery), max tightening torque 5.0 Nm
