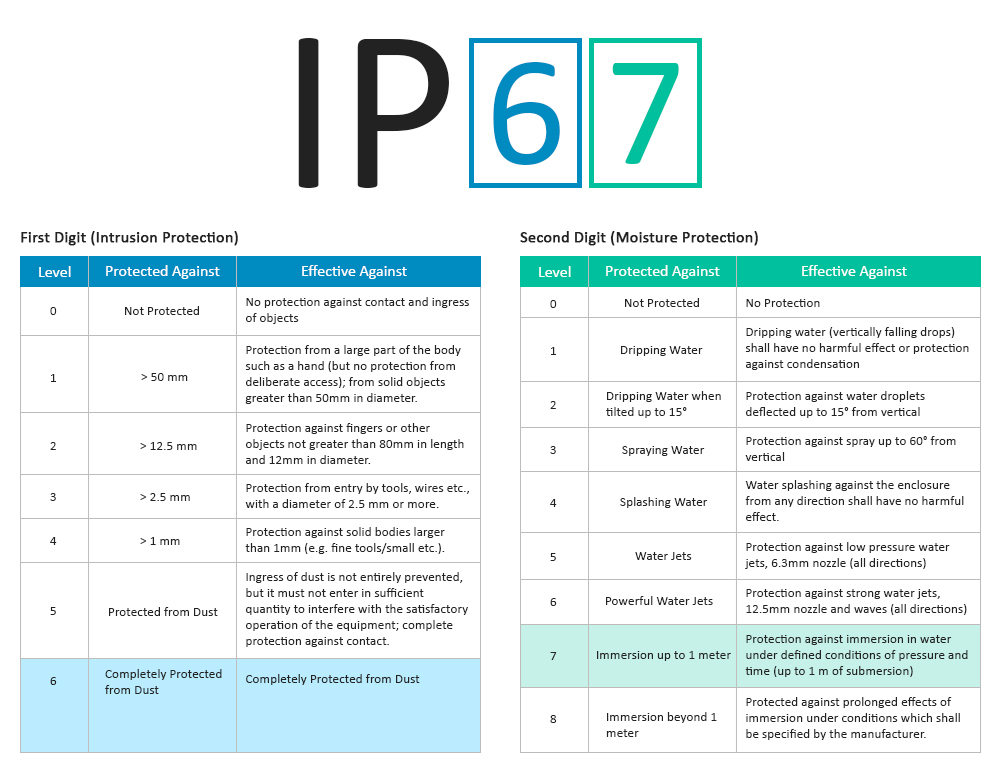

The Visionary T-mini is IP67 rated, this means you can using indoor or outdoor with specific dust and water conditions.
To use the Visionary T-mini in such conditions, you need to use IP67 cable as well.
Operating specification
Characteristic | Value |
Rating | IP67 |
Protection class | III |
Vibration resistance | IEC 60068-2-6:2008, IEC 60068-2-64:2008 |
Shock resistance | IEC 60068-2-27:2008 |
Electromagnetic compatibility | IEC 61000-6-4:2018 / EN IEC 61000-6-4:2019, IEC 61000-6-2:2005 / EN 61000-6-2:2005 /
IEC 61000-6-2:2016 / EN IEC 61000-6-2:2019 |
Ambient operating temperature | –10 °C … +50 °C |
Storage temperature | –20 °C … +80 °C |
After a warm-up time of 45 minutes (at ≥ −10 °C) the sensor can also be operated at ambient temperatures from −20 °C.
Even if the sensor can withstand rain and different outdoor conditions, we recommend to build a “roof protection” above the sensor to prevent :
- External shock (risk of moving or damaging the sensor)
- Overheating (from sustained sun exposition)
Cables
Use IP67 extender cables for outdoor use :
- IP67 M12-8p network extender
- IP67 M12-8p A-coded power extender
Then the indoor accessories can be used in the indoor technical booth
