Characteristic | Value |

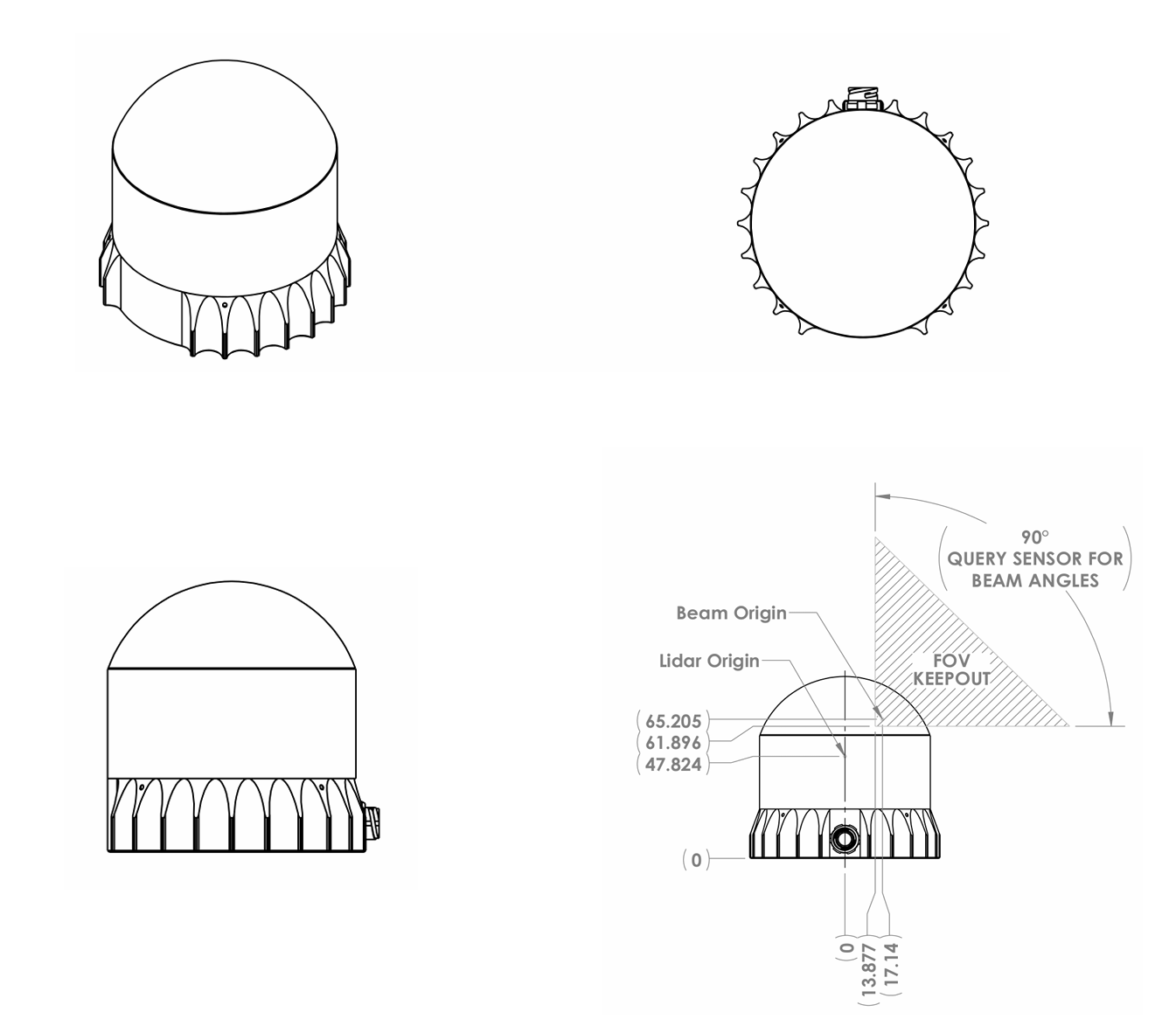

Size | Diameter : 87mm
Height :
• Without baseplate: 85.27 mm
• With baseplate: 107.77 mm |
Weight | 470g |

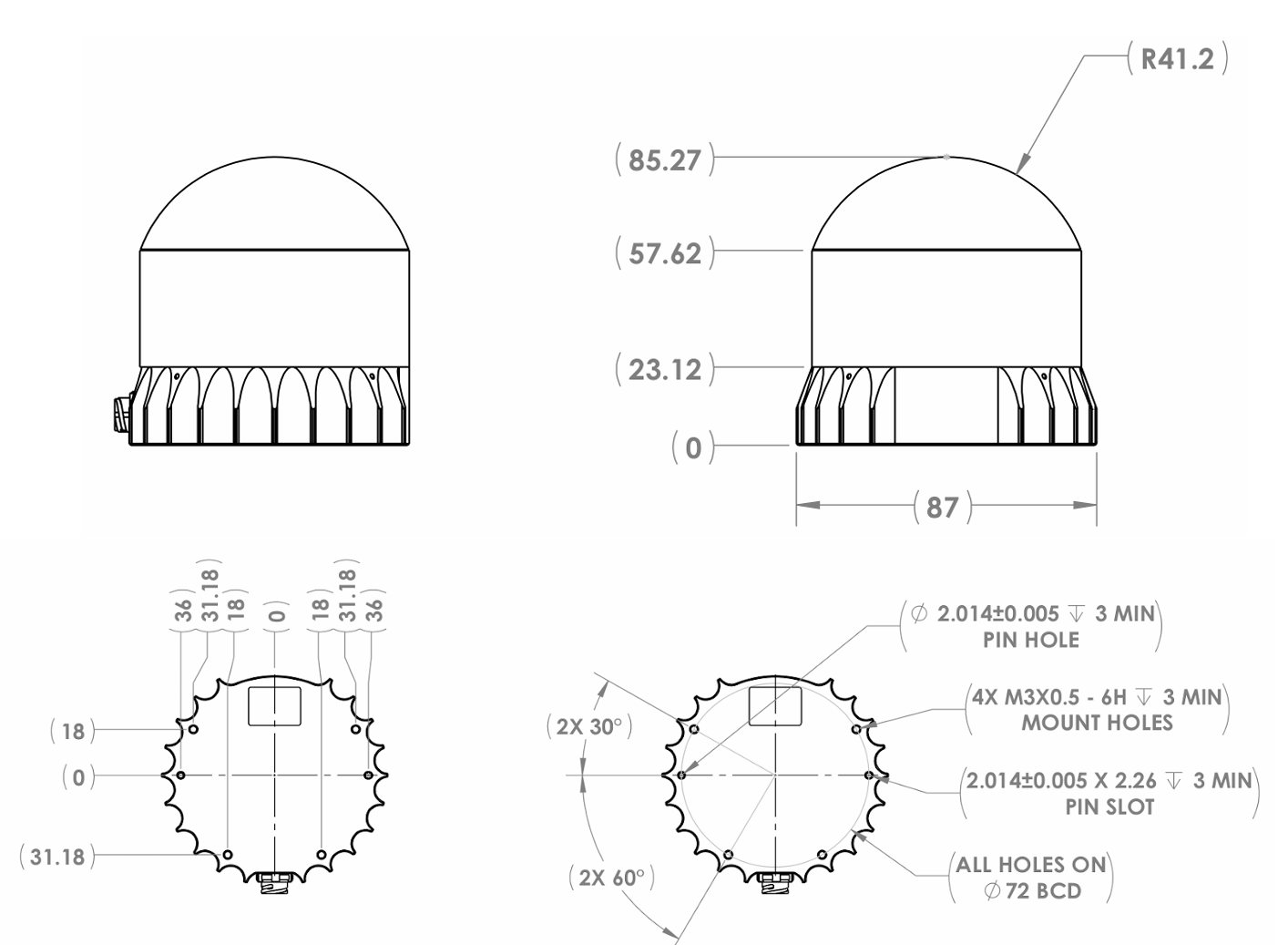

Mounting bottom | 4x M3 screws, 2x locating 2 mm pin holes |
Optical specifications
Characteristic | Value |
Field of View (FoV) | 180° x 360° |
Max number of channels | 128 |
Max resolution per channel | 2048 |
Max framerate | 20Hz |
Profiles* | r8
4096 @ 10 Hz - 524,288 pts/frame
2048 @ 20 Hz - 262,144 pts/frame
r7
2048 @ 10 Hz - 262,144 pts/frame
1024 @ 20 Hz - 131,072 pts/frame |
Max range for human tracking | 15m* |
Ranging technology | LiDAR |
Wavelength | 865 nm |
Ingress protection | IP68, IP69K |
Operating temperature | -40° to +60° |
* Single return mode data
Electrical specifications
Characteristic | Value |
Max power rating | 14 - 20W / 16W nominal |
Startup peak | 28 W peak if operating at -40 °C |
Operating Voltage | 9.5 V - 51 V |
Power over Ethernet (PoE) capable | No |
