Characteristic | Value |
Size | Diameter : 87 mm
Height
• Without cap: 58.35 mm
• With thermal cap: 74.2 mm |
Weight | Without cap : 430 g
With radial cap : 502 g
With halo cap : 522 g |

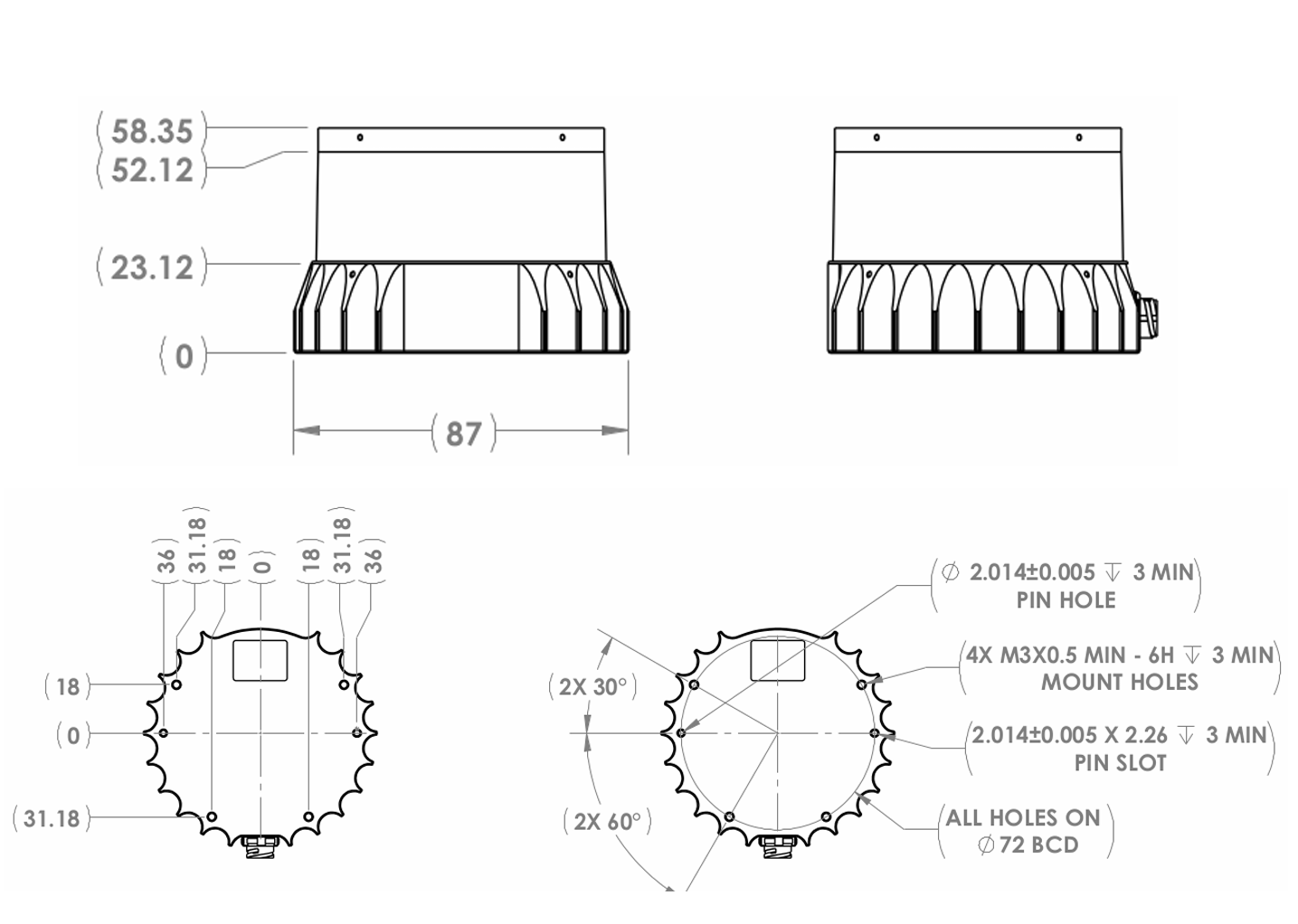

Mounting bottom | Bottom: 4x M3 screws, 2x locating 2 mm pin holes

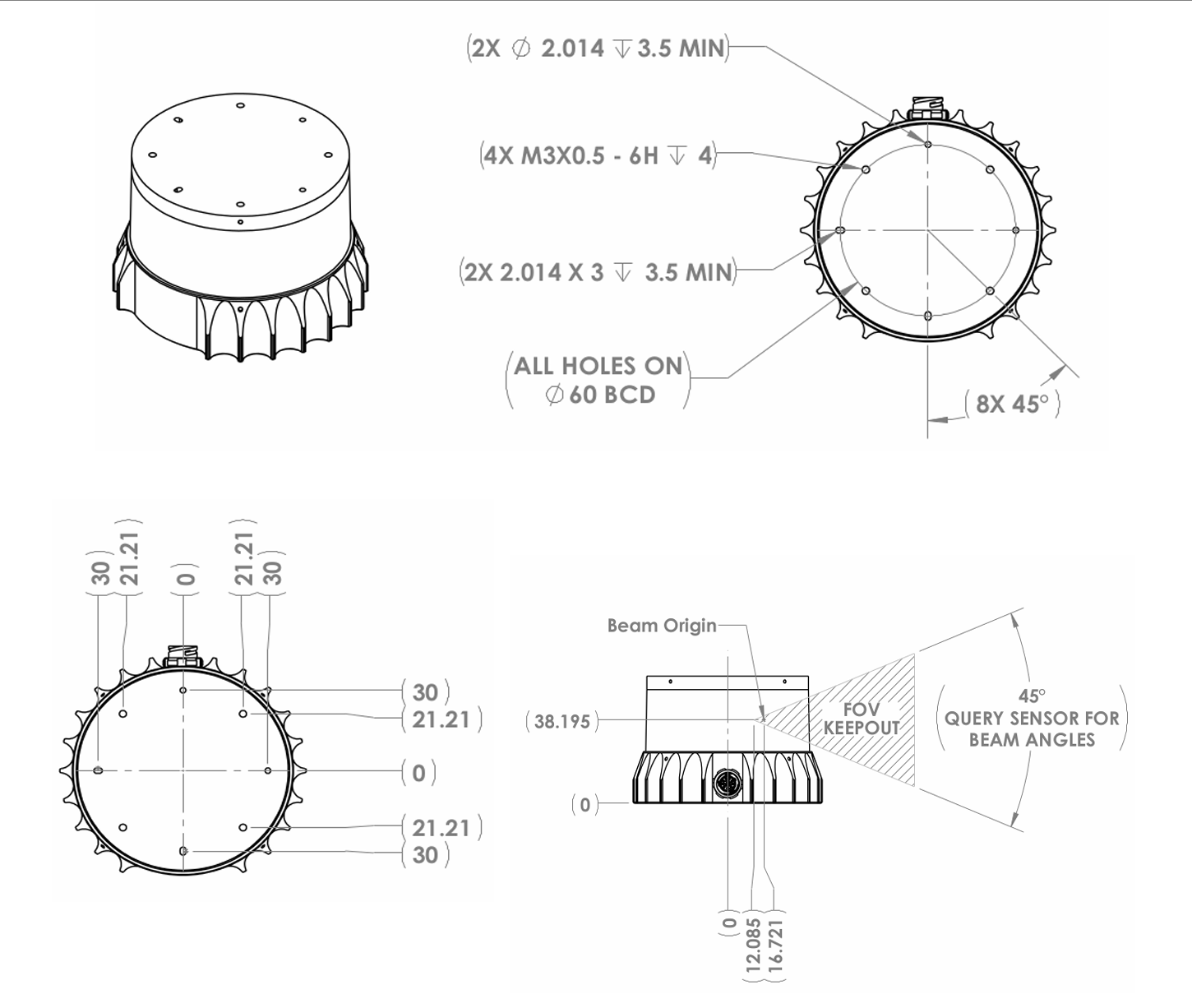

Top: 4x M3 screws, 4x locating 2 mm pin holes, 1x M6 screw |
Optical specifications
Characteristic | Value |
Field of View (FoV) | 45° x 360° |
Max number of channels | 128 |
Max resolution per channel | 2048* |
Max framerate | 20Hz* |
Profiles | 1024 @ 20 Hz
2048 @ 10 Hz* |
Max range for human tracking | 20m* |
Ranging technology | LiDAR |
Wavelength | 865 nm |
Ingress protection | IP68, IP69K |
Operating temperature | -40 °C to +60 °C (with mount) |
* At 10m+ high, we recommend to use only the profile 2048@10Hz for people tracking
Electrical specifications
Characteristic | Value |
Max power rating | 14 - 20W / 16W nominal |
Startup peak | 28 W peak if operating at -40 °C |
Operating Voltage | 9.5 V - 51 V |
Power over Ethernet (PoE) capable | No |
