Mount

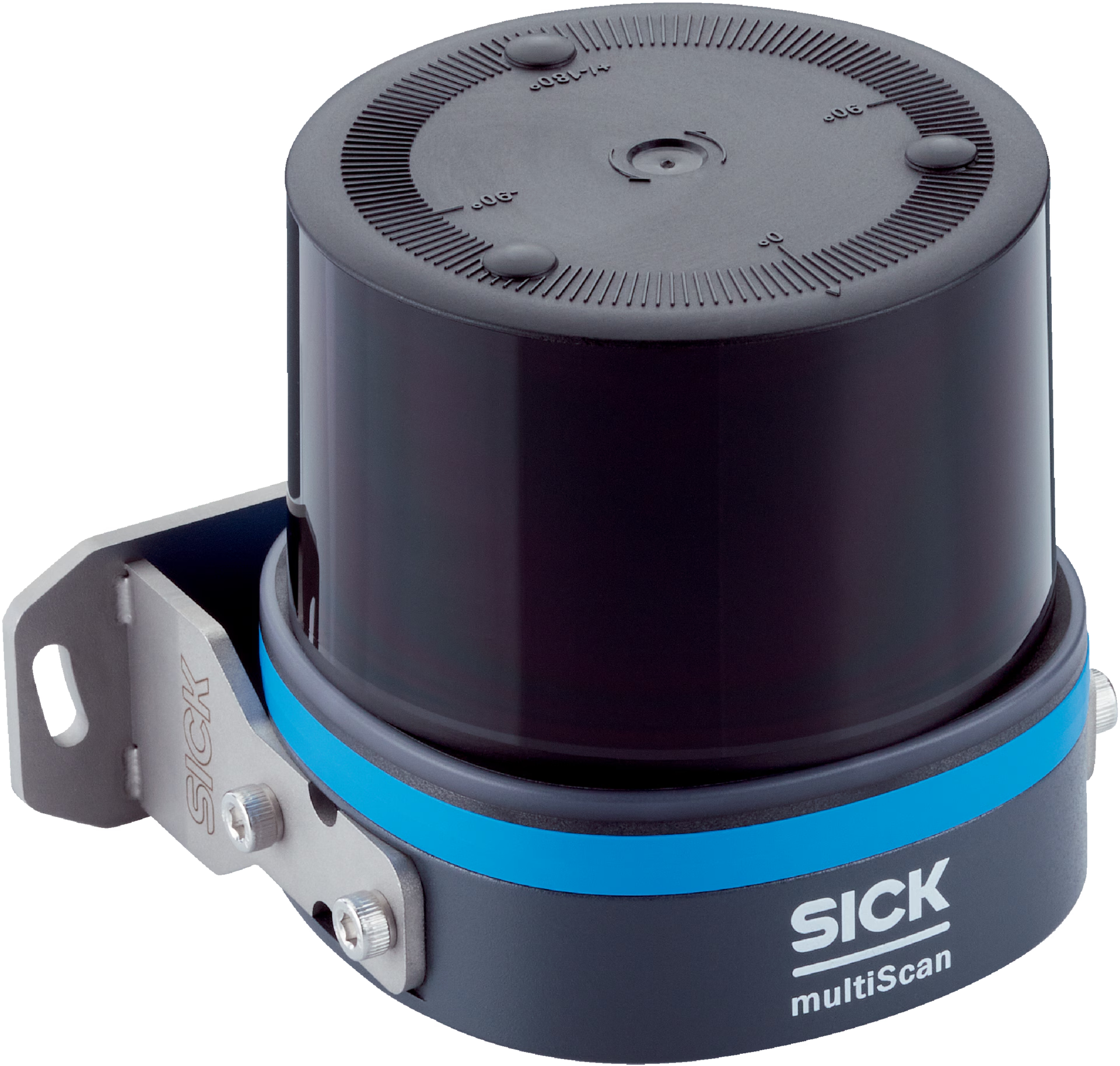

Simple mount

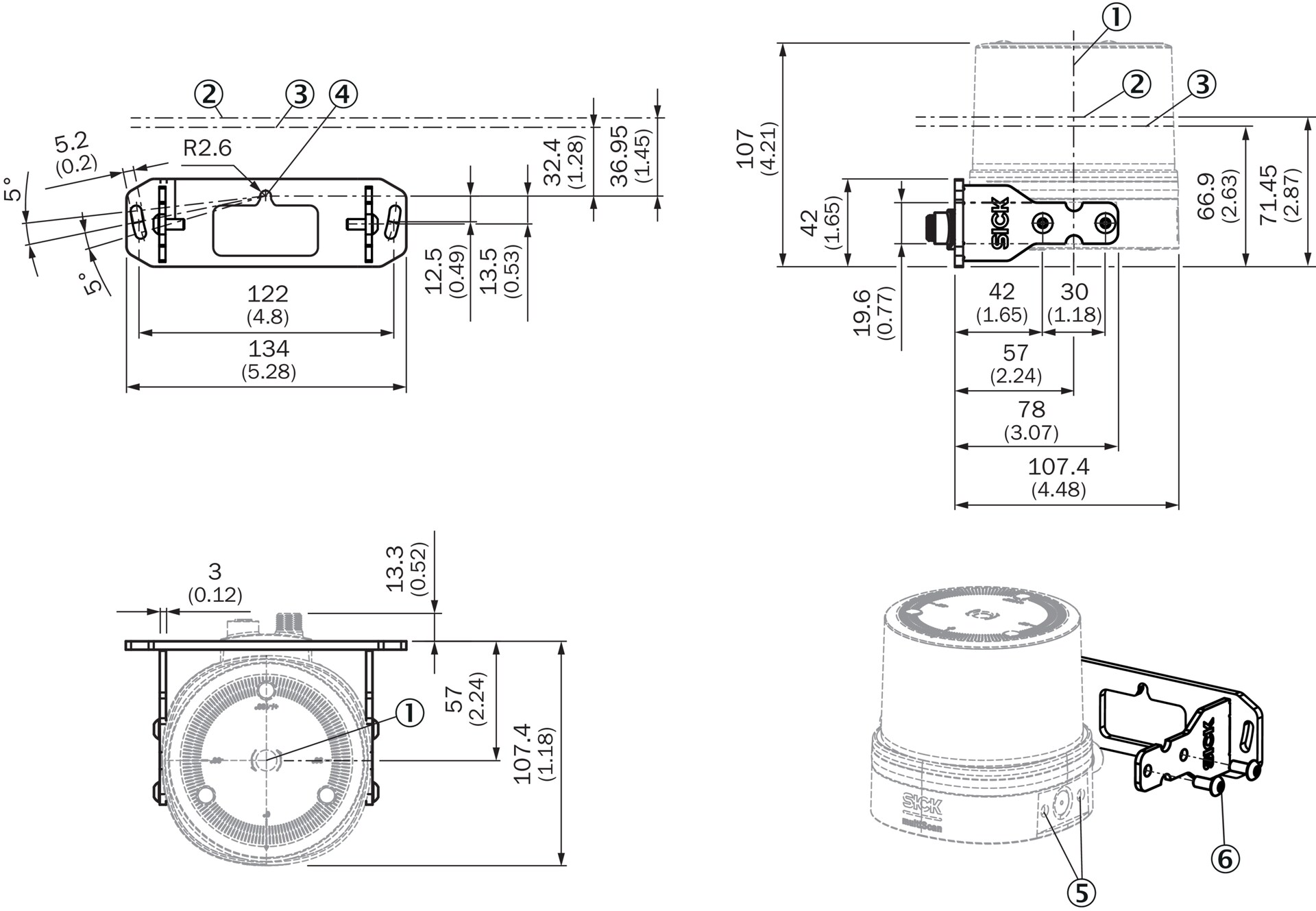

Dimensional drawing
Dimensions in mm (inch)
① Scan axis
② Scan plane 0° for MULS1AA-114322
③ Scan plane 0° for MULS1AA-112211
④ Rotation axis
⑤ Thread depth 6.5 mm
⑥ 4 x M5 x 12, tightening torque 3 Nm

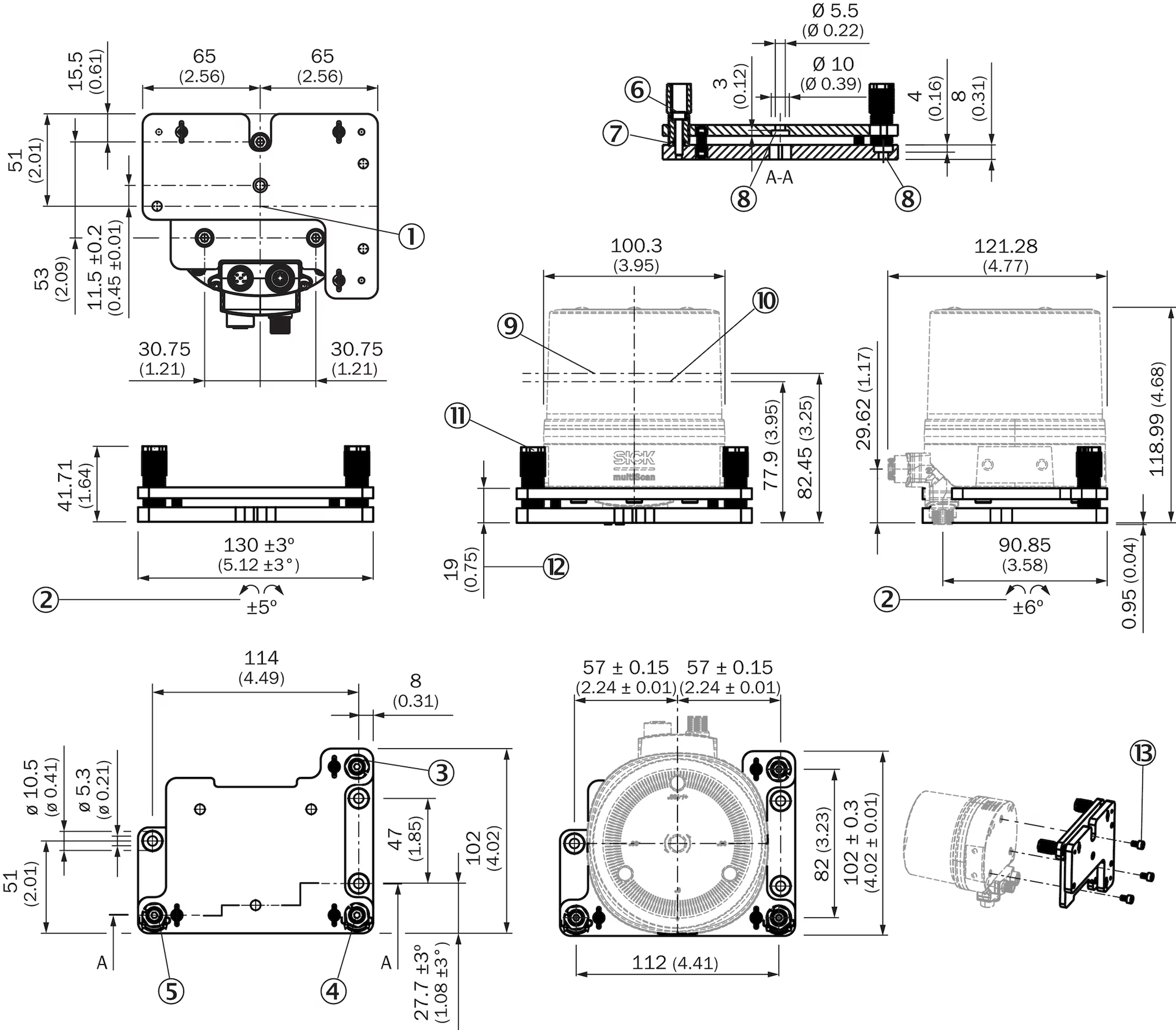

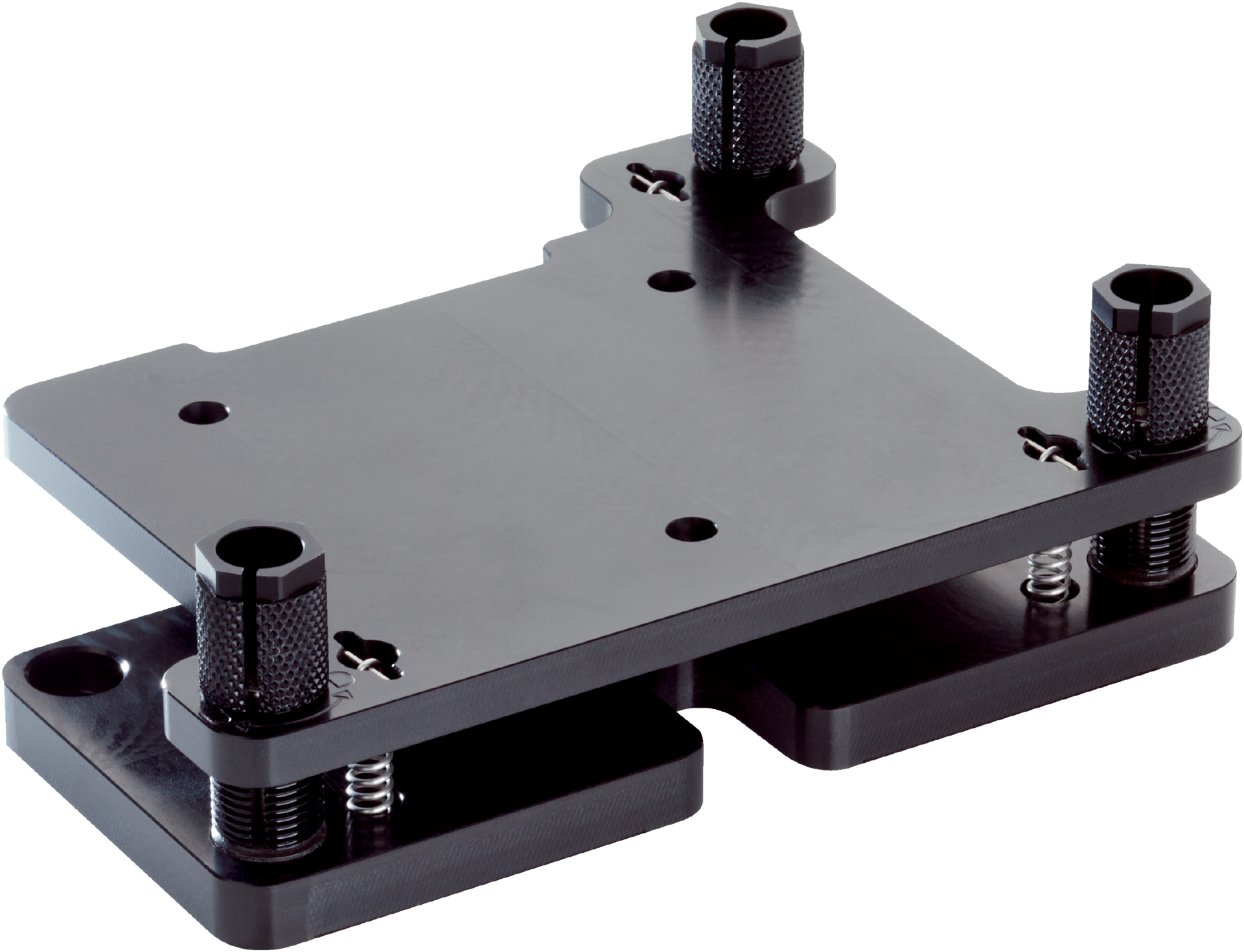

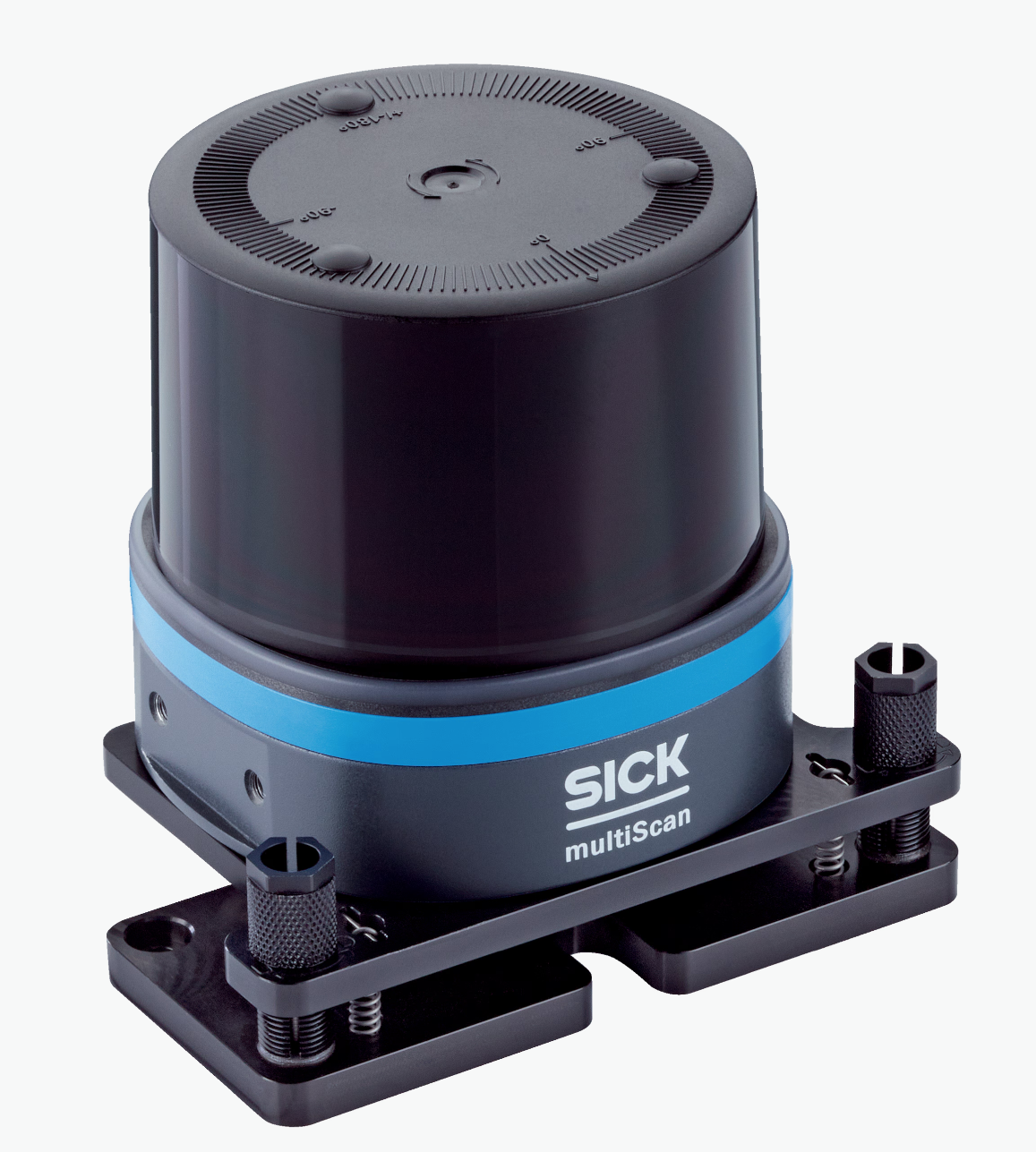

Precision mount
Dimensional drawing
Dimensions in mm (inch)
① Axis of rotation
② Possible tilting
③ Adjustment screw option
④ Adjustment screw option
⑤ 3. Adjustment screw
⑥ After adjustment, tighten firmly to 1.5–2.5 Nm
⑦ Note: The calibration sleeve must not lift off the base plate during adjustment, otherwise calibration will be lost when fixing
⑧ For M5 screw
⑨ Scanning plane 0° for MULS1AA-114322
⑩ Scanning plane 0° for MULS1AA-112211
⑪ Adjust carefully to avoid jamming, max torque 1.5 Nm
⑫ Adjustment range
⑬ 3 x M5 x 8 (included), tightening torque 3 Nm
