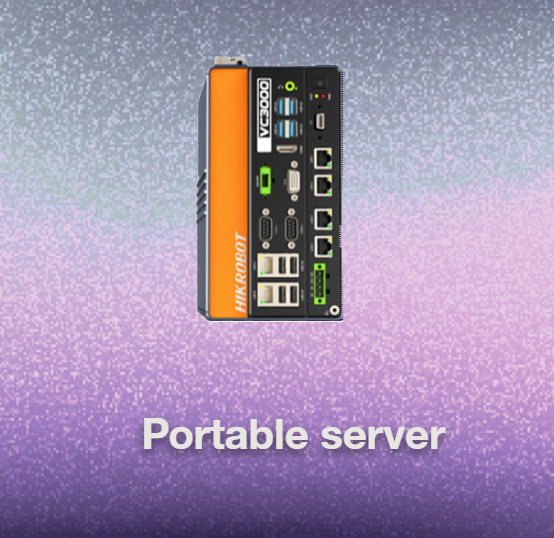

Portable server specifications
Wake On Lan enabled | Yes |
PowerCut auto restart | Yes |
Dedicated low latency operating system and hardware | Yes |
Sensor capacity (RJ45) | Up to 4x 3D cameras*
Up to 10x 2D LiDARs* |
Supported sensors | LAN only, 20+ sensors
Sick, Ouster, Orbbec, Hokuyo … |
“Input” Network interface | 4x POE ports / RJ45 / 1Gb
1x RJ45 / 1Gb |
“Output” Network interface | RJ45 / 1Gb |
Processing power | Designed to track approx. up to 25 people with standard quality |
Fan noise | Noisy on high load |
Size | 20 x 10.5 x 10.5 cm |
Weight | 3,10 Kg |
*Max 1x 3D camera or up to 2x 2D LiDAR per port, more than 1 LiDAR per port requires a standard switch.
