Accessories manual

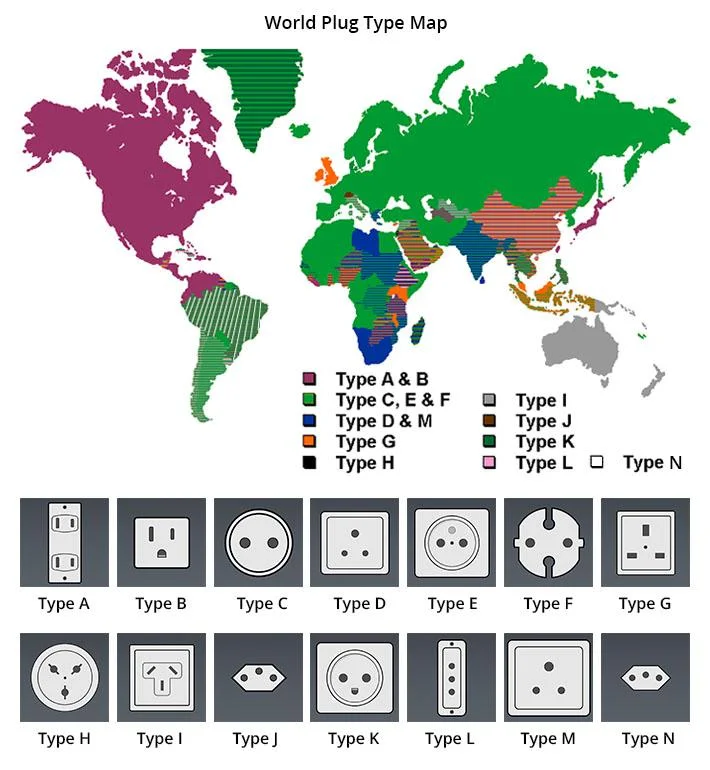

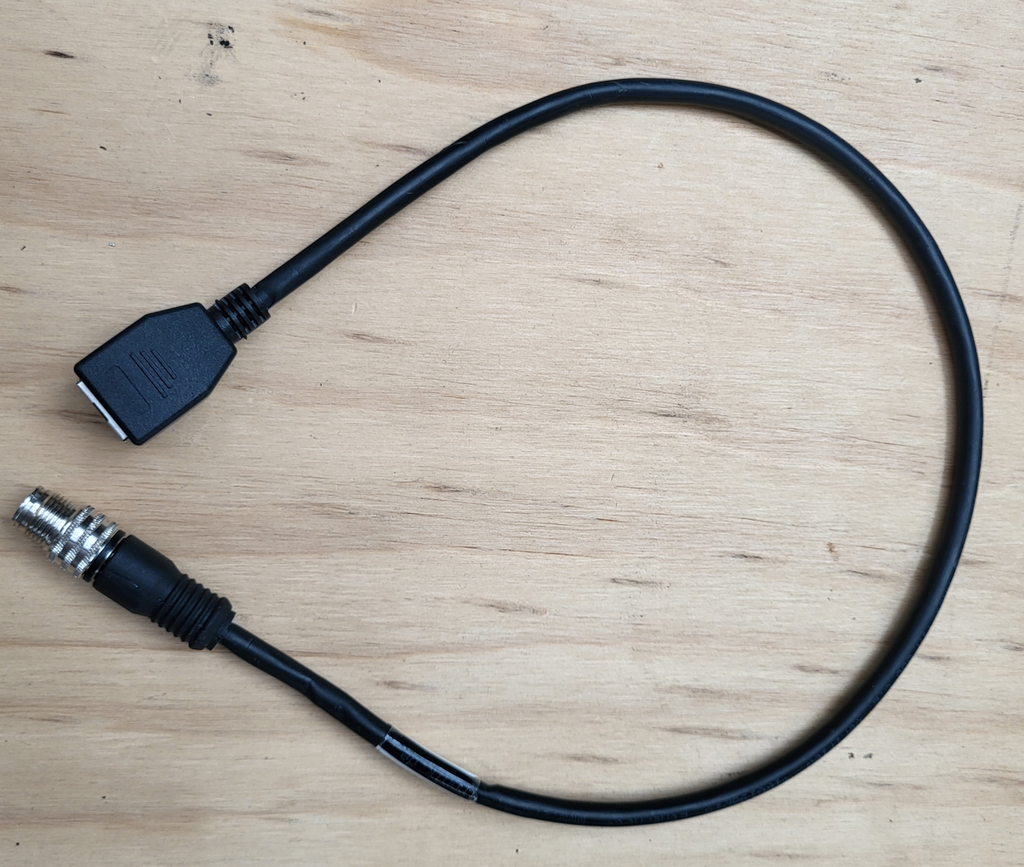

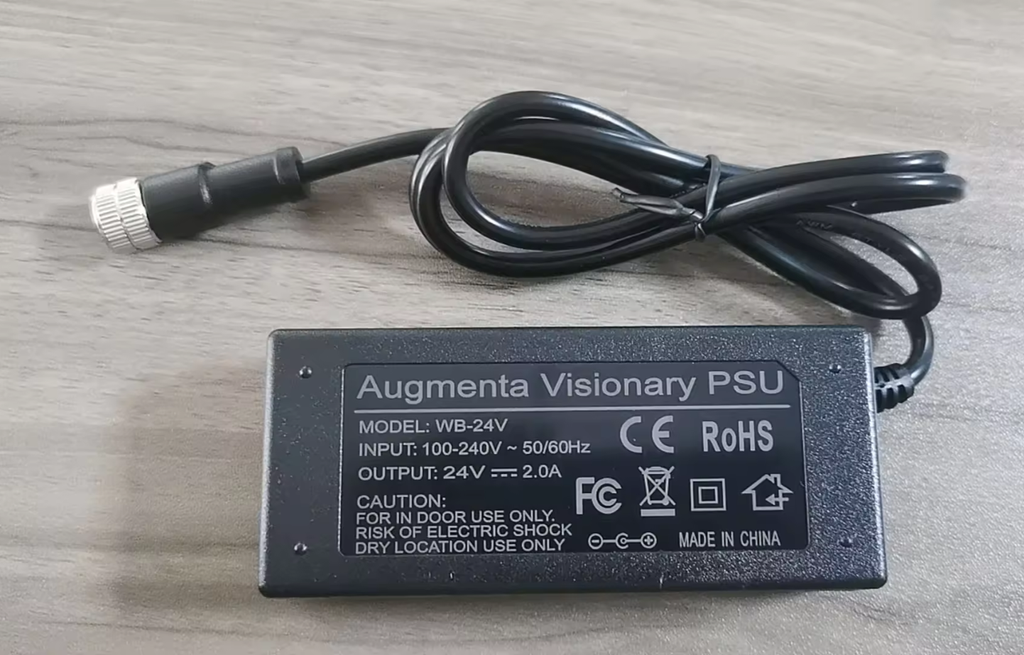

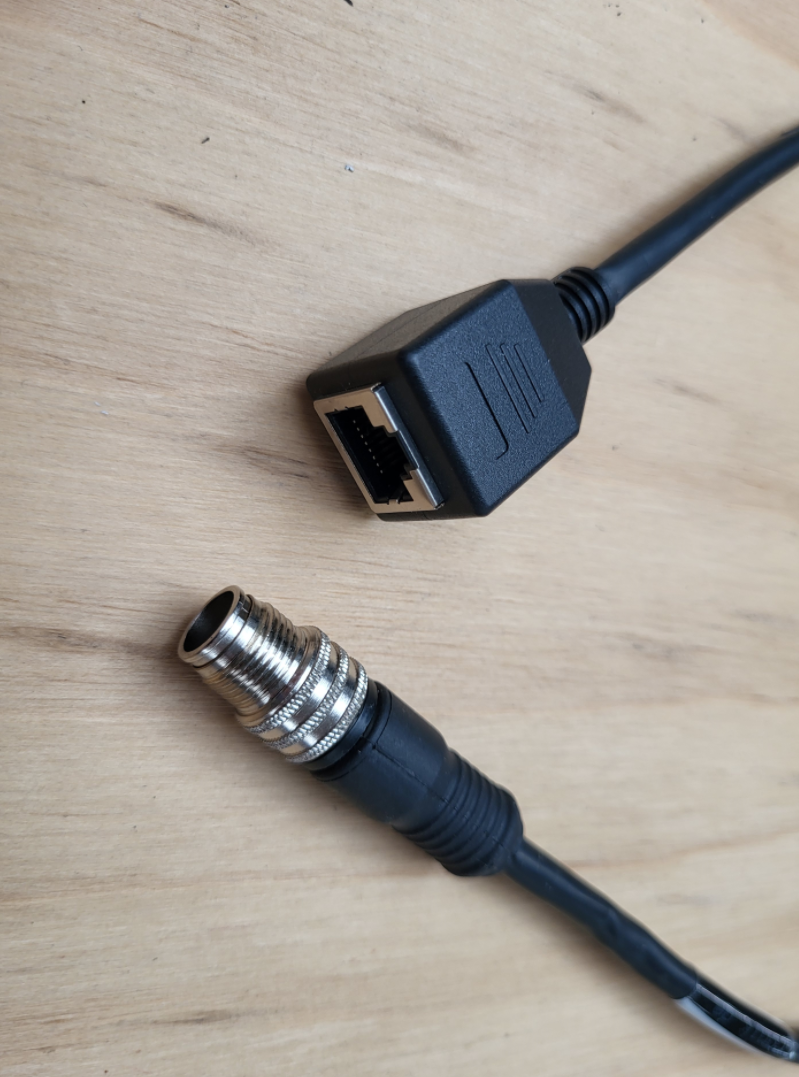

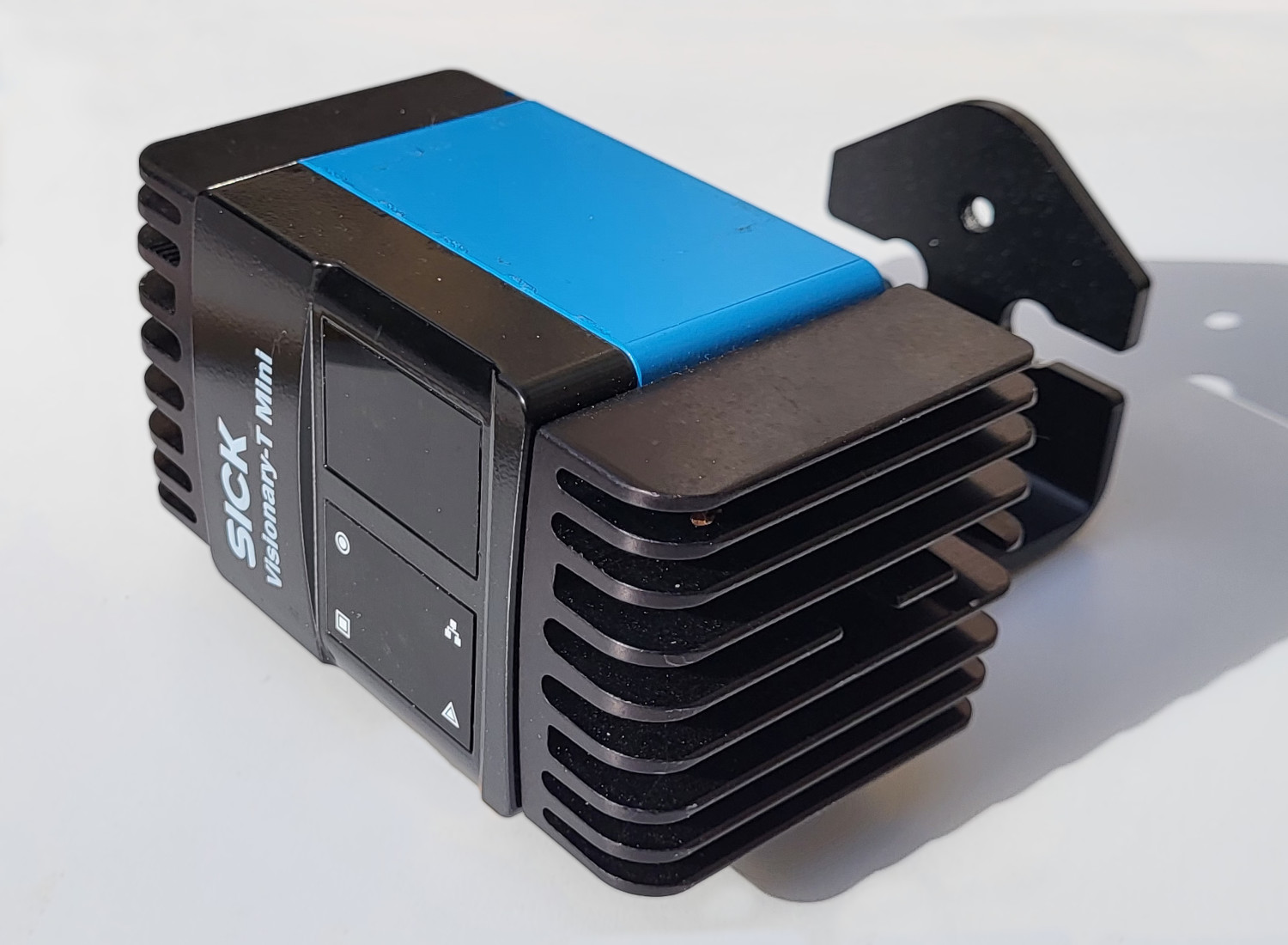

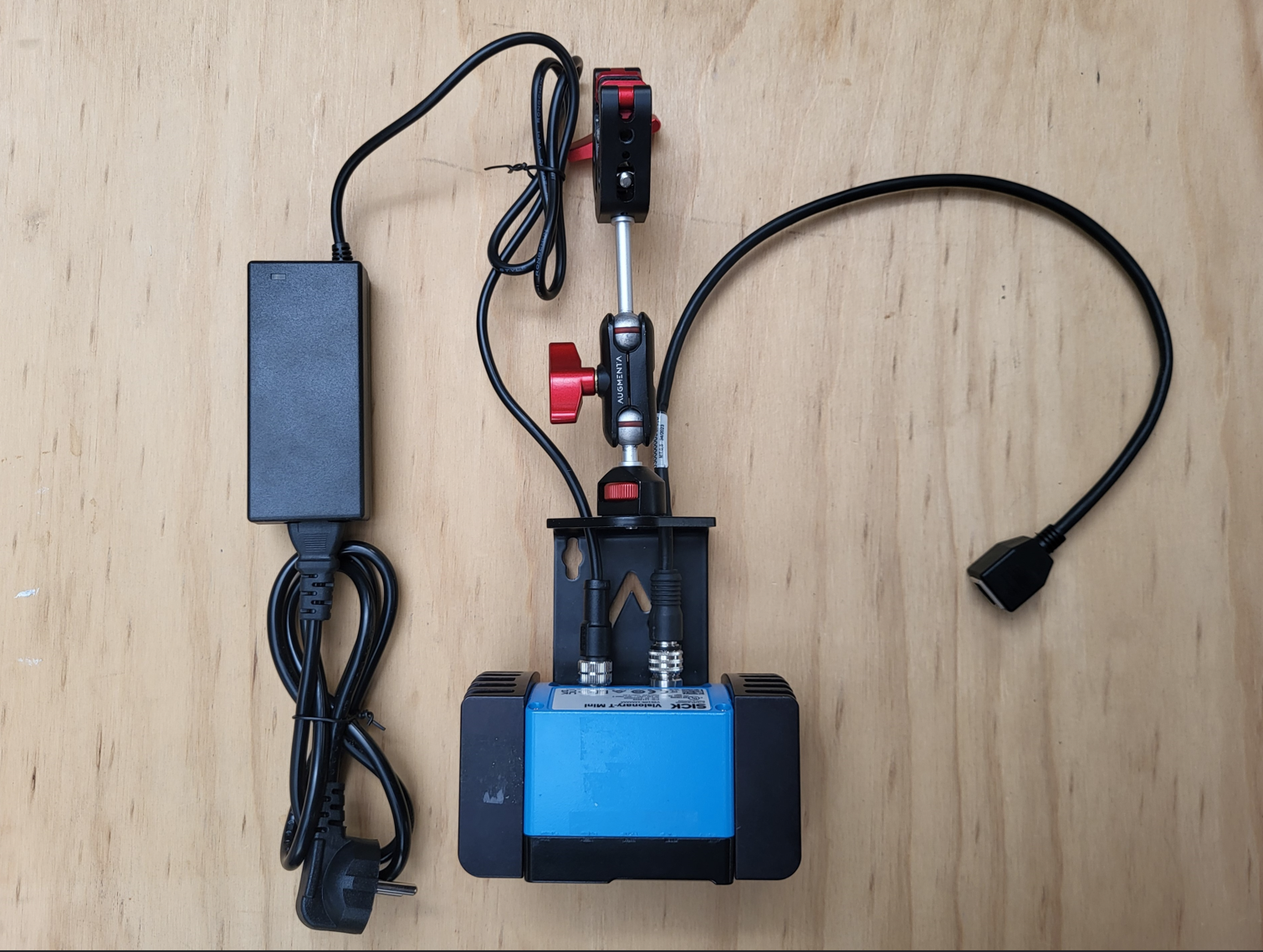

Visionary T-Mini with heat sink and mount (front view)

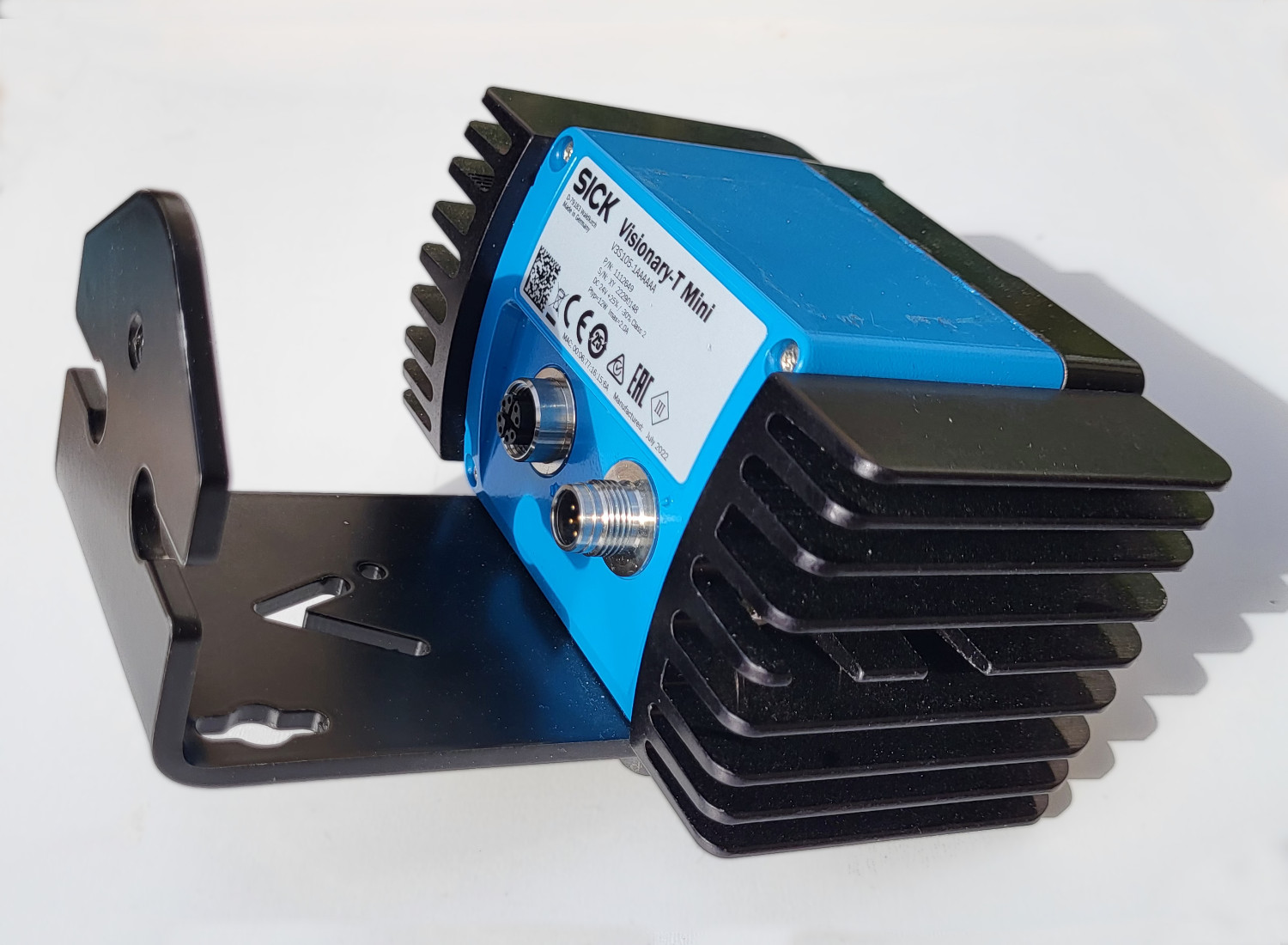

Visionary T-Mini with heat sink and mount (back view)

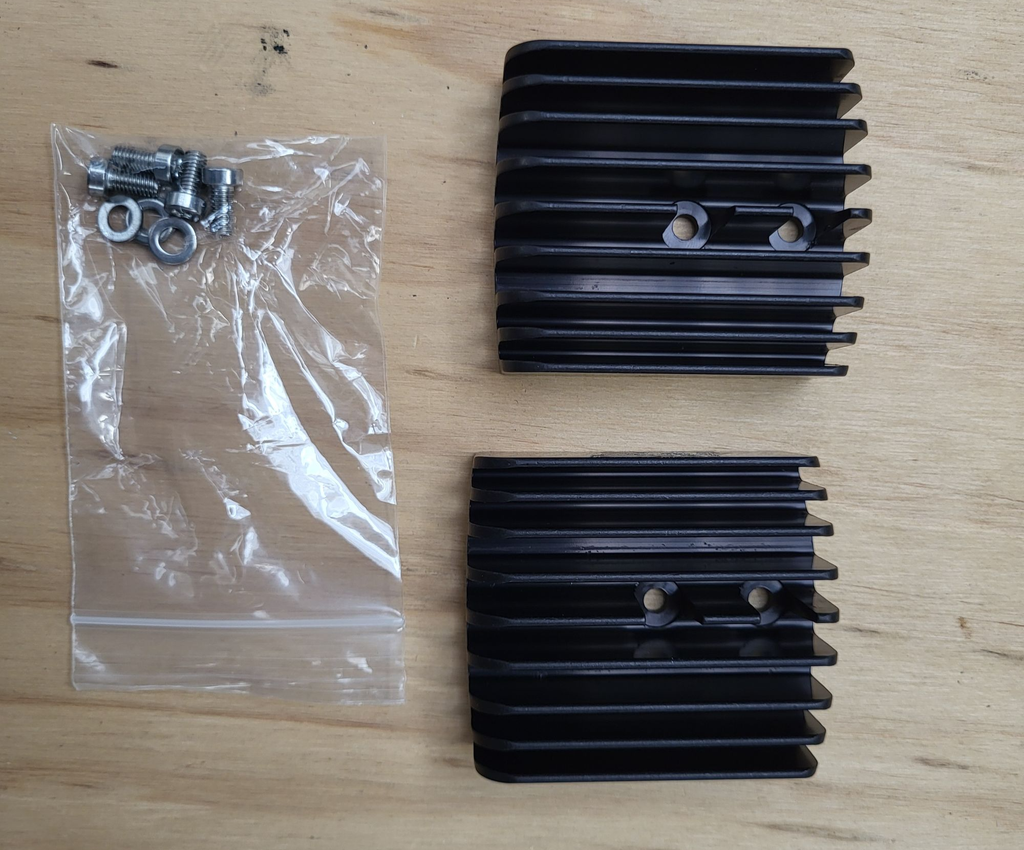

Heat sinks

⚠️

This is a mandatory accessory to prevent over heating !

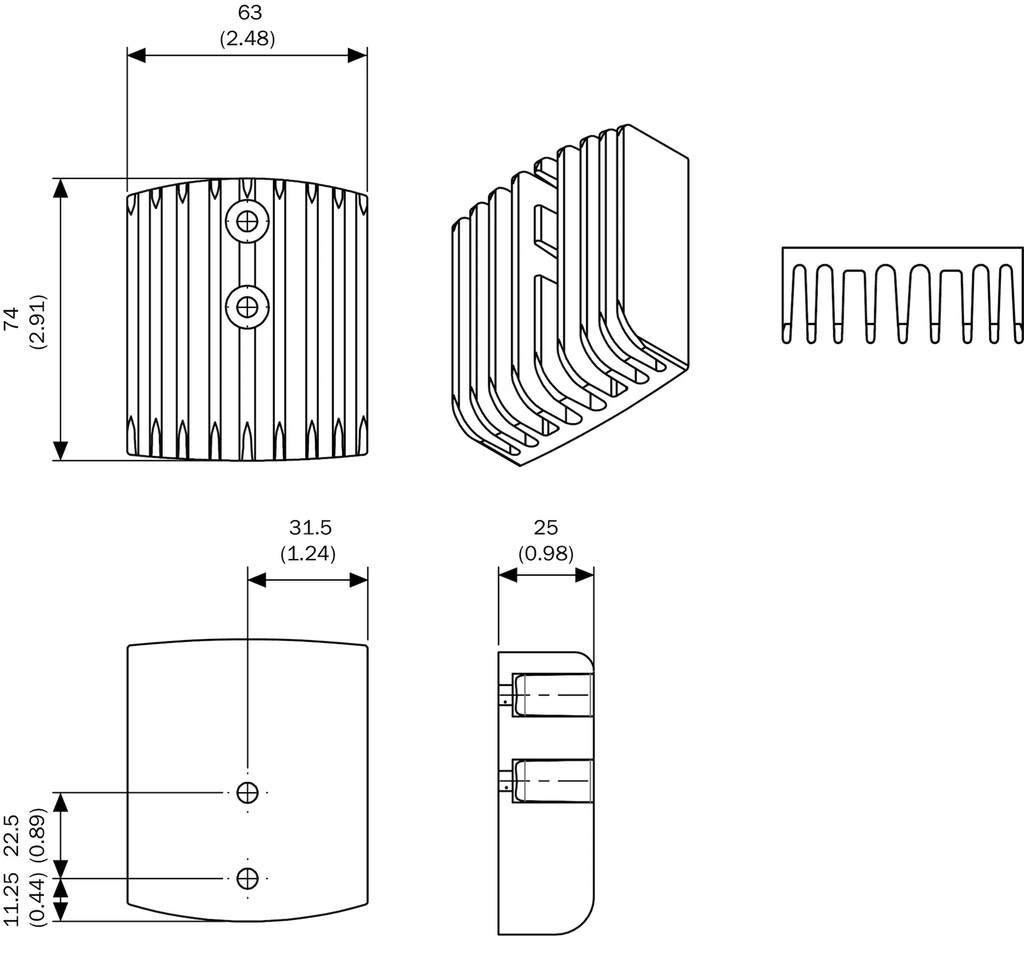

Dimensional drawing

Dimensions in mm (inch)

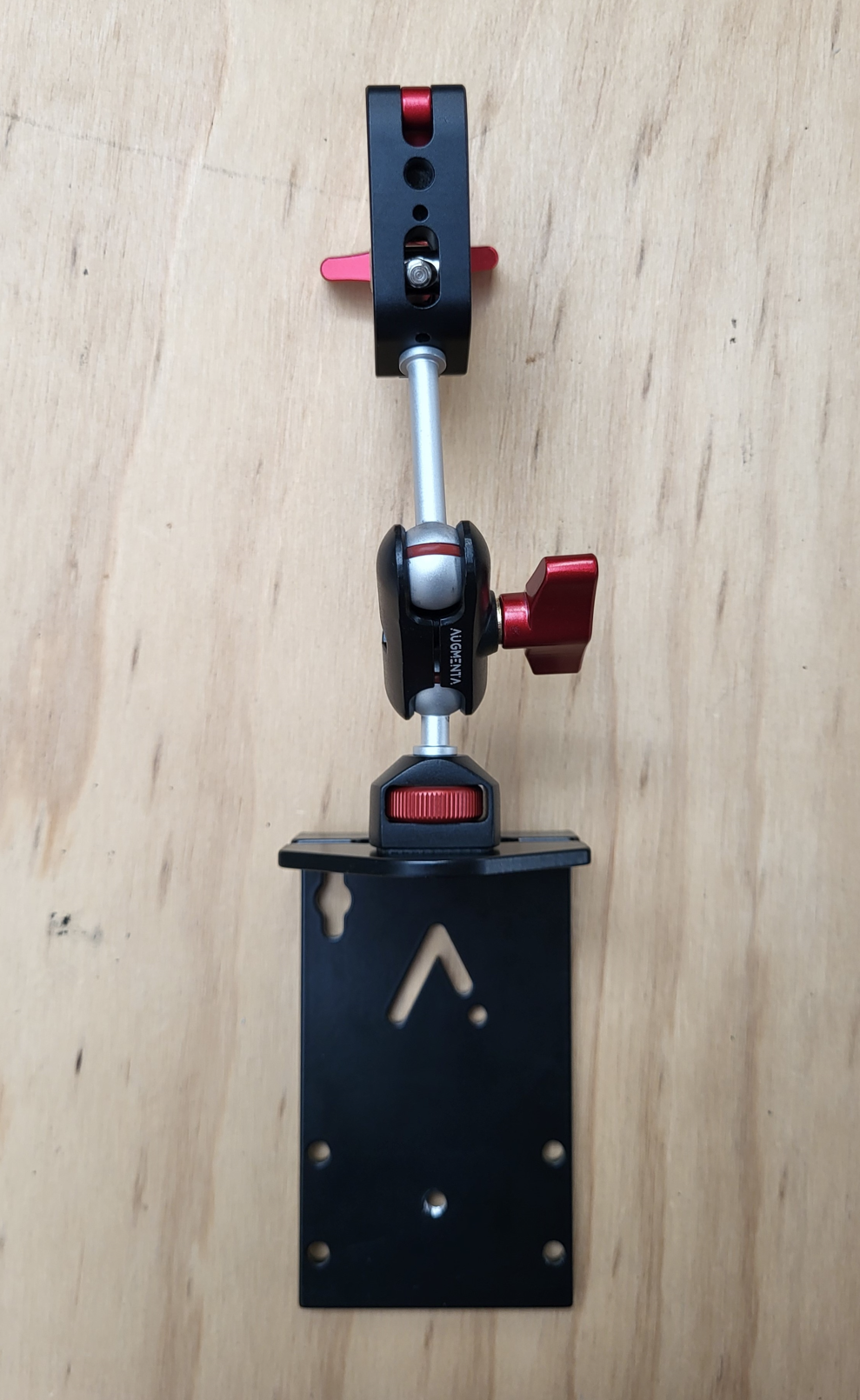

Augmenta mount

Augmenta designed mounting plate, providing 2x 1/4" photography female threaded mounting options. Without it, the sensor only has 4 M5 threaded mounting hole.

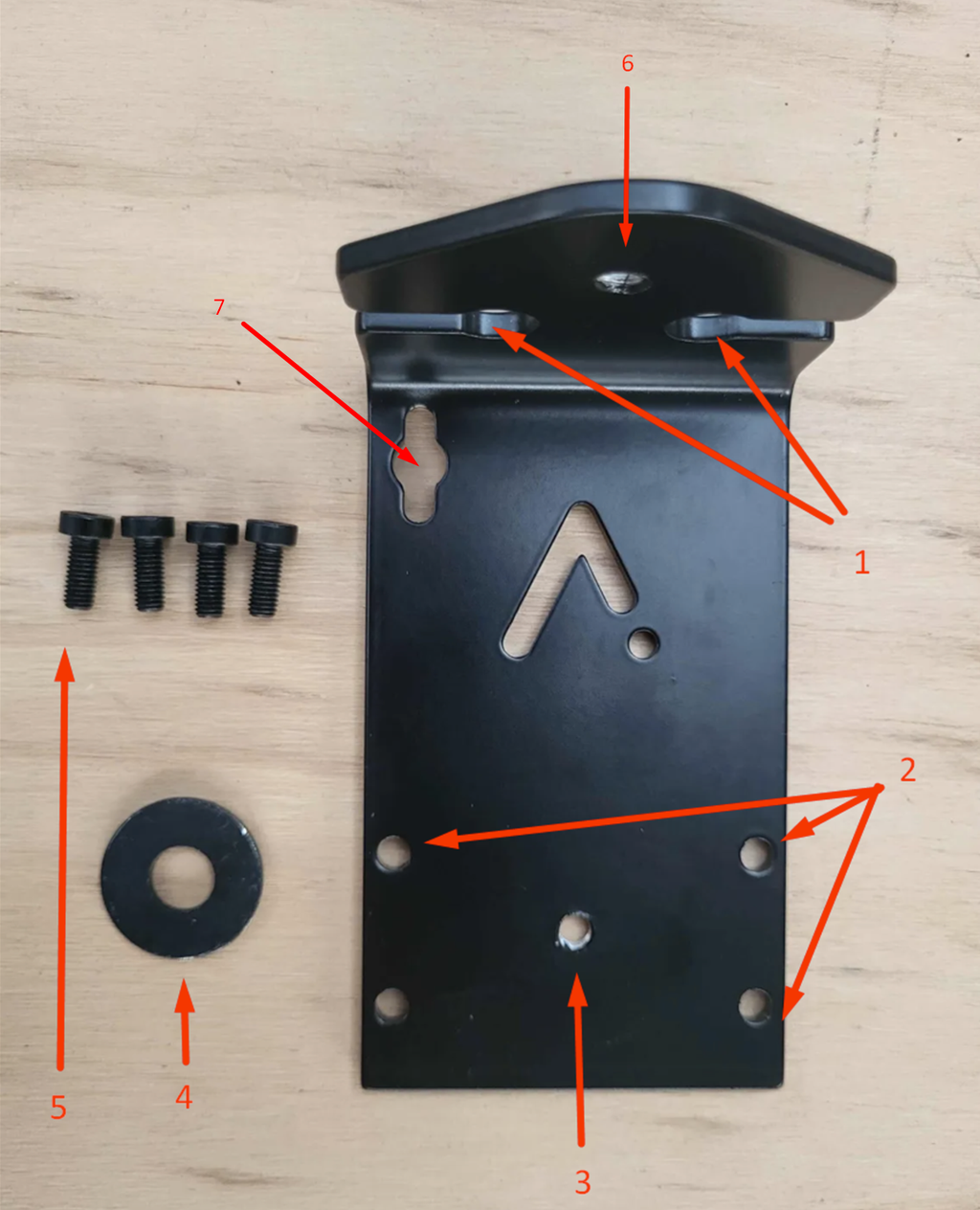

Cable holes

Camera mounting holes

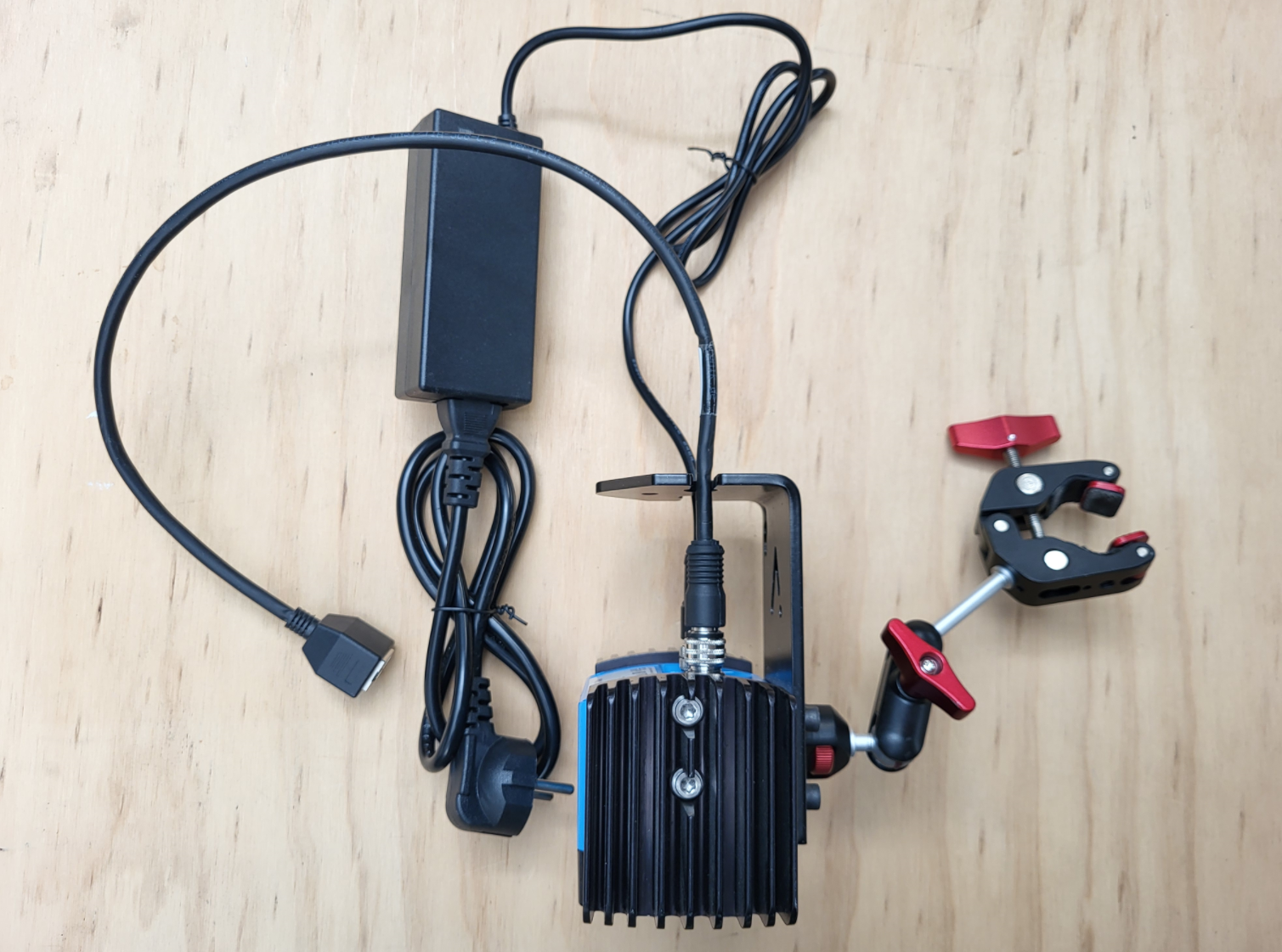

Threaded hole for magic arm

Spacer washer

Screws

Threaded holes for magic arm

Safety sling hole

12 cm x 7 cm x 7 cm

Assembly instructions

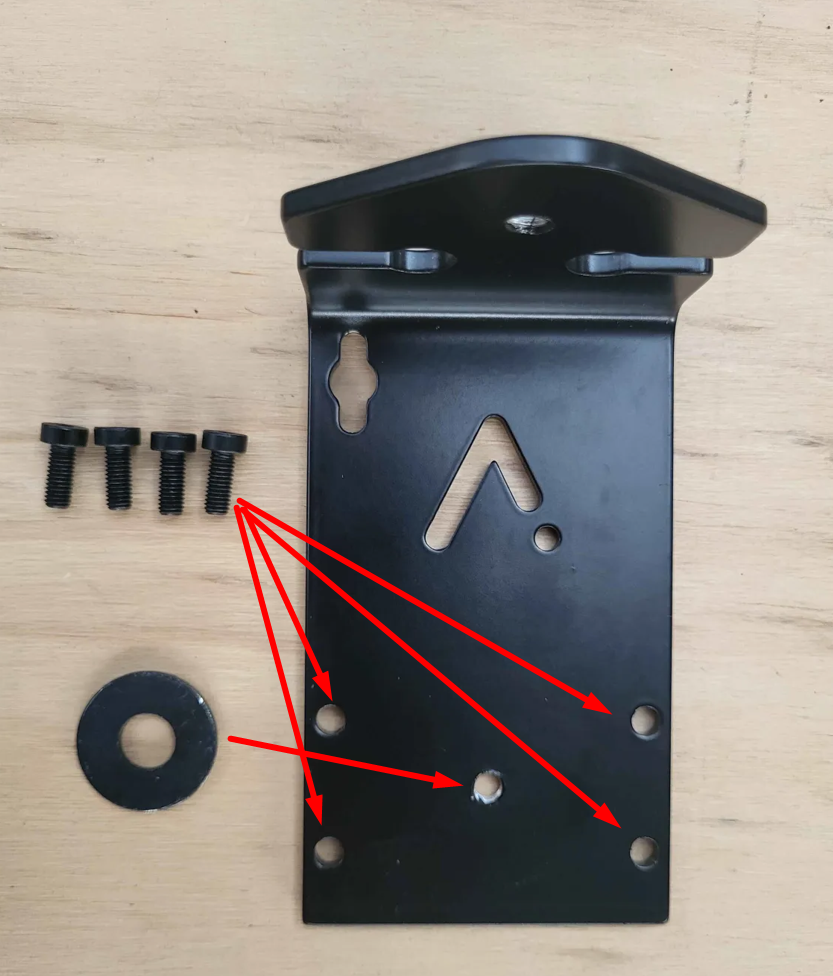

Add the washer in between the sensor and the mount as indicated in the photo.

Secure the sensors with the 4 provided screws

⚠️

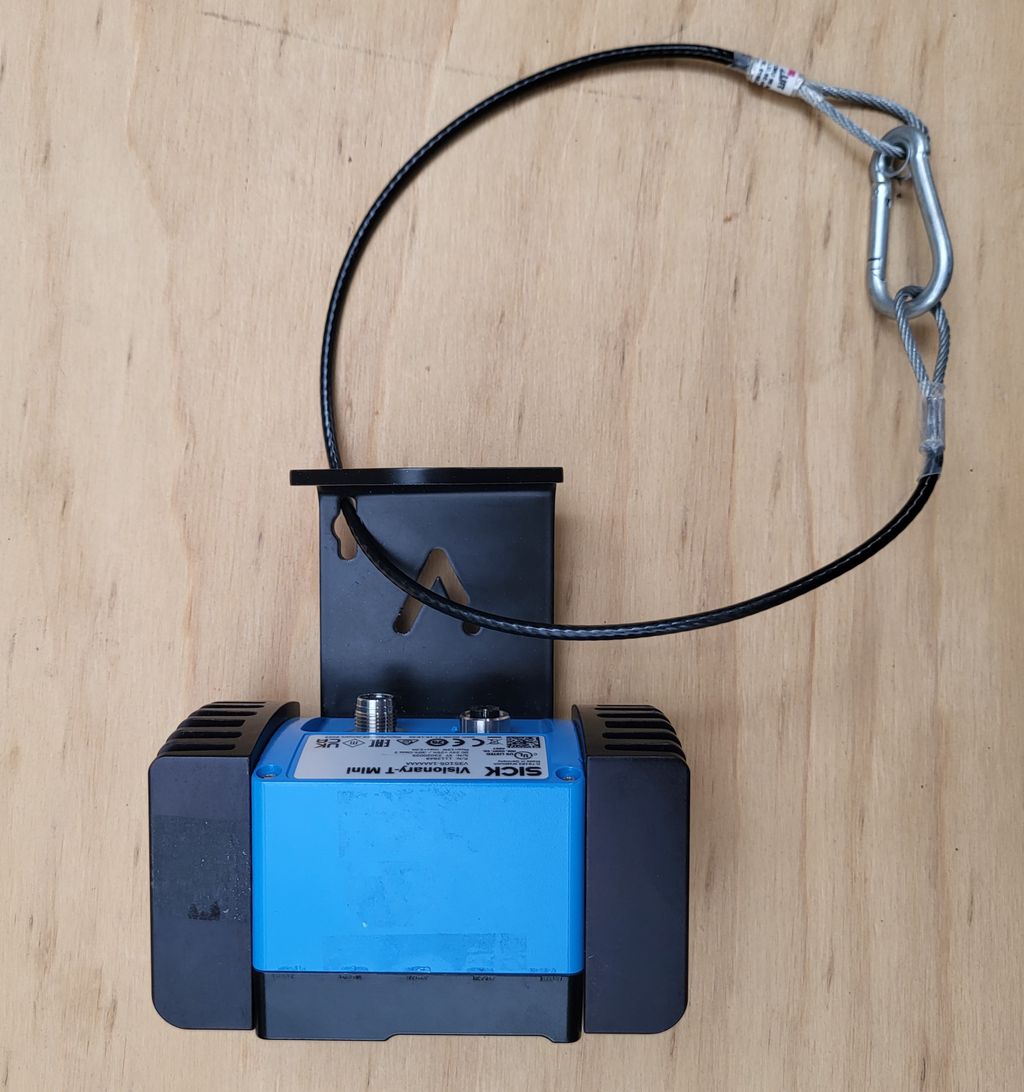

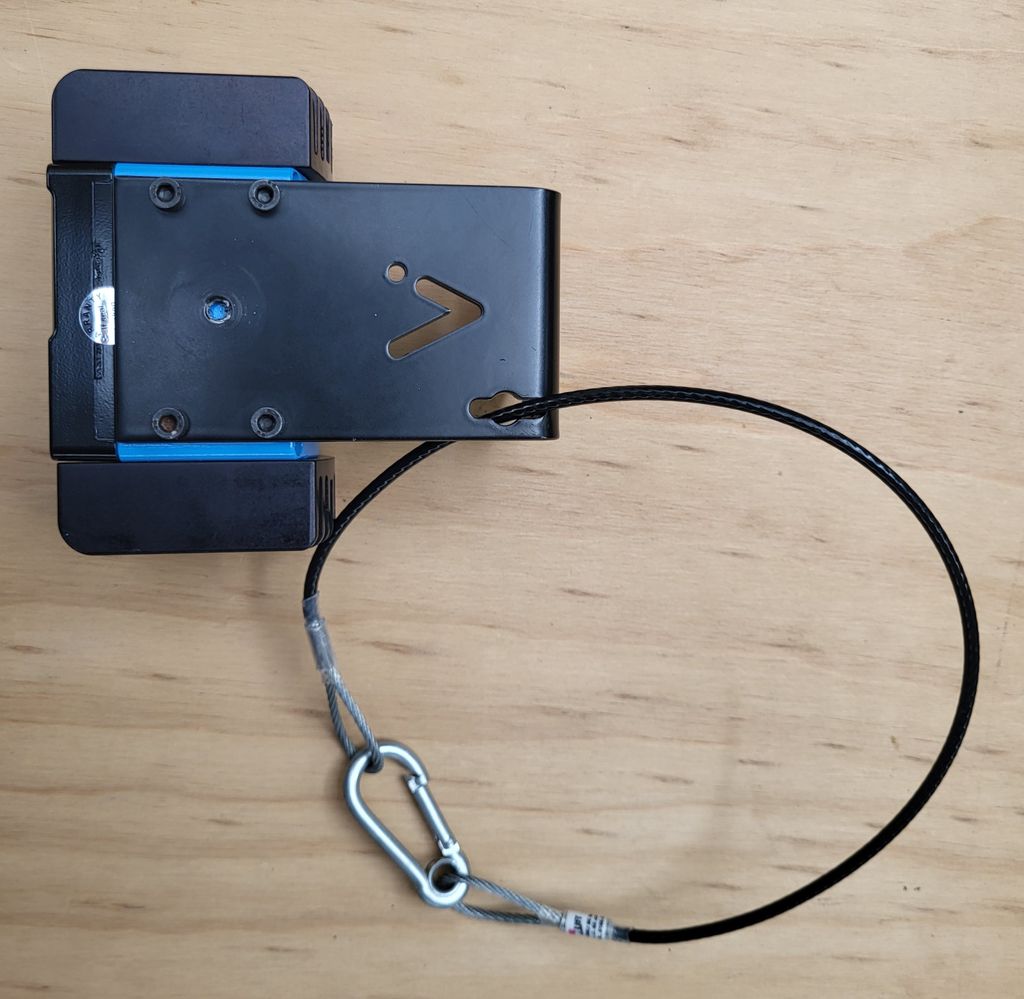

Since you might be hanging the sensor above people’s head, we recommend to use a safety sling (not provided) for safety concern. Please refer to the safety regulations of your country.
