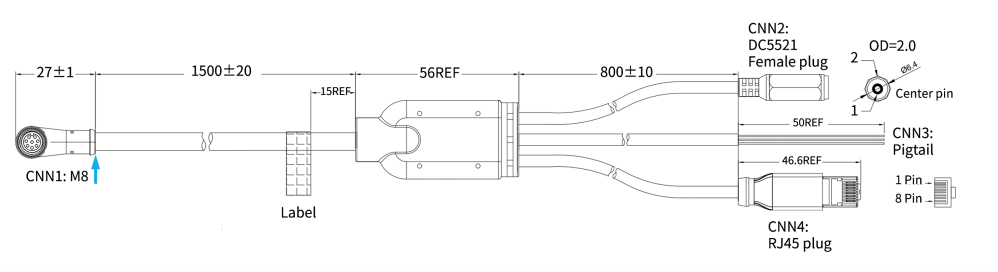

1-to-3 splitter cable
The JT128 comes with a 1-to-3 splitter cable (indoor rating) and a power supply

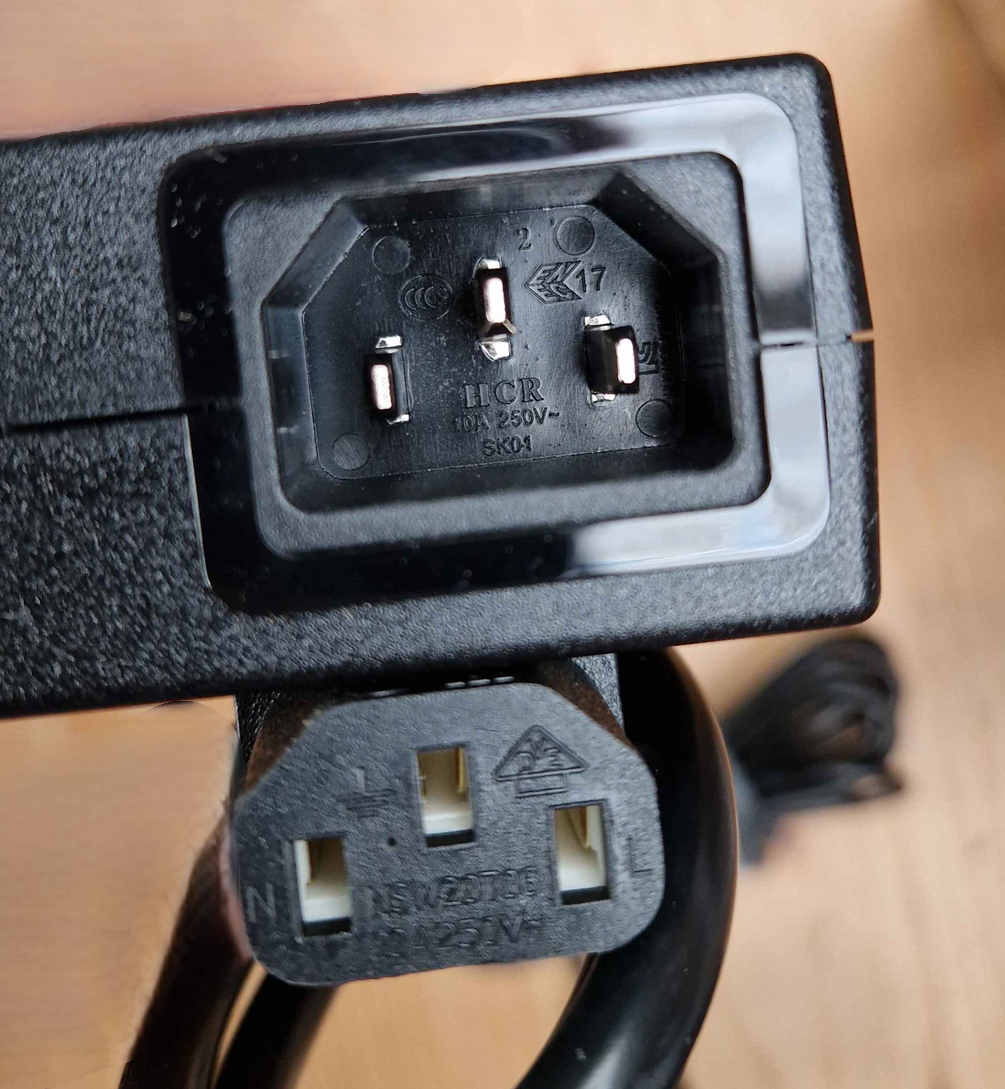

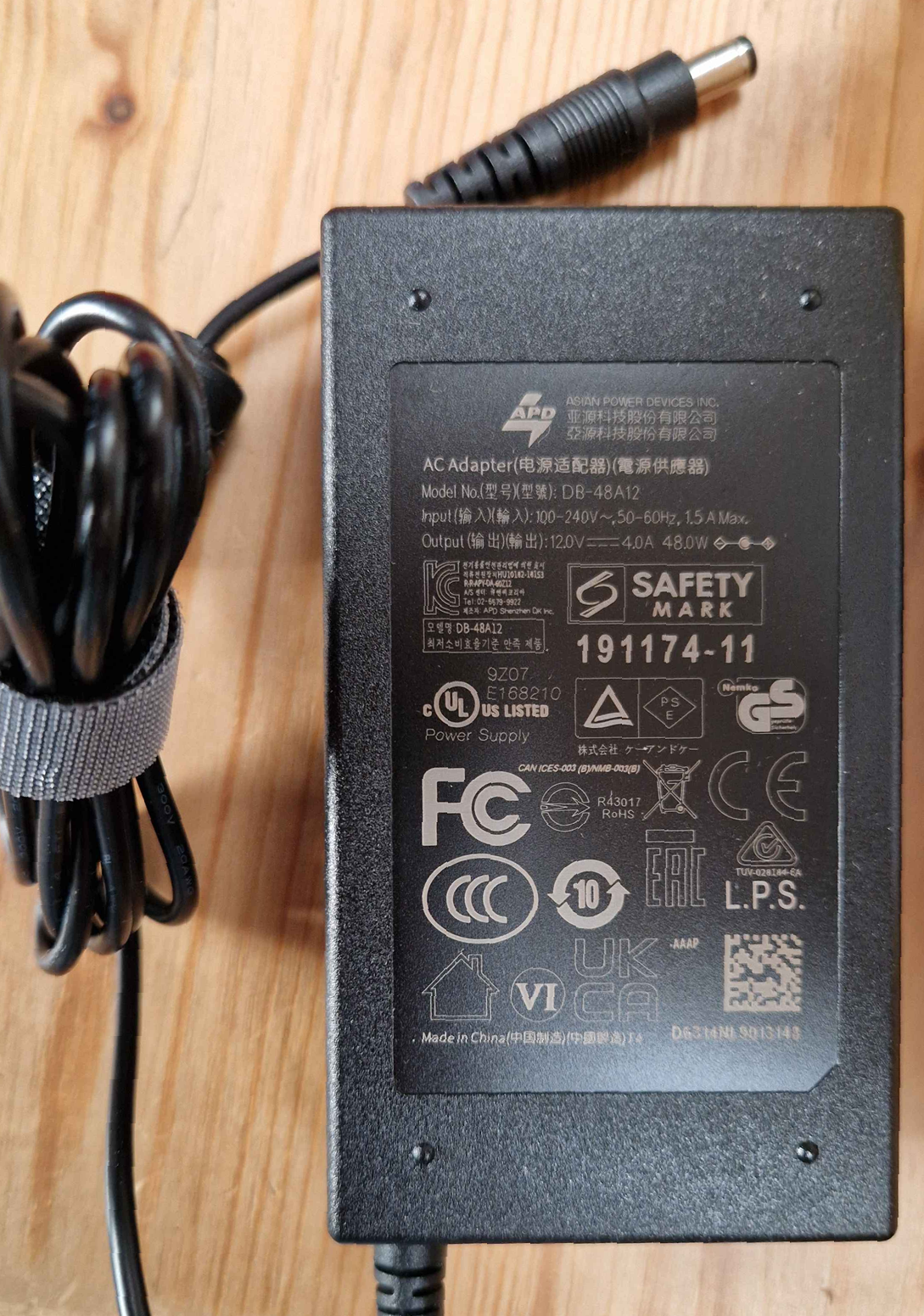

Power supply
Characteristic | Value |
Power port | CNN2 “jack”, (female plug is DC5521) |
Specification | 12V - 4A / 48W |
Polarity | Center pin positive (+), outer barrel negative/ground |

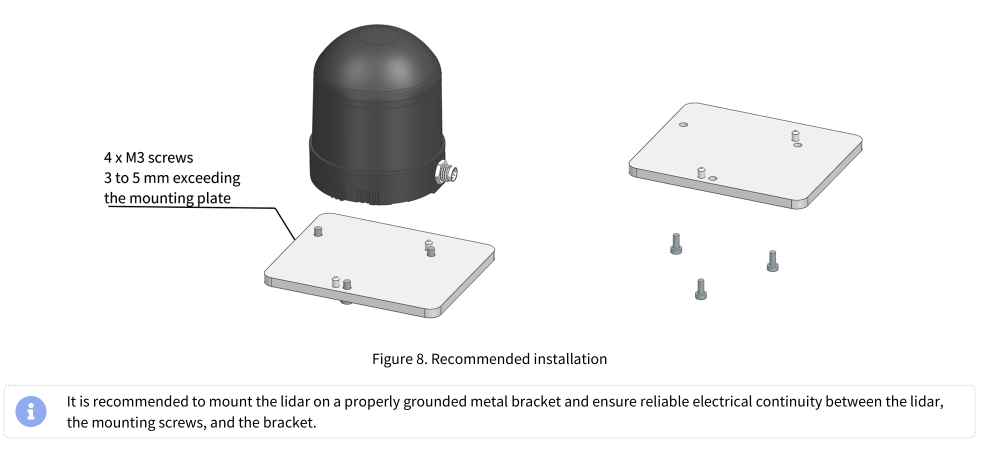

Mount
This mount is compatible with the Robosense Airy and Hesai JT128 sensors
Two modes are available
Permanent : Use the three holes and the screws provided to screw it to any flat surface
Temporary : Use our mini magic arm and a safety sling to hang it to any fixture
Compatible magic arms
Temporary/event mode
with
Augmenta mini magic arm
Note: Safety sling not provided !
Augmenta mini magic arm
Note: Safety sling not provided !
Mounting instructions
J1 J2 J3 : Screw for Hesai JT128
A1 A2 A3 : Screws hole for Robosense Airy
Please refer to the photos for correct mounting.

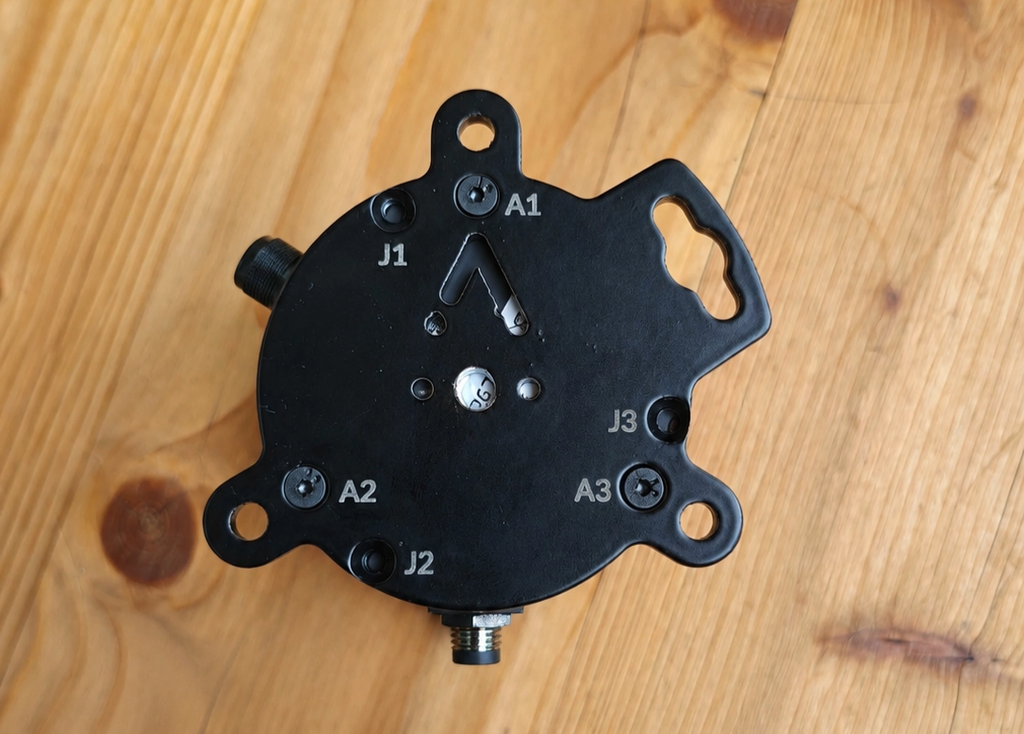

Robosense Airy
Use A1, A2, A3 for the Airy sensor, connector should be placed between A2 and A3

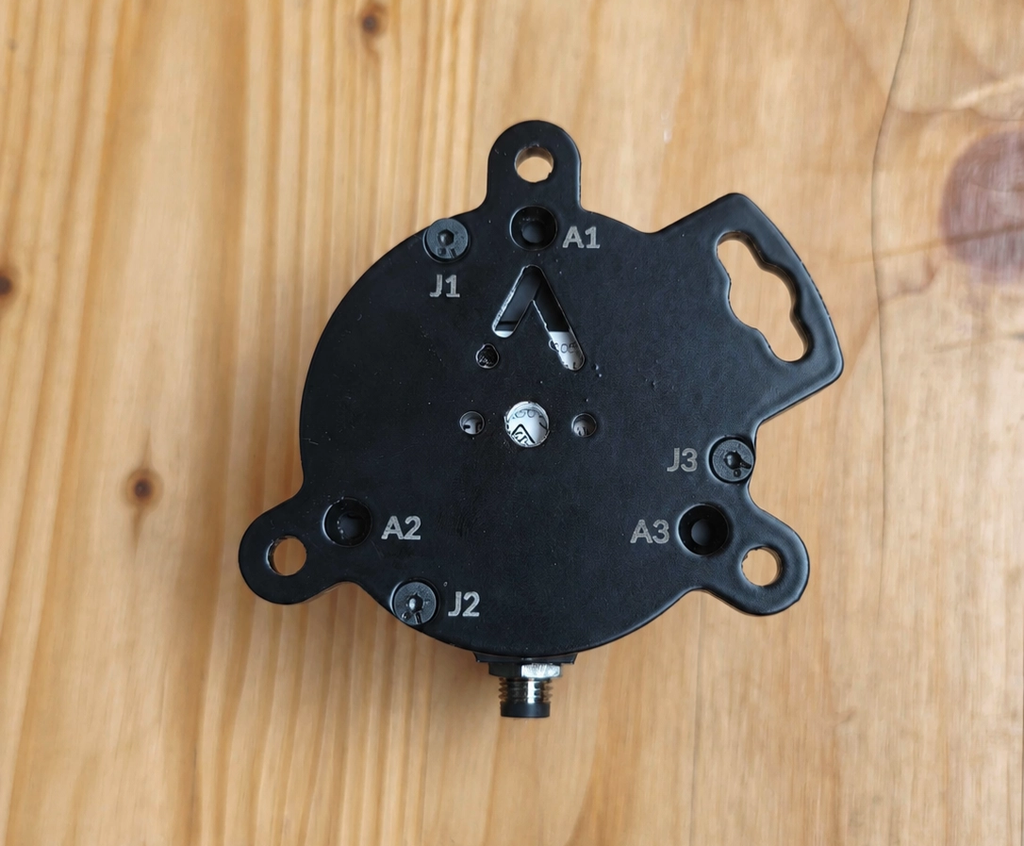

Hesai JT128
Use J1, J2, J3 for the JT128 sensor, connector should be placed between J2 and J3
