Project
An interactive immersive space for a large number of people, including children and the general public, during a light festival (4 days).
Location
Museum for History and Art, Brussels, Belgium
Credits
Théoriz (Artist)
Bright Brussels Light Festival
Barco (Projector Partner)
Size
600m² of interactive floor
Approximately 630 people per hour, on average, in the space
2x 180m² of interactive wall
Equipment specifications
1x Pro8 server + 6x SICK Visionary T-mini
6x Barco videoprojectors
Unity + Touch designer (content)
Vioso (vidoprojectors calibration)
Takeaway

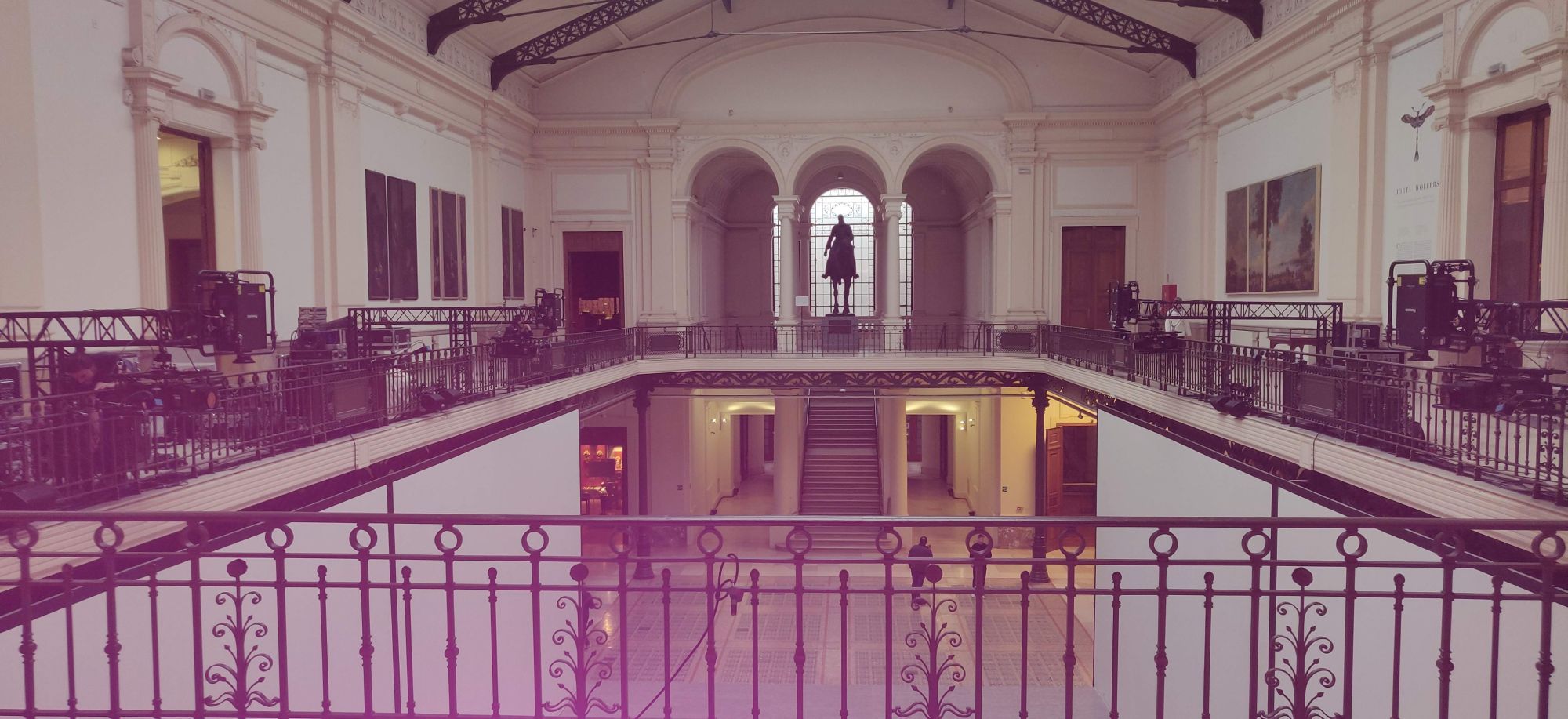

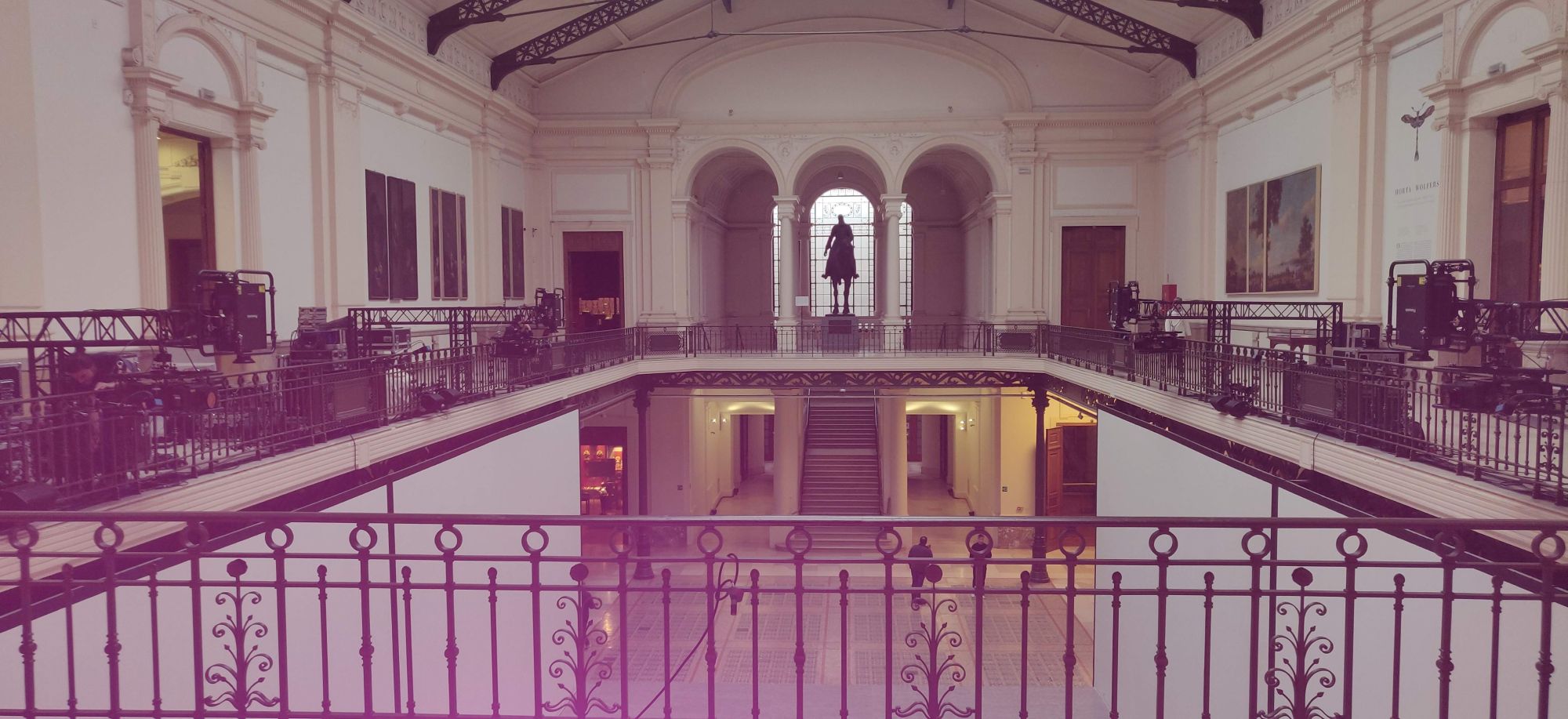

- Technical : No ceiling! It’s possible to deploy and configure Augmenta even without a ceiling.
- A huge space with a high-density crowd : 600m² interactive space with kids running, 2,500 people per evening over four days.
- Technical : Only two days for the complete AV system setup installation.
- Interactive design : Both Unity (floor) and TouchDesigner (wall) were used seamlessly for the creative workflow, with everything simulated beforehand.
- Interactive design : Clever use of camera tracking data for the floor to create interactivity on the wall without additional sensors on the wall (such as 2D LiDAR).
- Interactive design : Smart visuals adapting to the number of people in the space.
Concept
An art installation in the form of an interactive immersive space, exhibited during 4 days during the light festival of Brussels at the museum of history and art. An expected general audience including kids and family. There was two days to install the whole AV system and content.
Technical setup

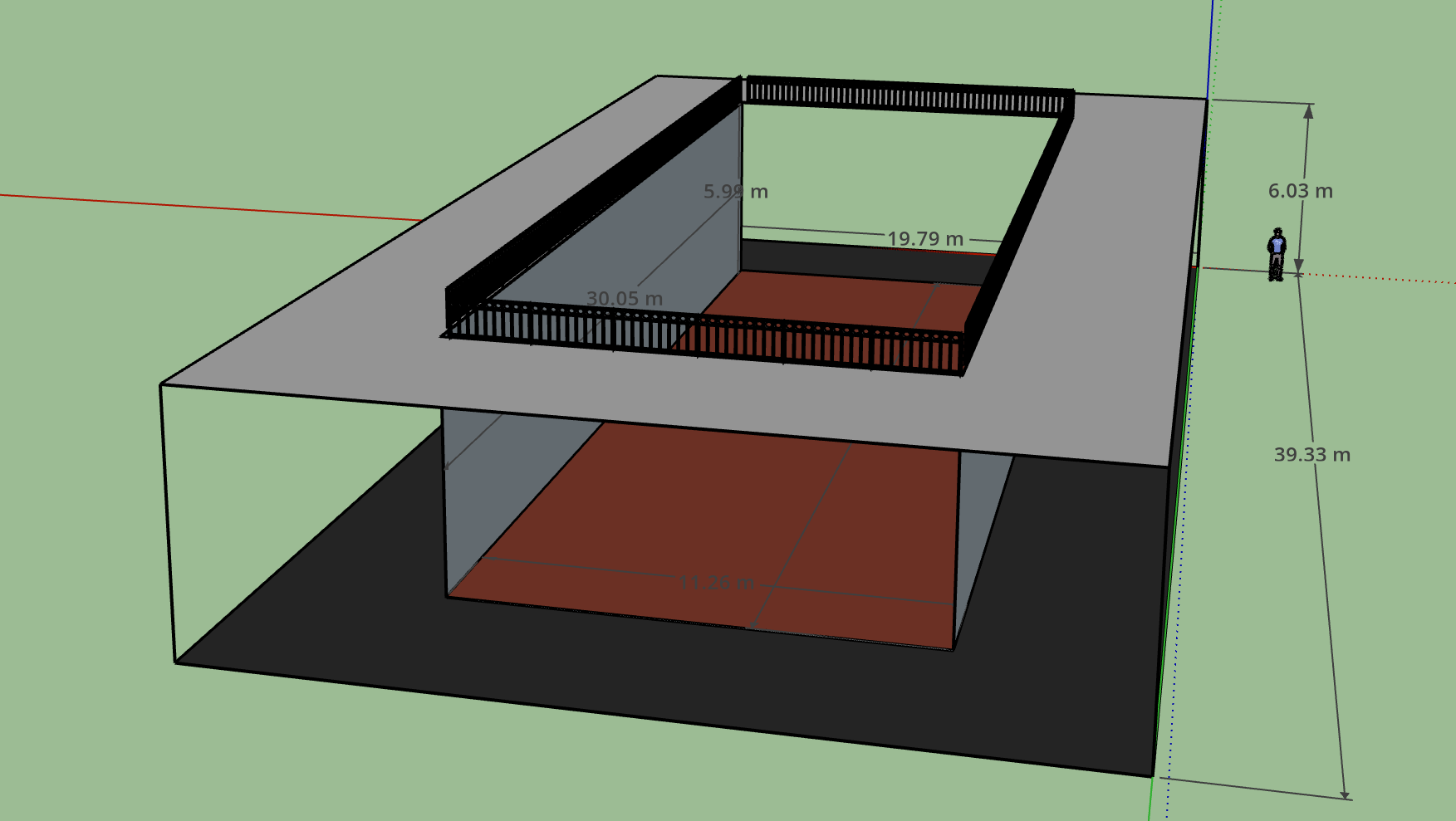

Size of the space : 30m x 10m x 6m
Interactive floor : 20m x 10m (sensors at 6m high) (200m2)
Interactive wall : 20m x 6m
Videoprojectors : Barco
Videomapping : Made with Vioso
Interactivity : 1x Augmenta Pro8 server + 6x Sick Visionary T-mini
Content software : Unity (floor) and TouchDesigner (wall)
Augmenta technical study

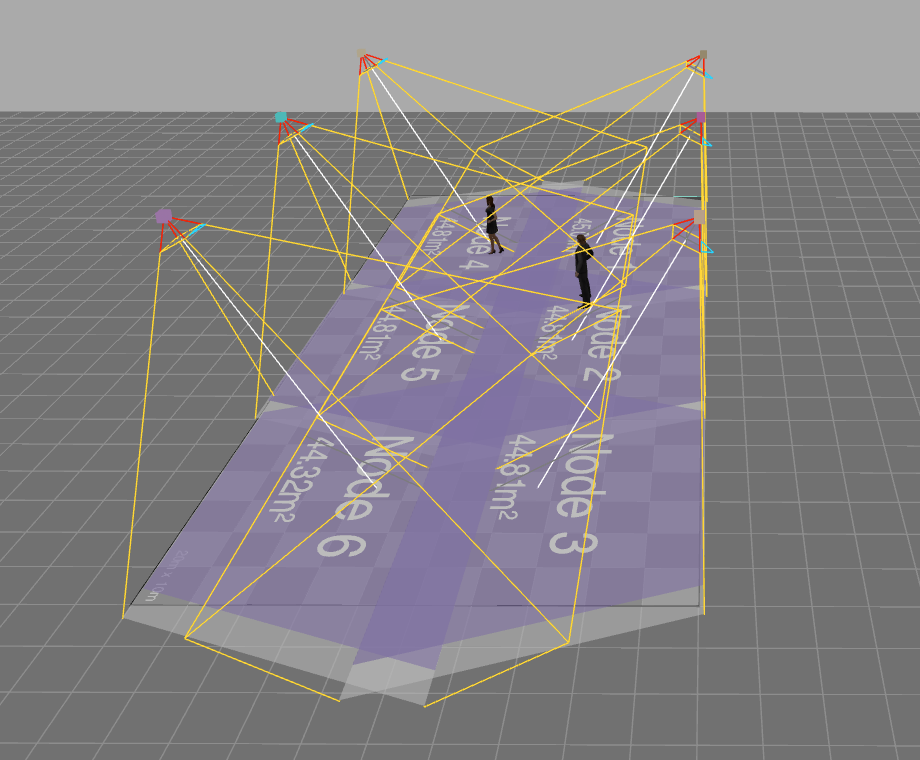

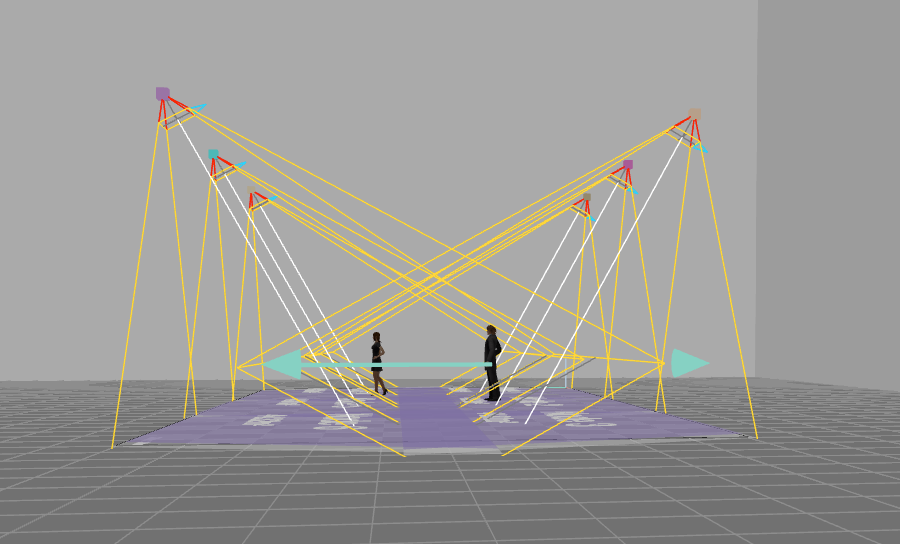

The cameras were positioned on the side and in such a way as to capture the full height of people near the screens, using their height data to create interactivity on the screens.
Augmenta provides the following key features :
- Dedicated hardware and sensors + fast calibration process
- Multiple outputs (one for Unity with a Unity presets, one for TouchDesigner with a TD presets)
- Bounding box using people’s height for interactivity with the wall
- Position tracking for people for floor interaction
- Prediction for running people
- Tunings and filters to include children

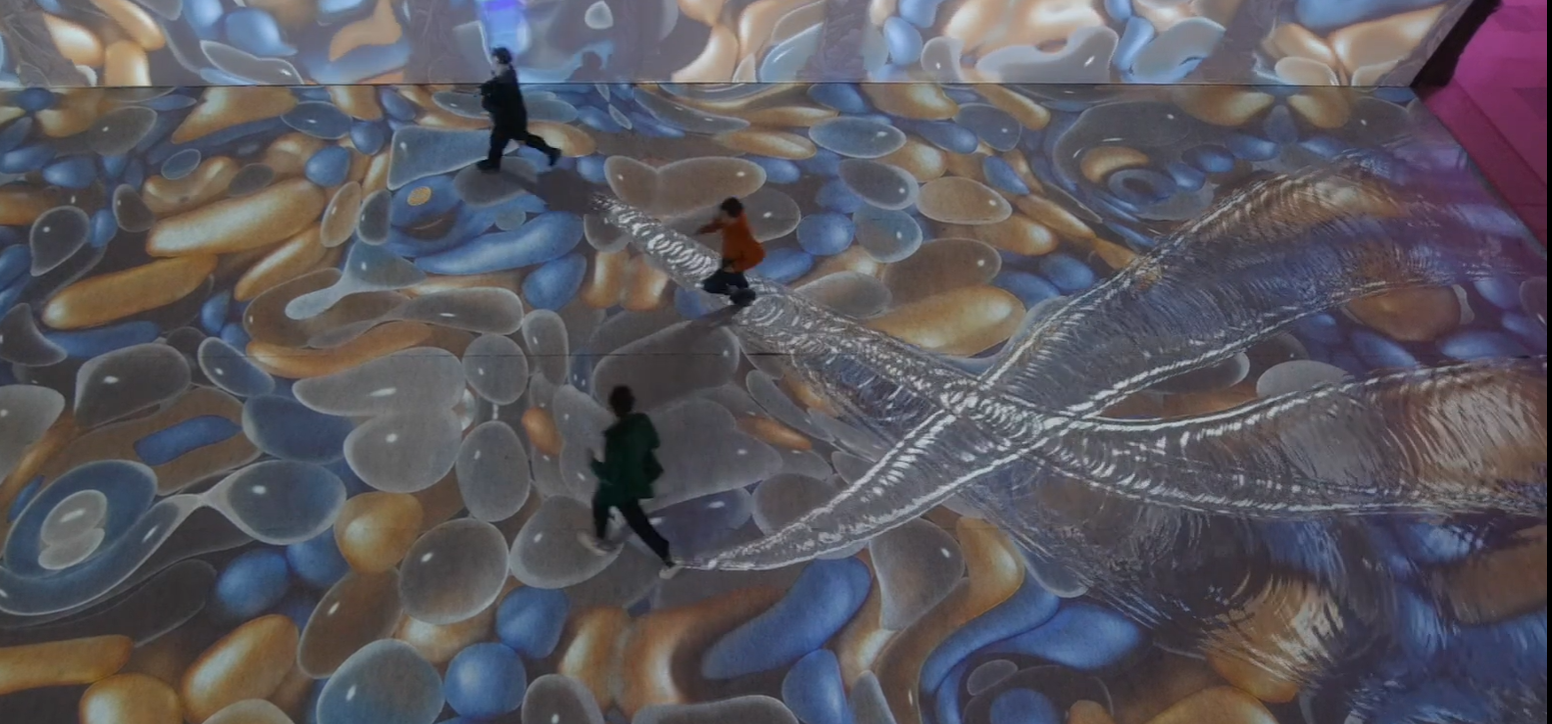

The smoothness and prediction tuning capabilities enabled the possibility of having people and children running throughout the entire space, as shown in the video.
Content

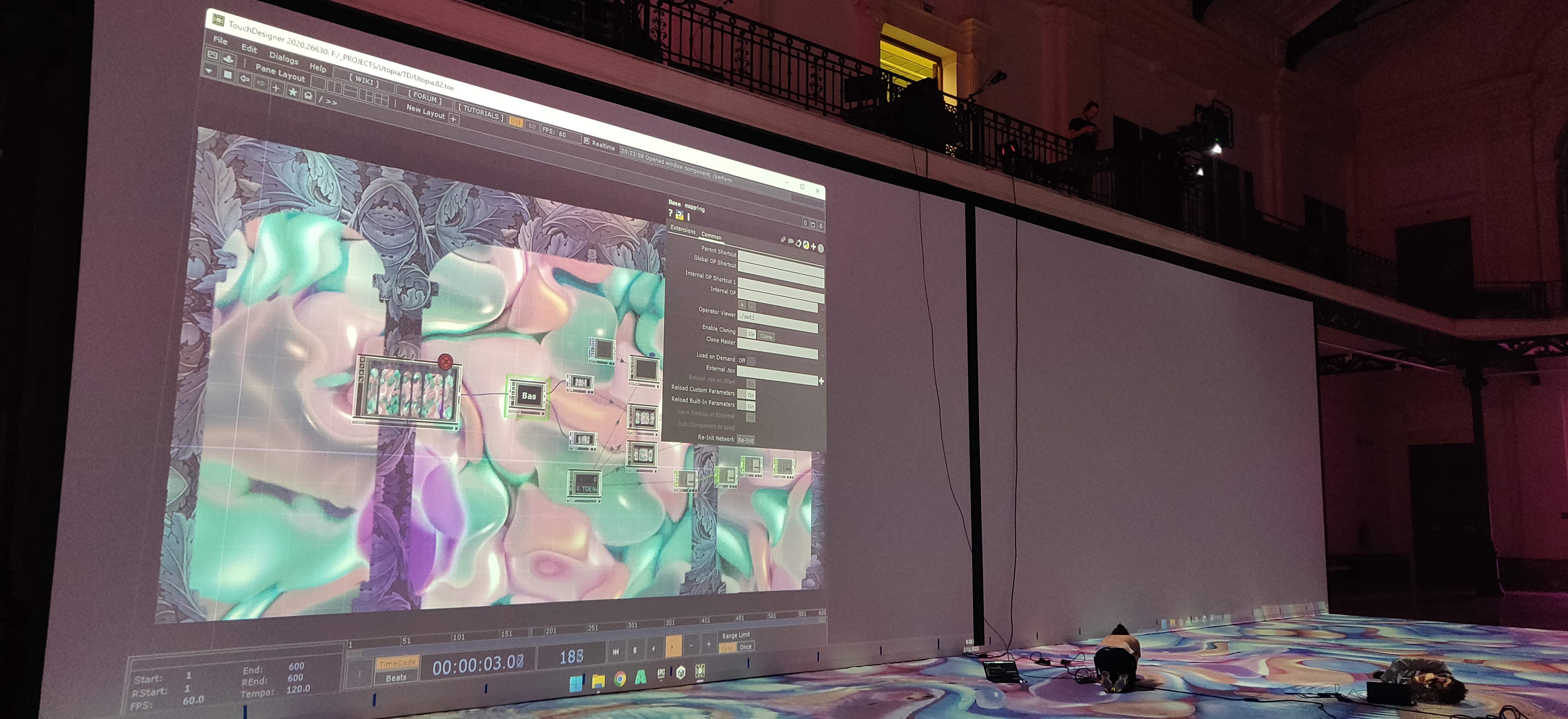

A last-minute decision was made to use Unity for the floor and TouchDesigner for the wall, due to the high number of projects and the availability of the team at Théoriz studio.
Augmenta allowed for a hassle-free switch between the two tools through its Unity and TouchDesigner plugins, making the last-minute decision seamless. Vioso also contributed to the ease of integration with its Unity and TouchDesigner plugins for warping and blending, which were simple to use.

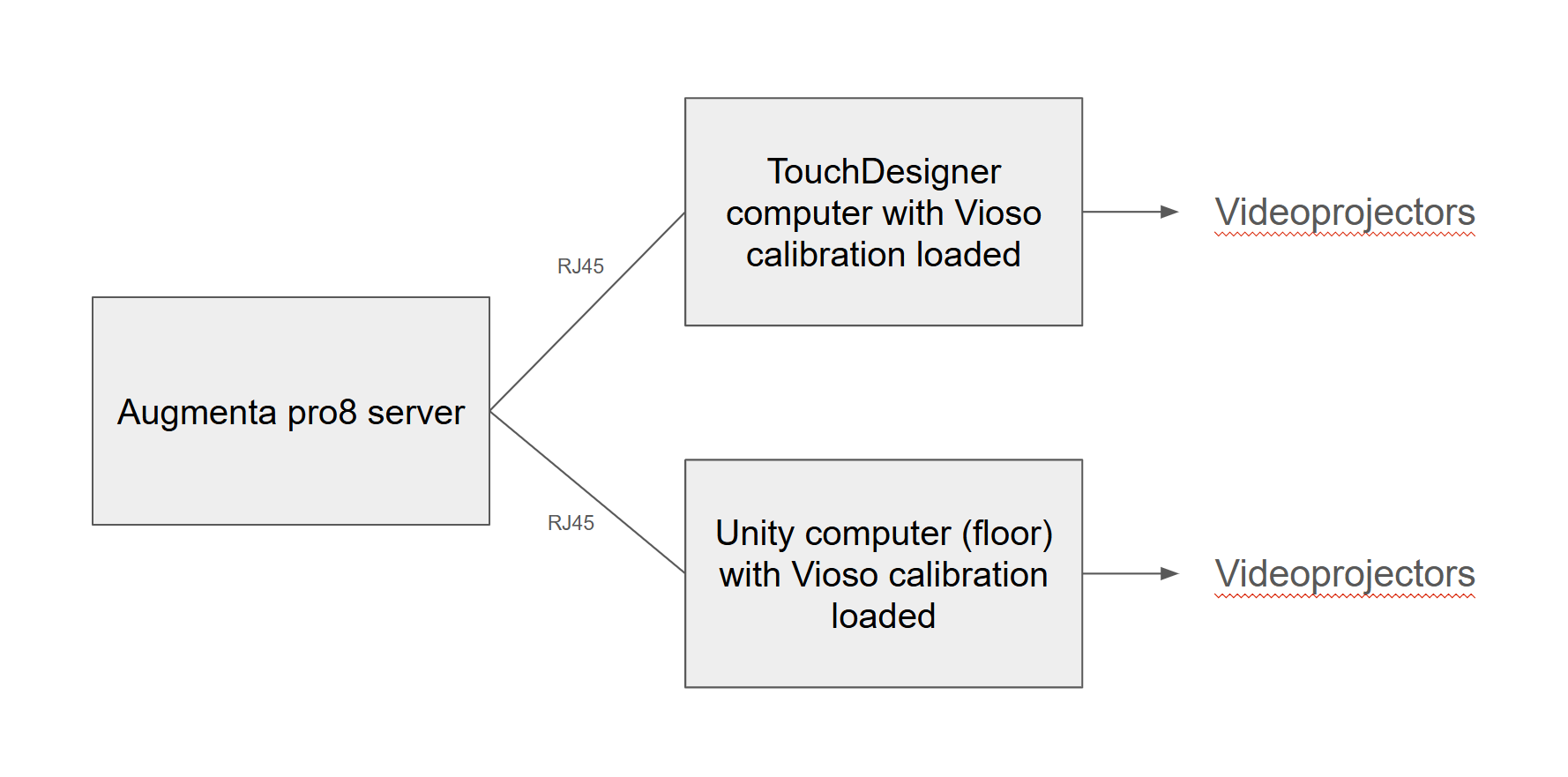

The technical setup was quite simple, allowing for a quick installation. Only three servers were needed (Augmenta + TouchDesigner + Unity), connected together with a standard switch.
Interactive design
Two clever concepts were applied here :
- Using data from people tracking to make the wall interactive (without adding sensors).

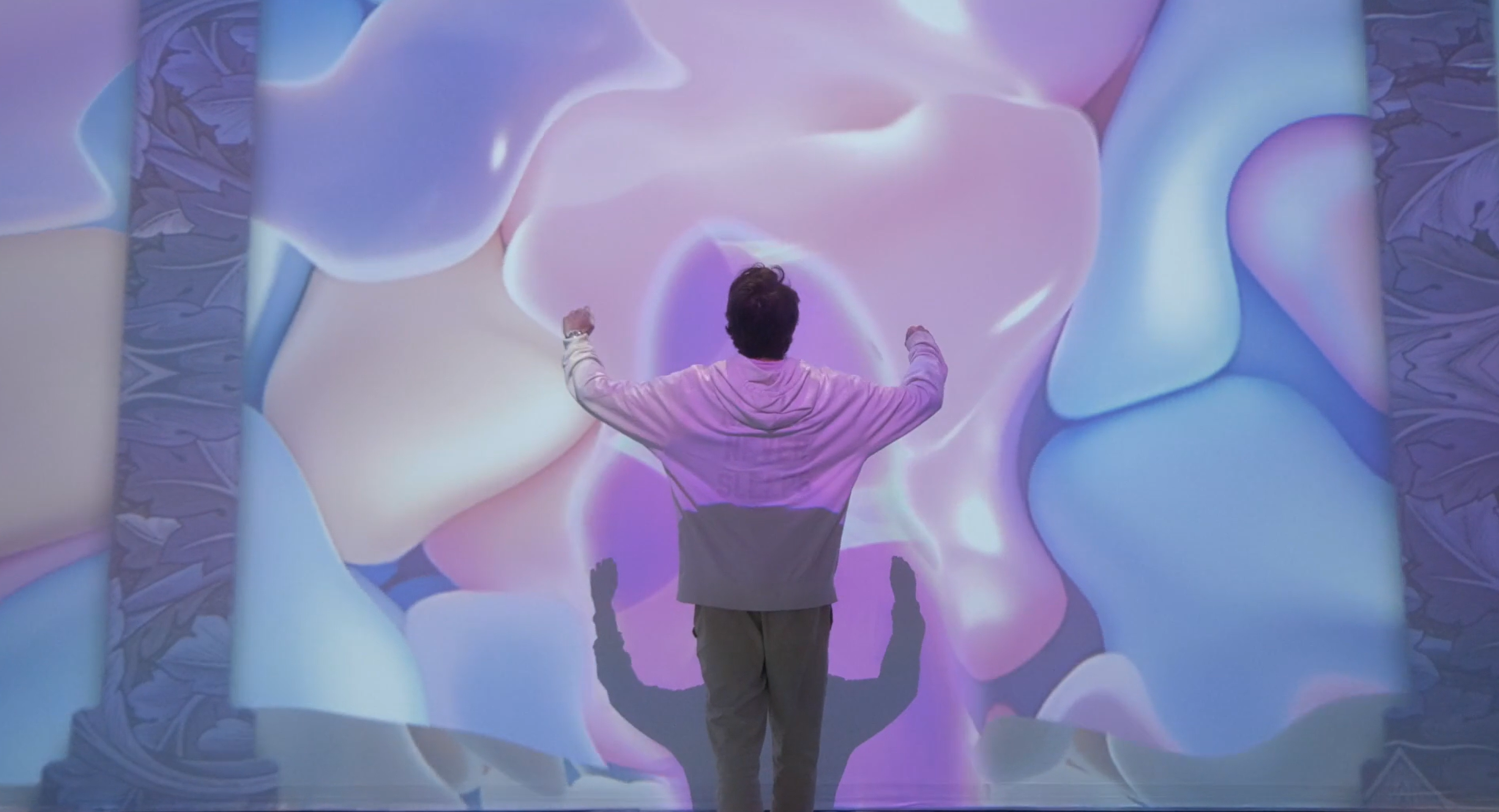

Budget constraints don’t always allow for sensors on both the wall and floor. In this case, the height data of people, collected by sensors tracking the floor, was used to create visual portals when people approached the walls. Based on the people’s position (near the wall) and their height, these visual portals were generated on the wall.

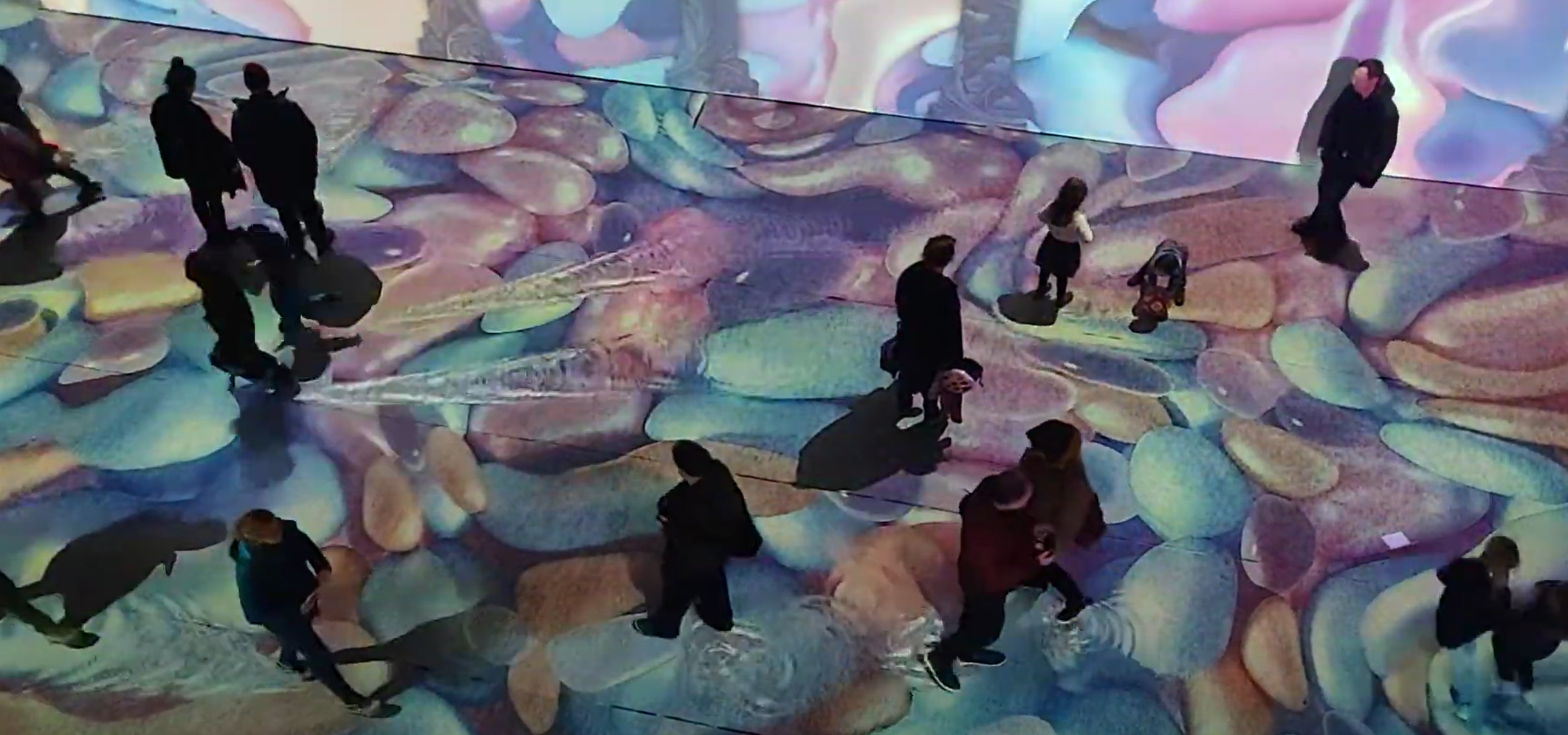

- Adapting the visual effects on the floor depending on the number of people.
The "number of people" data provided by Augmenta was used to create a floor effect that appeared larger and took up more space visually when there were only a few people in the space. As the crowd density increased, the visual effect became smaller. The result was that the floor interaction remained engaging and playful, regardless of the number of people in the space.
Conclusion
In this project, Augmenta facilitated :
- A very quick setup for a 200m² interactive space
- An effortless switch, even with last-minute content decisions
- The ability for the content team to simulate everything beforehand
- A robust system that can handle 200+ people simultaneously, including running children
