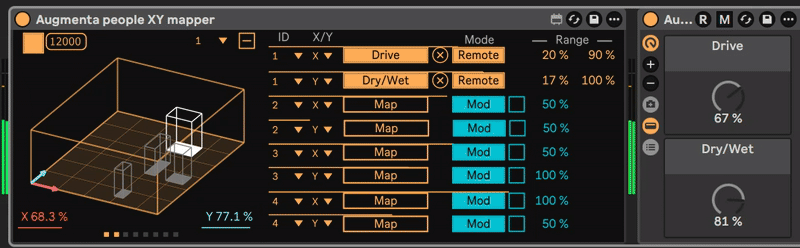

An Ableton Live plugin to map slider zones to Ableton live parameters.
This plugin is currently in beta and active development, expect frequent updates
Download link :
Requirement
Ableton Live suite
Augmenta 1.5+
How to use
There will soon be an Ableton live preset, meanwhile in Augmenta :

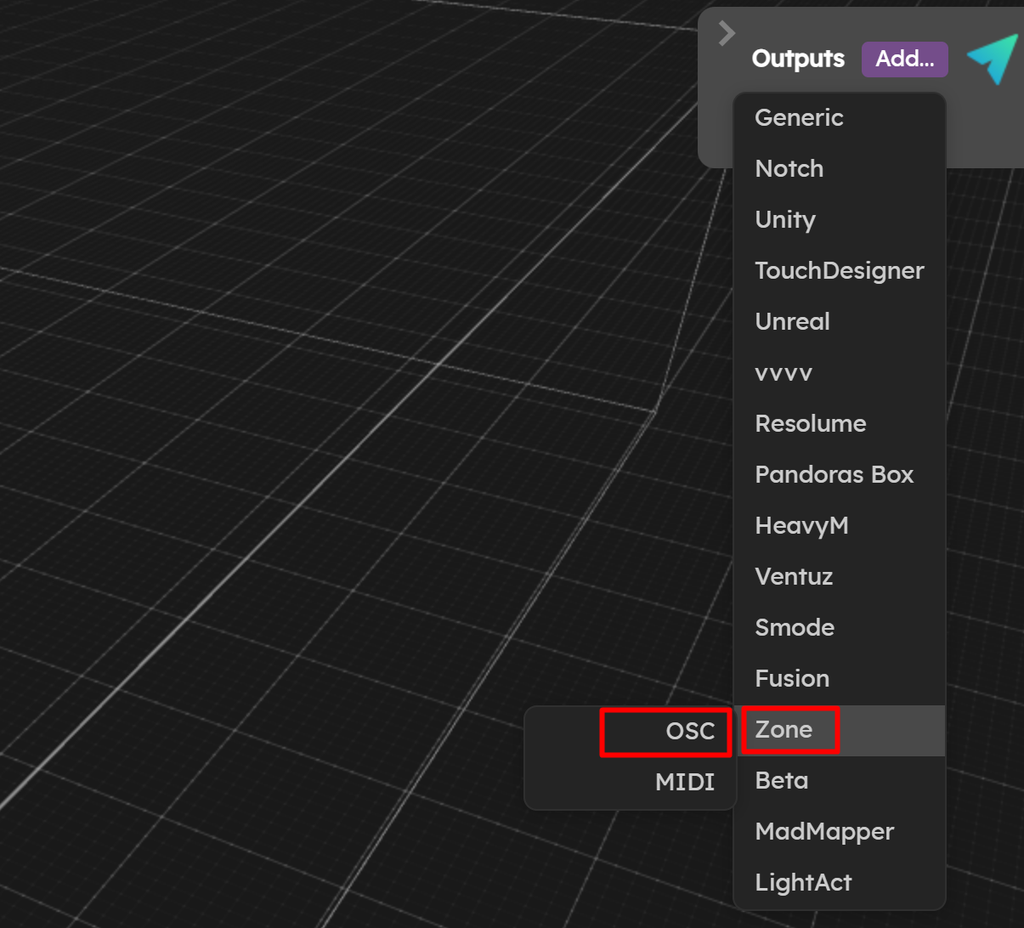

In the output panel, add a zone OSC output

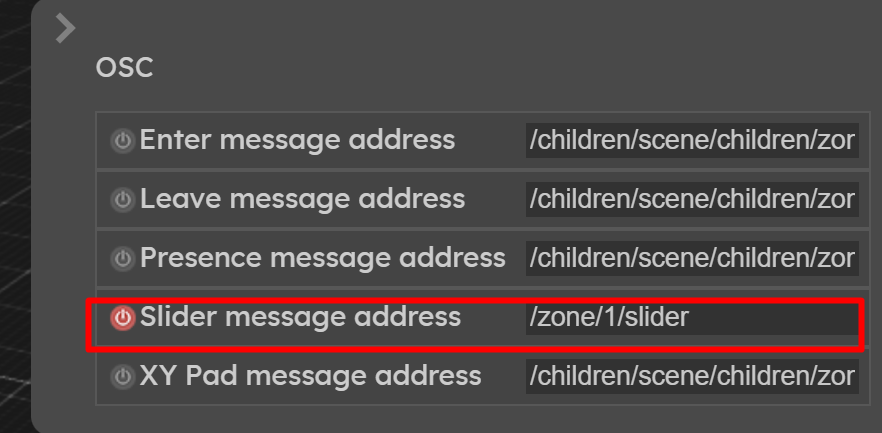

Activate Slider message address and check that it’s
/zone/1/slider for zone 1Controls

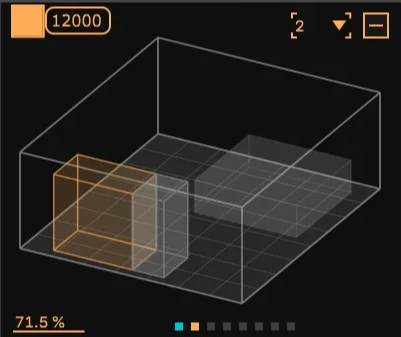

3D control
click : Rotate
double click : Reset view
shift + click : Move
ctrl + click : Zoom in/out
Input
Choose the ID of the zone
Mapping
Map : When Map is turned on, the next Live parameter clicked on will be selected as a target and the menus will be modified accordingly. For perfect sync, place this device in the chain before the modulated device. In other cases, a small latency might be introduced.
This button toggles between Modulation (default) and Remote Control of a mapped parameter. When a parameter is being modulated, its base value can still be adjusted with the mouse. When a parameter is remote controlled, other interactions are disabled.
Defines the range of the modulation value generated.
Sets the polarity of the modulation. In Bipolar mode the modulation is centered around the base parameter value. In Unipolar mode, modulation is added to the parameter value.
Define the depth of the modulation value.
Credits
Designed & developed in collaboration with Romain Constant
