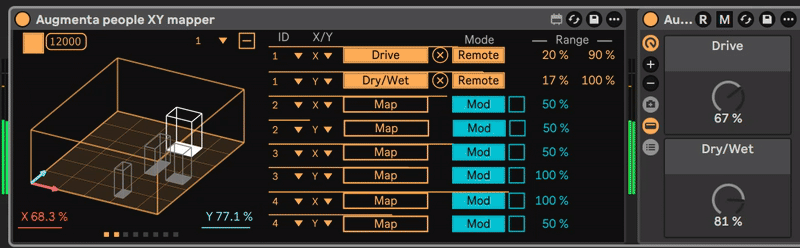

An Ableton Live plugin to map people position in space to Ableton live parameters.
Download link : Augmenta People XY mapper (Maxforlive.com)
Requirement
Ableton Live suite
Augmenta 1.5+
How to use
There will soon be an Ableton live preset, meanwhile in Augmenta :

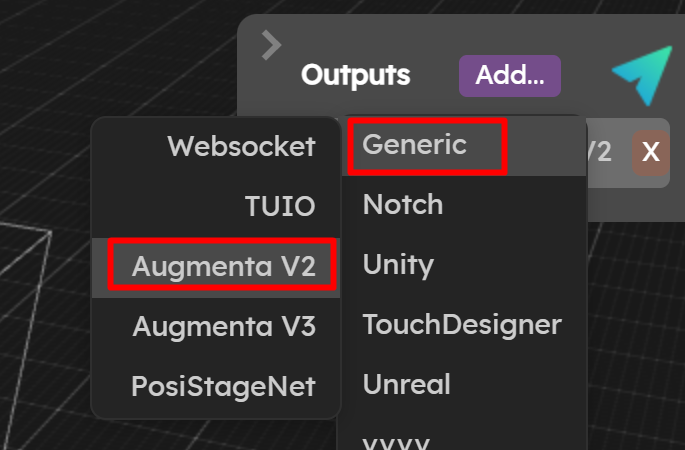

Add an OSCv2 output (Generic → AugmentaV2)

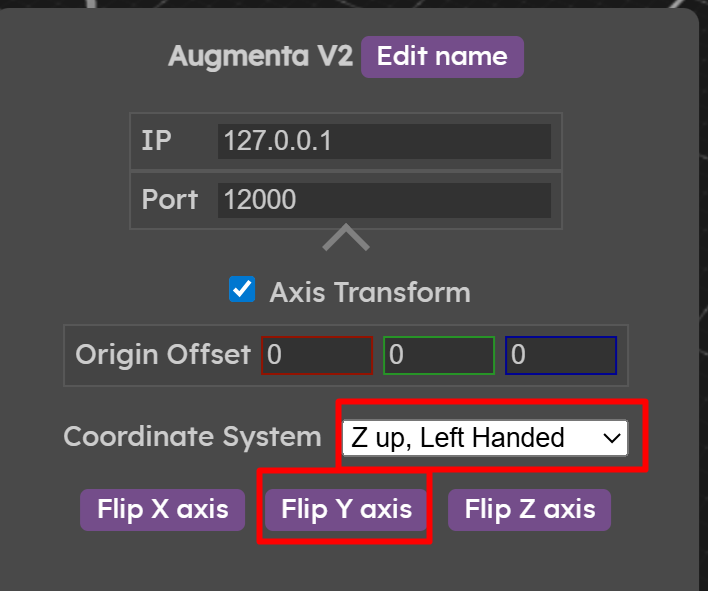

Add these options
- Z up, Left Handed
- flip Y axis
Controls

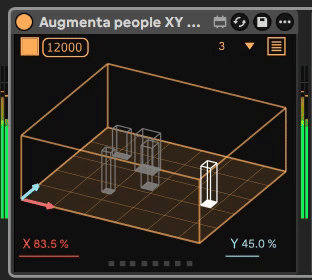

3D control
click : Rotate
double click : Reset view
shift + click : Move
ctrl + click : Zoom in/out
Input
Choose the person number and between X and Y position
Mapping
Map : When Map is turned on, the next Live parameter clicked on will be selected as a target and the menus will be modified accordingly. For perfect sync, place this device in the chain before the modulated device. In other cases, a small latency might be introduced.
Mod : The mapped parameter can still be adjusted by the user.
Remote : The mapped parameter is a direct control takeover, the user cannot adjust it while it’s mapped.
Defines the range of the value mapping.
Sets the polarity of the modulation.
Bipolar mode : The modulation is centered around the parameter value.
Unipolar mode : The modulation is added to the parameter value.
Define the depth of the modulation value.
Credits
Designed & developed in collaboration with Romain Constant
