TouchDesigner plugin (beta)

👋

New Augmenta native plugin for TouchDesigner supporting

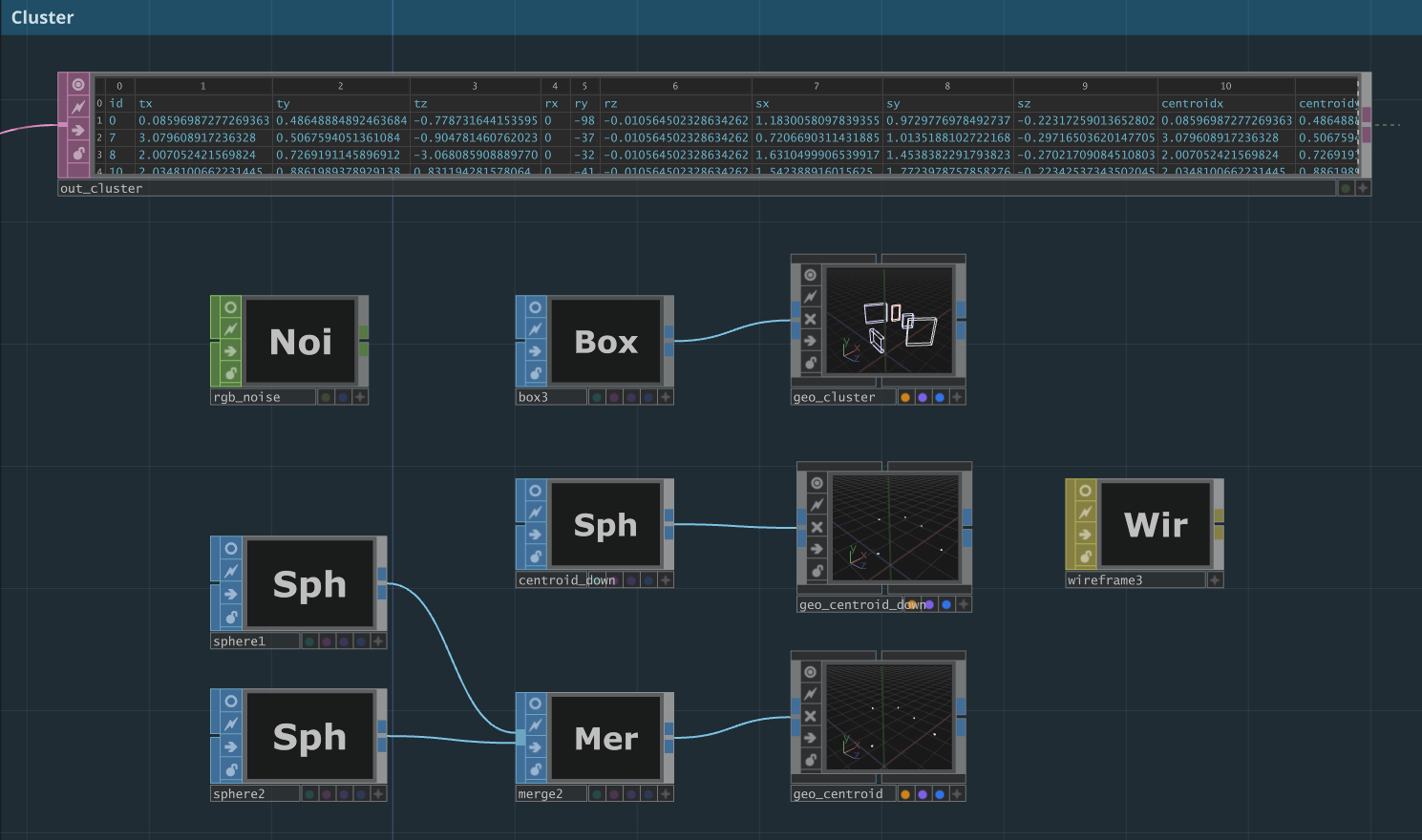

Tracking feature (ID, position, boundingbox, speed, etc.)

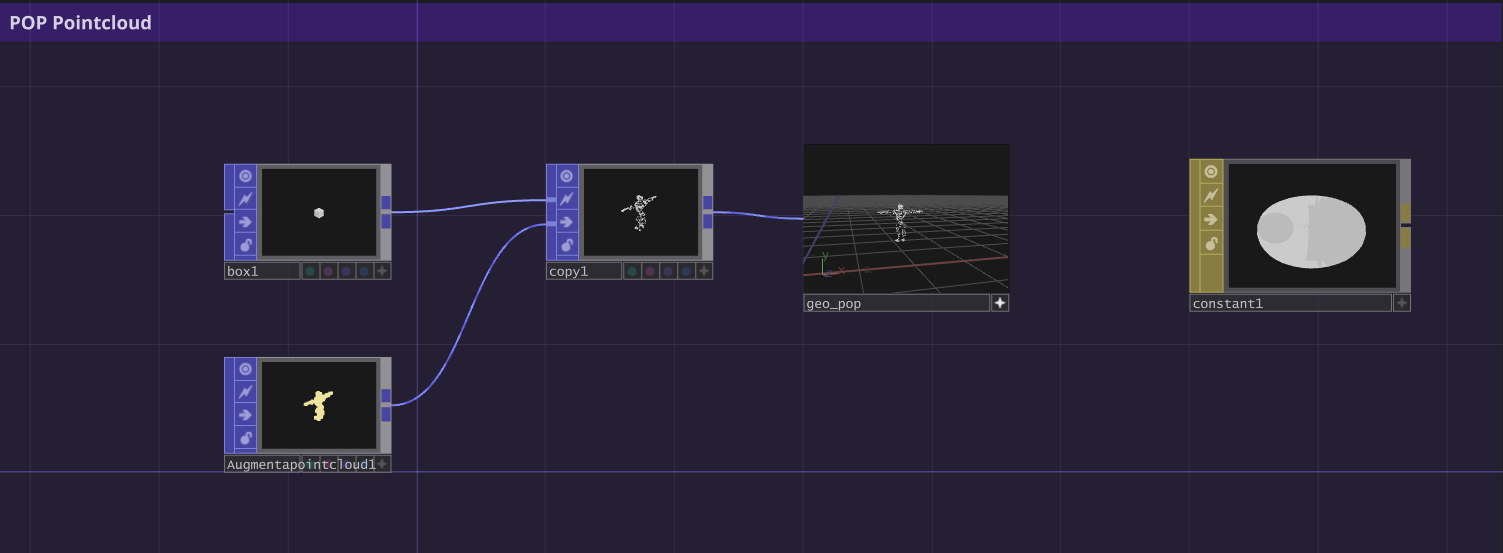

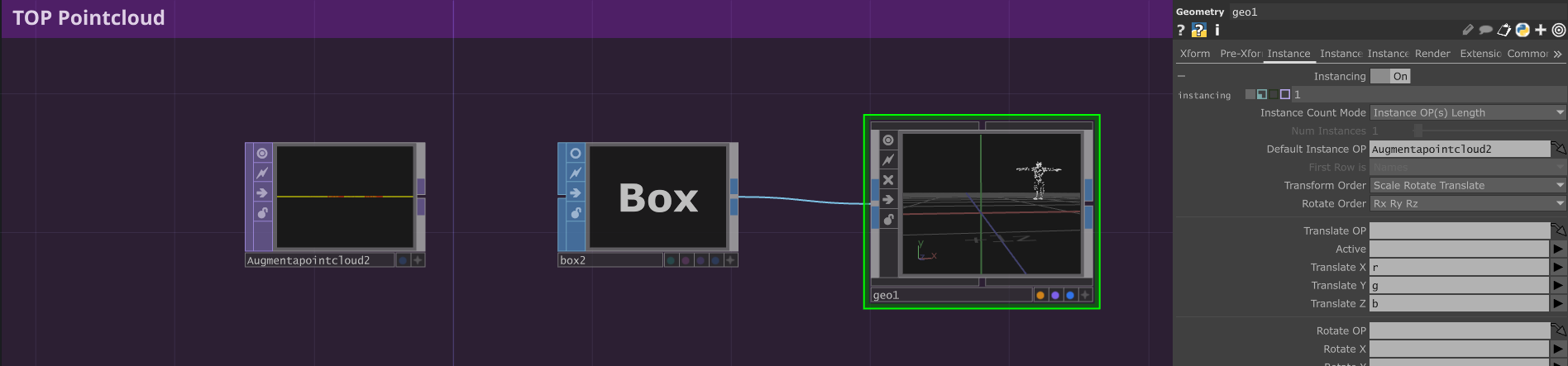

Point cloud streaming

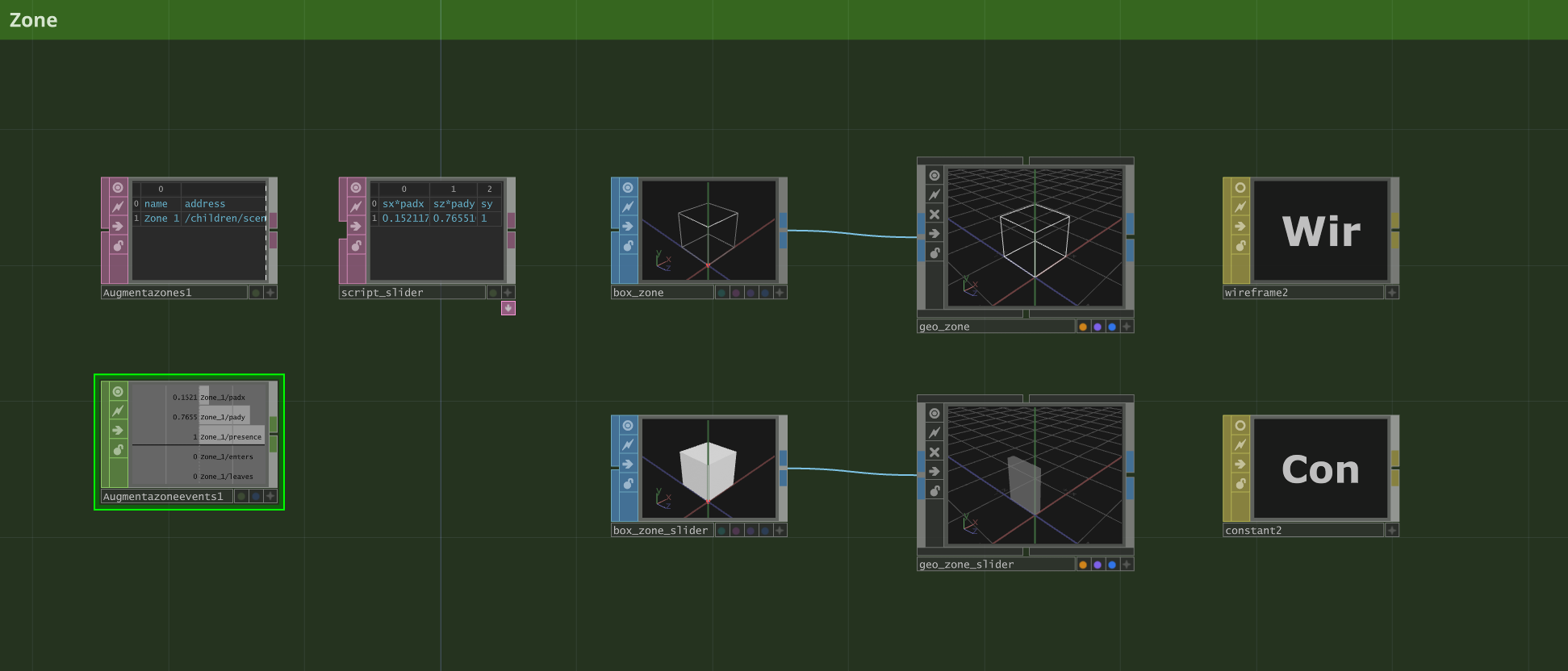

Zone triggering and control

⚠️ This plugin is currently in beta and provided as it is, please send feedback or contact us !

Download the plugin + example : Augmenta-TouchDesigner-plugin/releases/latest

Requirement

Compatible with Augmenta version 1.5b or newer Only Windows support currently

Install the plugin

Copy the 3 folders inside Plugins Folder to Derivative plugin folder located in : C:\\Users\\XXX\\Documents\\Derivative\\Plugins.

Launch demoscene.toe, accept the 3 prompt that pop up when launching TD. This corresponds to the 3 new nodes you will get access.

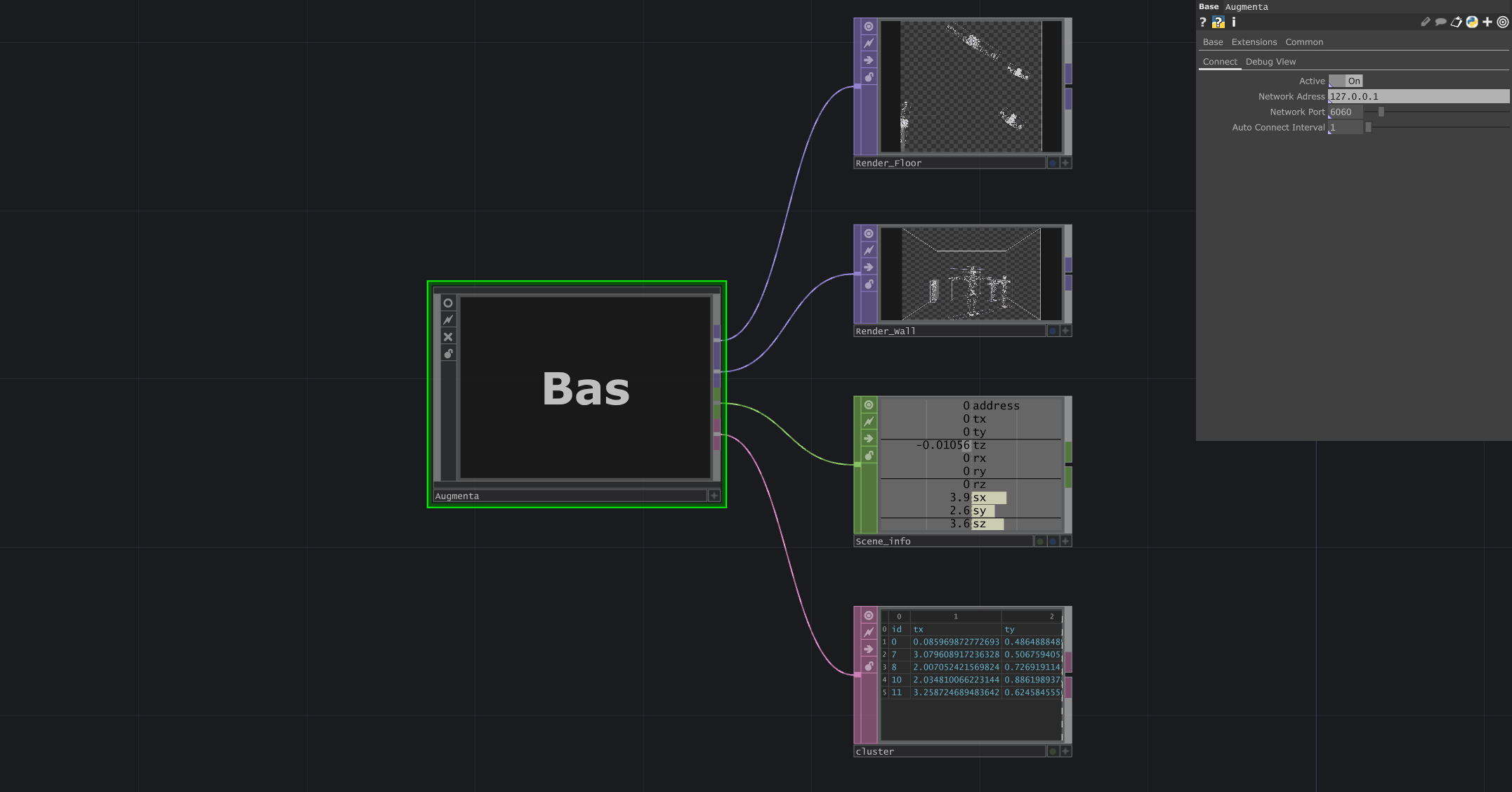

Then, enter the augmenta server ip adress and port in the augmentaDAT.

And ride on !

You can copy Augmenta.tox to your palette C:\\Users\\XXX\\Documents\\Derivative\\Palette to have access to Augmenta base in all your projects.

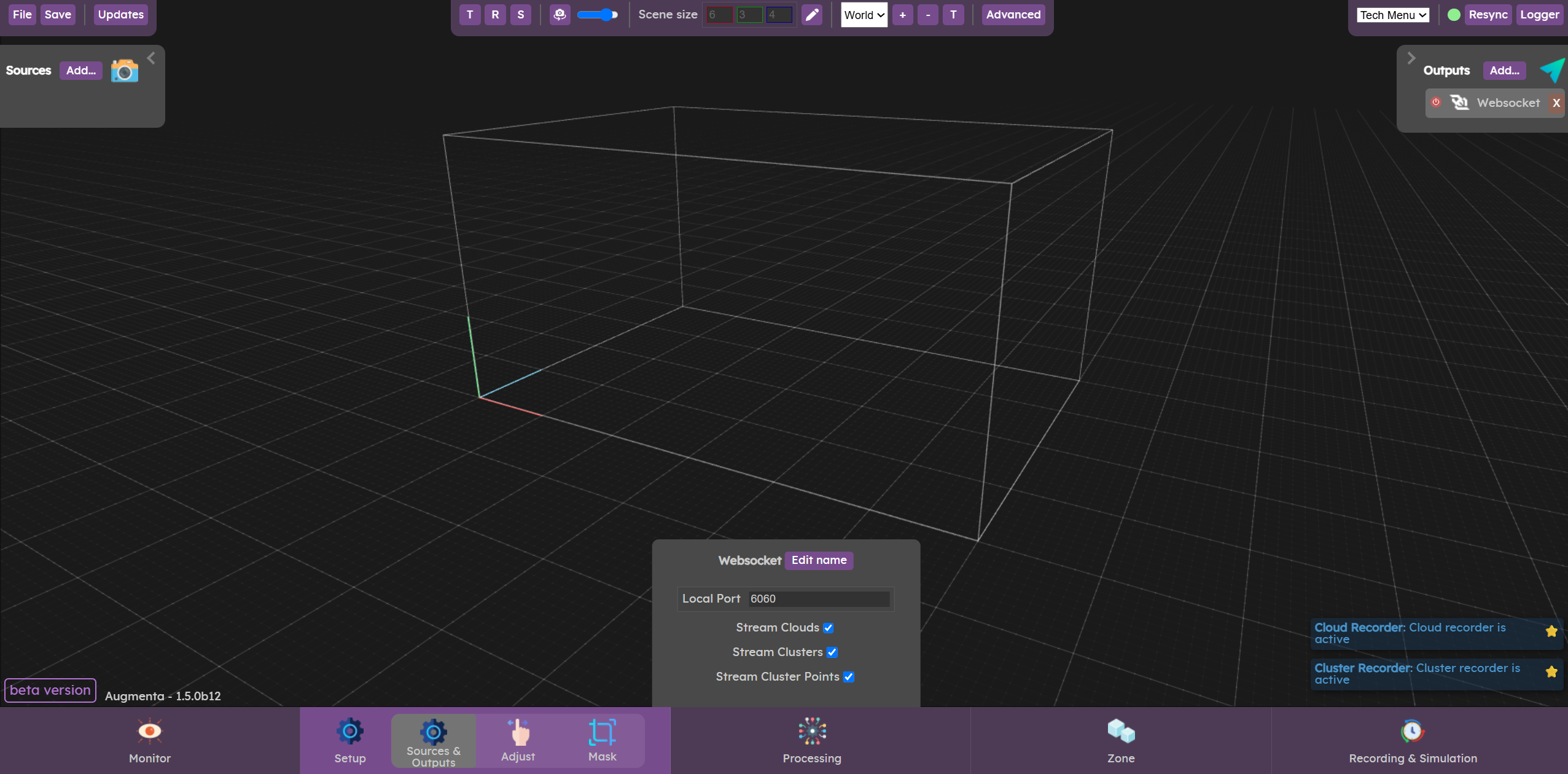

Known issue : If you see your node blinking, ensure to check send all at frame end in your augmenta websocket node (on augmenta server side - Augmenta Backend GUI).

Windows

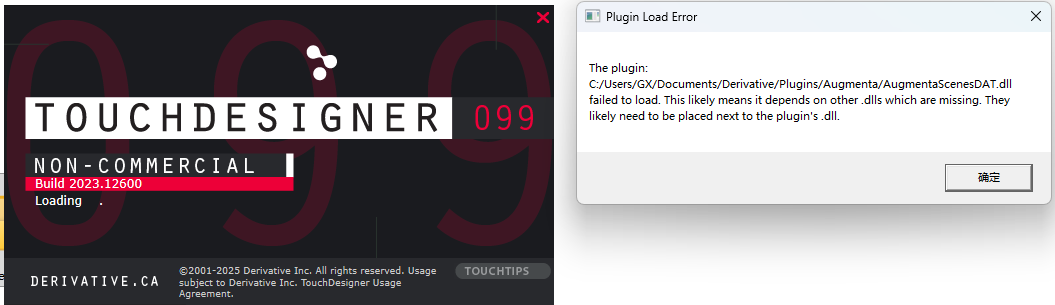

Install the Microsoft Visual C++ Redistributable packages 2022 : https://learn.microsoft.com/en-us/cpp/windows/latest-supported-vc-redist?view=msvc-170

Download the version according to your architecture.
